Question 1 of 92
A company uses Azure Site Recovery (ASR) for a VMWare environment that includes the following virtual machines (VMs):

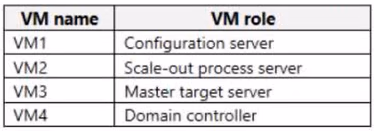

Exam AZ-720: Question 1 - Image 1
The company reports that they are unable to configure all of the servers for replication.
You need to evaluate the servers and server roles to determine which servers can be protected.
Which server can you protect by using ASR?
    Correct Answer: D

    In Azure Site Recovery (ASR) for a VMWare environment, typically configuration servers, scale-out process servers, and master target servers are part of the ASR infrastructure setup and thus are not themselves protected by ASR as they serve as means to protect other workloads. The domain controller (VM4) is an actual workload that can be protected by ASR. Therefore, among the listed VMs, VM4 is the one that can be protected using ASR.

Question 2 of 92
A company uses Azure Site Recovery (ASR) to replicate and recover Azure virtual machines (VM) between Azure regions.
An administrator receives the following warning from ASR about a VM that uses P10 disks: Data change rate beyond supported limits
You add OS Disk Write Bytes/Sec and Data Disk Write Bytes/Sec to the list of metrics for monitoring. You discover that the VM consistently has a data churn of greater than 8 MB/s but less than 10 MB/s.
You need to resolve the issue.
What should you do?
    Correct Answer: B

    The issue arises due to the high data churn rate of the VM, which exceeds the supported limits for replication. Upgrading the target storage disk will help handle the increased data churn. P10 disks may not support the current data change rate, and upgrading to a higher-tier disk that allows for greater data throughput will ensure efficient replication and resolution of the warning.

Question 3 of 92
A company has an on-premises application server that runs in System Center Virtual Machine Manager (SCVMM). The company configures Azure Site Recovery.
An administrator at the company reports that they receive an error message. The error message indicates that there are replication issues.
You need to troubleshoot the issue.
Which log should you review?
    Correct Answer: A

    To troubleshoot replication issues in an on-premises application server that runs in System Center Virtual Machine Manager (SCVMM) configured with Azure Site Recovery, the most relevant log to review would be the SCVMM debug log. This log will provide detailed insights into the operations and issues within the SCVMM environment, which is crucial for diagnosing and resolving replication issues specific to the configuration and management of VMs in SCVMM.

Question 4 of 92
HOTSPOT -
A company uses Azure Backup Agent to back up specific files and folders from an on-premises virtual machine (VM).
An administrator reports that the backup job is transferring files slowly. You determine that the backup job is verifying changes in directories by scanning the entire volume.
You need to determine the state of the backup job.
In which state will the backups occur? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

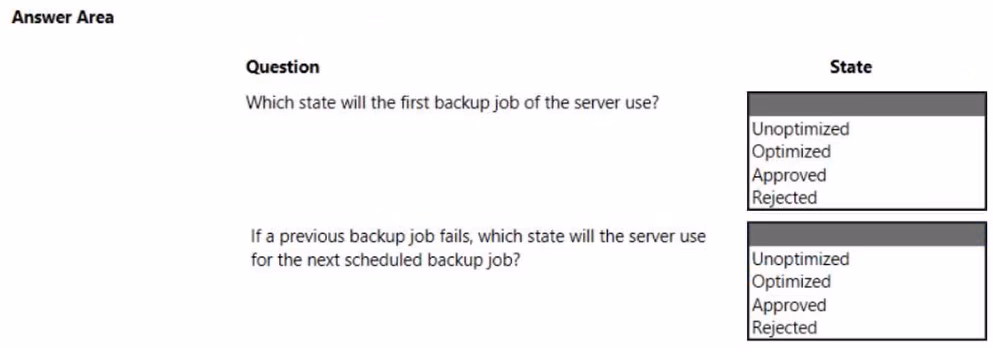

Exam AZ-720: Question 4 - Image 1
    Correct Answer:
    Exam AZ-720: Question 4 - Image 2
Question 5 of 92
A company migrates an on-premises Windows virtual machine (VM) to Azure. An administrator enables backups for the VM by using the Azure portal.
The company reports that the Azure VM backup job is failing.
You need to troubleshoot the issue.
What should you do?
    Correct Answer: A
