Administering Visual Studio Team Foundation Server 2012

Here you have the best Microsoft 70-496 practice exam questions

You have 97 total questions to study from
Each page has 5 questions, making a total of 20 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on November 1, 2025
This site is not affiliated with or endorsed by Microsoft.

Question 1 of 97

DRAG DROP -
Your network environment includes a Microsoft Visual Studio Team Foundation Server (TFS) 2012 server with one project collection and multiple build machines.
A development team installs and configures a build service on a new build machine.
You need to be able to validate that the installation and configuration meets your organizations requirements and follows its best practices.
At which service would you perform the following tasks? (To answer, drag the appropriate build component to the correct standards- checking task in the answer area. Each build component may be used once, more than once, or not at all.)
Select and Place:

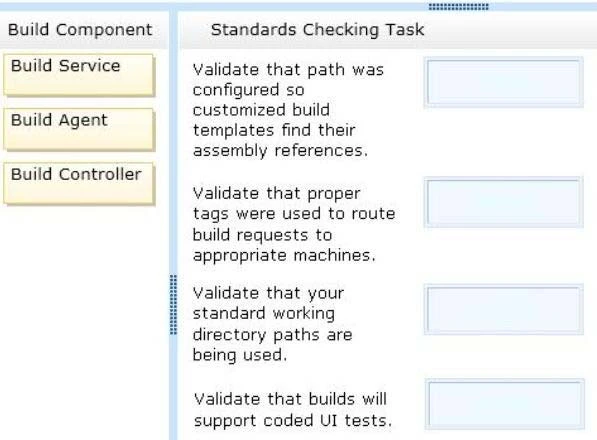

Exam 70-496: Question 1 - Image 1

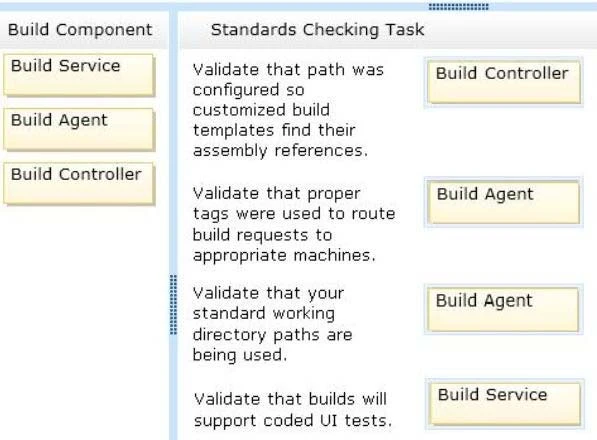

Correct Answer:

Question 2 of 97

Your network environment includes a Microsoft Visual Studio Team Foundation Server (TFS) 2012 server named TFS1. SharePoint and Reporting Services components are also installed and configured for TFS on the same server.
You need to be able to access the SharePoint Project Portal from the TFS server by using the following URL: http: //tfs.fabrikam.com.
What should you do?

From the TFS Administration Console, edit the SharePoint Web Application URL.

From Visual Studio Team Explorer, edit the portal settings.

Run the TFSC0nfIg.exe SharePointportal command.

From the SharePoint Central Administration website, configure the Alternate Access Mappings.

Correct Answer: D

Question 3 of 97

Your network environment includes a Team Foundation Server (TFS) 2012 named TFS1 that contains two project collections named PC1 and PC2. A build server named Bi is configured with a build controller named C1 and an agent named A1 that runs build definitions created in Pd.
A development team wants to create a gated check-in build definition on PC2.
You need to perform a supported infrastructure enhancement to run PC2 build definitions.
What should you do?

• Add a new build server (B2). • On the B2 build server, migrate controller C1 and install a new controller (C2) that connects to the PC2 project collection. • On the Bi build server, configure a second build agent (A2) that uses the C2 controller.

• Add a new build server (B2). • On the B2 build server, install a build controller (C2) that connects to the PC2 project collection. • On the B2 build server, configure a second build agent (A2) that uses the C2 controller.

• On the Bi build server, configure the C1 controller to connect to project collections PC1 and PC2. • On the Bi build server, update the Al agent to use controllers C1 and C2.

• On the Bi build server, configure the C1 controller to connect to project collections PC1 and PC2.

Correct Answer: B

Question 4 of 97

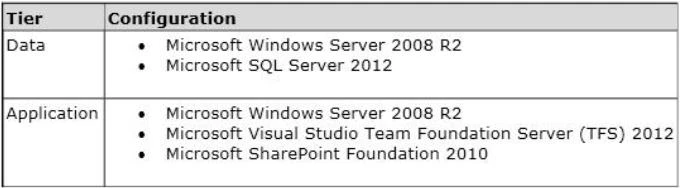

Your network environment is configured according to the following table:
Exam 70-496: Question 4 - Image 1

Your TFS environment is configured with the following URLs:
✑ TFS: http: //tfssrv: 8080/tfs
✑ Reporting: http: //tfssrv/reports
✑ SharePoint: http: //tfssrv/sites
You need to configure only the TFS URL to be the following fully qualified domain name (FQDN): http: //tfs.contoso.com.
You log on to the application-tier server. What should you do next?

In the IIS Manager, select TFS Website and configure the host name with the friendly name.

In the TFS Administration Console, go to the Change URIs dialog box and enter the friendly URL in the Notification URL text box.

In the IIS Manager, select TFS Website and configure the server URL with the friendly name.

In the TFS Administration Console, go to the Change URIs dialog box and enter the friendly URL in the Server URL text box.

Correct Answer: B

Question 5 of 97

Your network environment includes a Microsoft Visual Studio Team Foundation Server (TFS) 2012 server and a test environment that is based on non-Hyper-V- based virtualized machines.
You need to be able to run tests on all the test machines.
Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

Install System Center Virtual Machine Manager (SCVMM) 2010.

Use Microsoft Test Manager (MTM) to create a new standard environment.

Manually install the Agents for Visual Studio 2012 on the virtualization server.

From Microsoft Test Manager (MTM), create a new System Center Virtual Machine Manager- (SCVMM-) based environment and select the virtual machines hosted on the non-Hyper-V-based virtualization server.

Install a Visual Studio 2012 test controller.

Correct Answer: B, E
