CCNA Collaboration Implementing Cisco Collaboration Devices (CICD)

Here you have the best Cisco 210-060 practice exam questions

You have 413 total questions to study from
Each page has 5 questions, making a total of 83 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on December 16, 2025
This site is not affiliated with or endorsed by Cisco.

Question 1 of 413

Which two technologies comprise a Cisco Presence deployment? (Choose two.)

Cisco Unified Presence Server

Cisco Unity Connection

Cisco Unified Communications Manager

Active Directory

Cisco Unified Border Element

Cisco Expressway

Correct Answer: A, C

Cisco Presence deployment consists of the Cisco Unified Presence Server and Cisco Unified Communications Manager. The Cisco Unified Presence Server is vital for the presence service, while Cisco Unified Communications Manager provides the call control platform required for the integration and functionality of the presence services.

Question 2 of 413

Which three network elements are crucial when deploying VoIP devices? (Choose three.)

Question 3 of 413

Use the router console to view the configuration and answer the question.

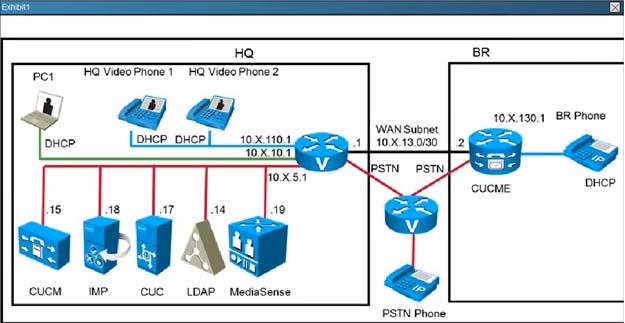

Exam 210-060: Question 3 - Image 1

When a call is placed from the Branch Router phone to the PSTN number of 914085551212, the call is failing. What dial-peer is supposed to be used and why is the call failing? Select 2 (two)

dial-peer voice 910 pots

dial-peer voice 9 pots

dial-peer voice 9001 voip

destination pattern is incorrect

prefix is missing from the dial-peer

the port assignment is incorrect in the dial-peer

the port number is missing in the dial-peer

Correct Answer: B, F

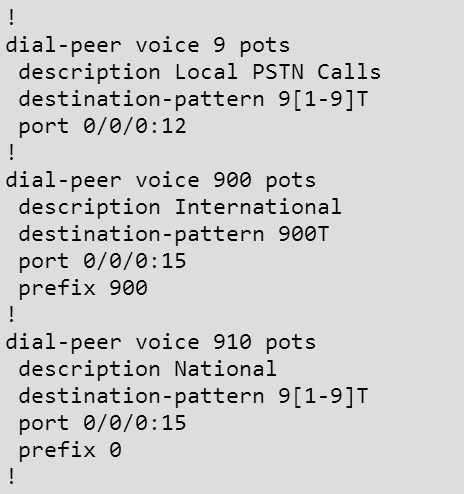

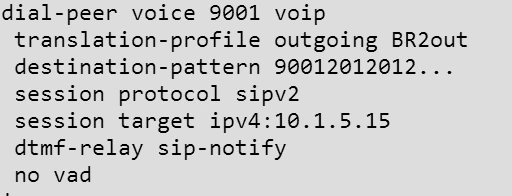

The dial 9, 910, and 9001 dial peer configurations are shown below:
Exam 210-060: Question 3 - Image 3

Here we see that dial peer 9 and 910 match the same destination pattern, but 9 will be used first. However, the port used should be 0/0/0:15 not 0/0/0:12.

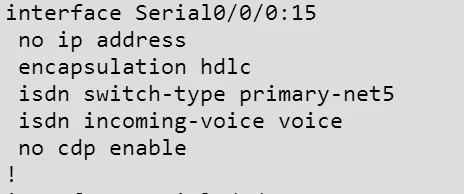

Exam 210-060: Question 3 - Image 5

Question 4 of 413

Use the router console to view the configuration and answer the question.
Exam 210-060: Question 4 - Image 1

Emergency calls from a Branch router phone is failing. From the router configuration information provided, why is this call failing?

The dial-peer port assignment is incorrect

the digit string prefix is missing

The destination pattern is incorrect

digit stripping needs to be performed C

Correct Answer:

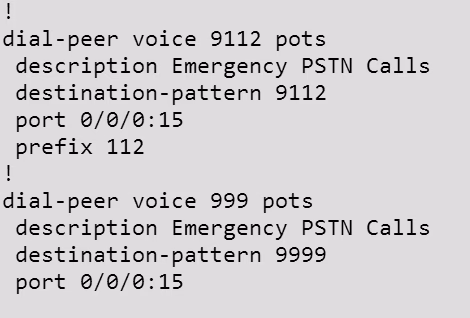

The emergency dial peer configuration is shown below from the Branch routers:
Exam 210-060: Question 4 - Image 3

Here we can see that 911 does not actually match the configured destination patterns. Explanation

Question 5 of 413

Use the router console to view the configuration and answer the question.

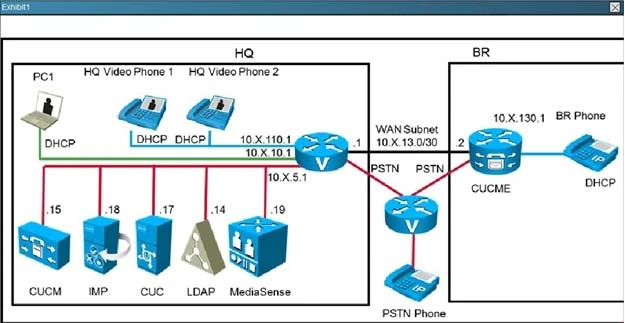

Exam 210-060: Question 5 - Image 1

International calls are also failing. Using the router configuration supplied, why are international calls failing?

Prefix should be 00

The character "T" cannot be used in a Pots dial pattern

The port should be 0/0/0:12

The destination pattern is missing a "0" A

Correct Answer:

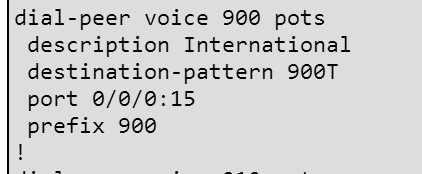

The International dial peer configuration is shown below:
Exam 210-060: Question 5 - Image 3

The prefix is incorrectly set to 900, not 00. Explanation
