Implementing and Operating Cisco Data Center Core Technologies (DCCOR)

Here you have the best Cisco 350-601 practice exam questions

  • You have 526 total questions to study from
  • Each page has 5 questions, making a total of 106 pages
  • You can navigate through the pages using the buttons at the bottom
  • This questions were last updated on October 11, 2025
  • This site is not affiliated with or endorsed by Cisco.
Question 1 of 526

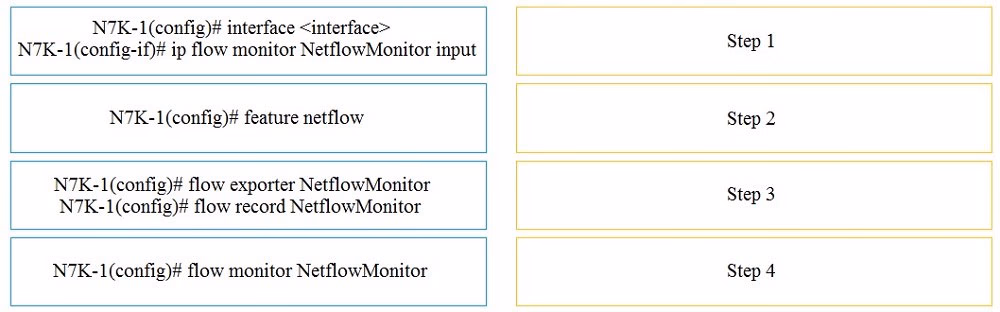

DRAG DROP -
An engineer is implementing NetFlow on a Cisco Nexus 7000 Series Switch.
Drag and drop the NetFlow commands from the left into the correct order they must be entered on the right.
Select and Place:

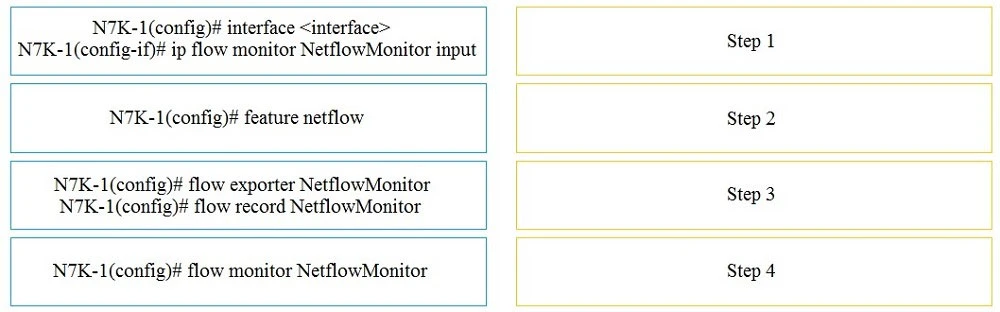

Exam 350-601: Question 1 - Image 1

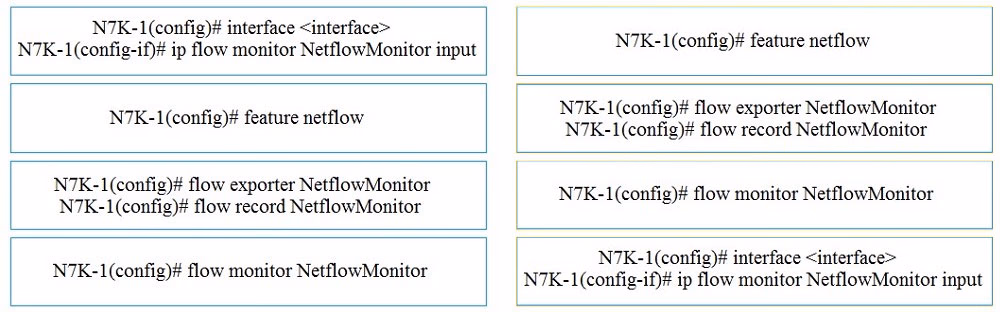

    Correct Answer:
    Reference:
    https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/112213-netflow-nexus7000-nsox-configex.html Exam 350-601: Question 1 - Image 2
Question 2 of 526
Which virtual MAC address is the default for HSRP version 2 group 10?
    Correct Answer: D

    The default virtual MAC address for HSRP (Hot Standby Router Protocol) version 2 uses the format 0000.0C9F.F000, where the last part of the MAC address corresponds to the hex representation of the group number. For group 10, the group number in hex is 10. Converting 10 to hexadecimal gives 'A', therefore, the correct default MAC address should end with F010 (0000.0C9F.F010).

Question 3 of 526

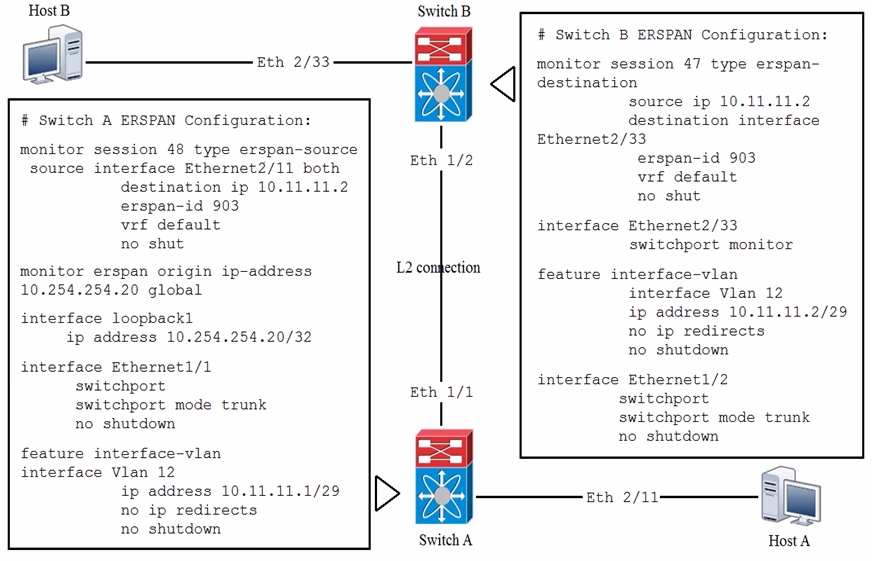

Refer to the exhibit.
Exam 350-601: Question 3 - Image 1
Which statement about the ERSPAN configuration in this environment is true?
    Correct Answer: D

    Host A is configured as the source of the ERSPAN spanned traffic with the `monitor session 48 type erspan-source` command, while Host B is configured as the traffic analyzer with the `monitor session 47 type erspan-destination` command. The ERSPAN ID matches on both switches, which is necessary for proper communication. The ERSPAN ID (903) must match on both ends for the ERSPAN traffic to be correctly sent and received, but the monitor session IDs (48 and 47) are only locally significant and do not need to match. Therefore, Host A is the source and Host B is the analyzer.

Question 4 of 526

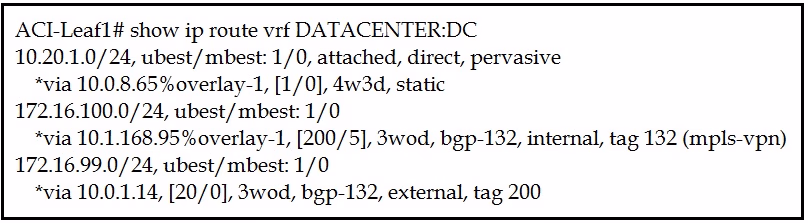

Refer to the exhibit.
Exam 350-601: Question 4 - Image 1
Which two statements about the routing table of the leaf switch are true? (Choose two.)
    Correct Answer: A, D

    10.20.1.0/24 is a Bridge Domain (BD) subnet in ACI as indicated by the attributes 'attached, direct, pervasive', which are typical features of BD subnets in ACI. The next hop for the route 172.16.100.0/24 is 10.1.168.95, which is marked with 'mpls-vpn' and 'internal', suggesting that it is an internal route redistributed by BGP from a border leaf. Therefore, 10.1.168.95 is the TEP address of a border leaf in the ACI fabric.

Question 5 of 526
Which mroute state is created when Bidirectional PIM is deployed at a site?
    Correct Answer: A

    When Bidirectional PIM is deployed at a site, the mroute state created is *,G. This happens because in Bidirectional PIM, there are many sources and receivers talking to each other, such as in a videoconferencing scenario. Unlike PIM Sparse mode, which builds both *,G and S,G entries, Bidirectional PIM only builds the *,G entry and does not create an S,G entry. This is because Bidirectional PIM is designed to reduce the state entries in the network, making it more efficient for scenarios with multiple active sources and receivers.
