Avaya Aura Core Components Support Exam

Here you have the best Avaya 7220X practice exam questions

You have 71 total questions to study from
Each page has 5 questions, making a total of 15 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on October 27, 2025
This site is not affiliated with or endorsed by Avaya.

Question 1 of 71

Refer to the Exhibit.
Exam 7220X: Question 1 - Image 1

Which two statements are true about a call from AST 1011111 to AST 1011112? (Choose two.)

In step 3, Avaya Aura® Communication Manager (CM) sends SIP Options to 1011112 looking for a 200 ok response to check it is reachable.

In step 2, Avaya Aura® Session Manager (SM) matches 1011111 with a Communication Profile, and uses the defined Originating Application Sequence to route the call to Avaya Aura ® Communication Manager.

In step 1, when 1011111 draws dial tone it sends an Invite to Avaya Aura® Session Manager (SM) with the Request URI containing 1011111.

In step 2, the Avaya Aura® Session Manager (SM) uses a dial pattern and routing policy to route the call to Avaya Aura® Communication Manager (CM).

Correct Answer: B, C

Question 2 of 71

What statement about the H.323 to SIP routing is true?

Avaya Aura® Communication Manager does feature processing for both endpoints.

Avaya Aura® Communication Manager does feature processing for H.323 endpoint only.

Avaya Aura® Communication Manager does feature processing for SIP endpoint only.

Avaya Aura® Communication Manager does not do feature processing for any endpoint in this scenario.

Correct Answer: A

Question 3 of 71

When retrieving a message from Avaya Aura® Messenger (AAM), what is the function of the RE-INVITE?

The RE-INVITE is only used when the initial INVITE is not transmitted successfully.

The RE-INVITE shuffles the media path off Avaya Aura® Communication Manager (CM).

The RE-INVITE is to allow the user to be authenticated.

The RE-INVITE is only sent if a voice port cannot be initially connected to the caller.

Correct Answer: C

Question 4 of 71

Refer to the Exhibit.
Exam 7220X: Question 4 - Image 1

Which two statements about a call from AST 1011111 to Remote Worker AST 1011112 are true? (Choose two.)

Avaya Session Border Controller for Enterprise (SBCE) periodically sends SIP Options to 1011112 looking for a 200 ok response to check it is reachable.

SIP Signaling traverses the Avaya Session Border Controller for Enterprise (SBCE) and the Media must bypass the SBCE.

As far as Avaya Aura Session Manager (SM) is concerned, all Remote Worker phones are registering from an IP address equal to the Avaya Session Border Controller for Enterprise (SBCE) Remote Worker Private IP address.

Avaya Session Border Controller for Enterprise (SBCE) needs to be built as a trusted SIP Entity and Entity link for remote workers.

The configuration of a Remote Worker AST is the same as an Office Worker AST in the Avaya Aura® System Manager (SMGR) user profiles.

Correct Answer: C, E

Question 5 of 71

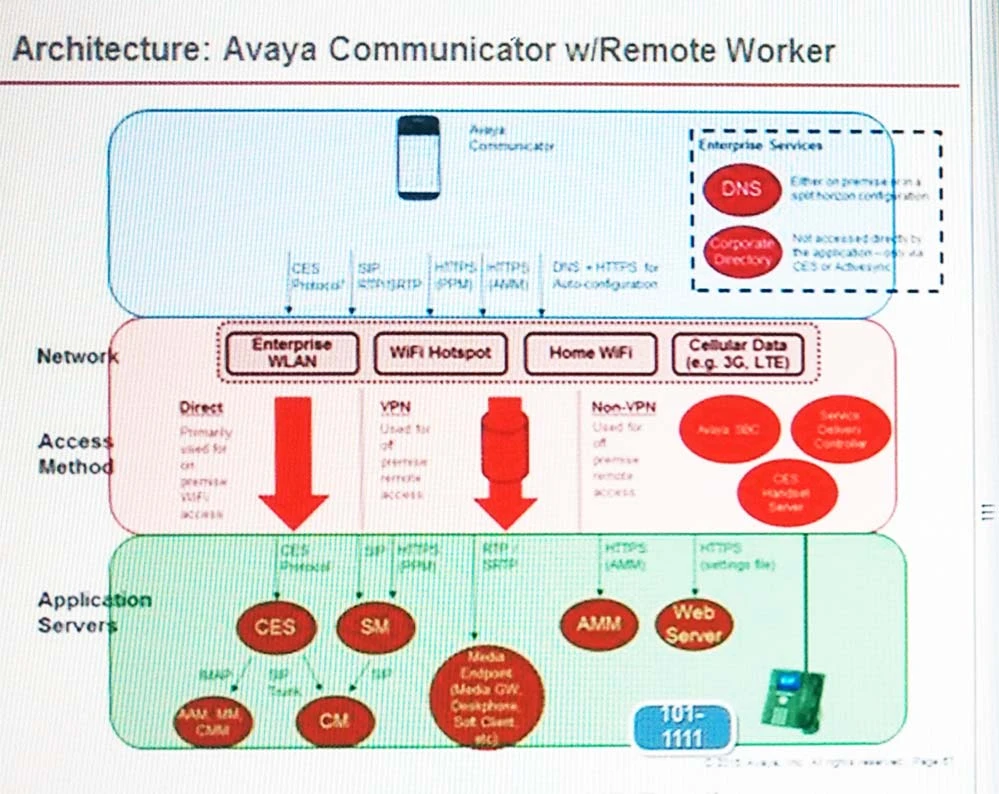

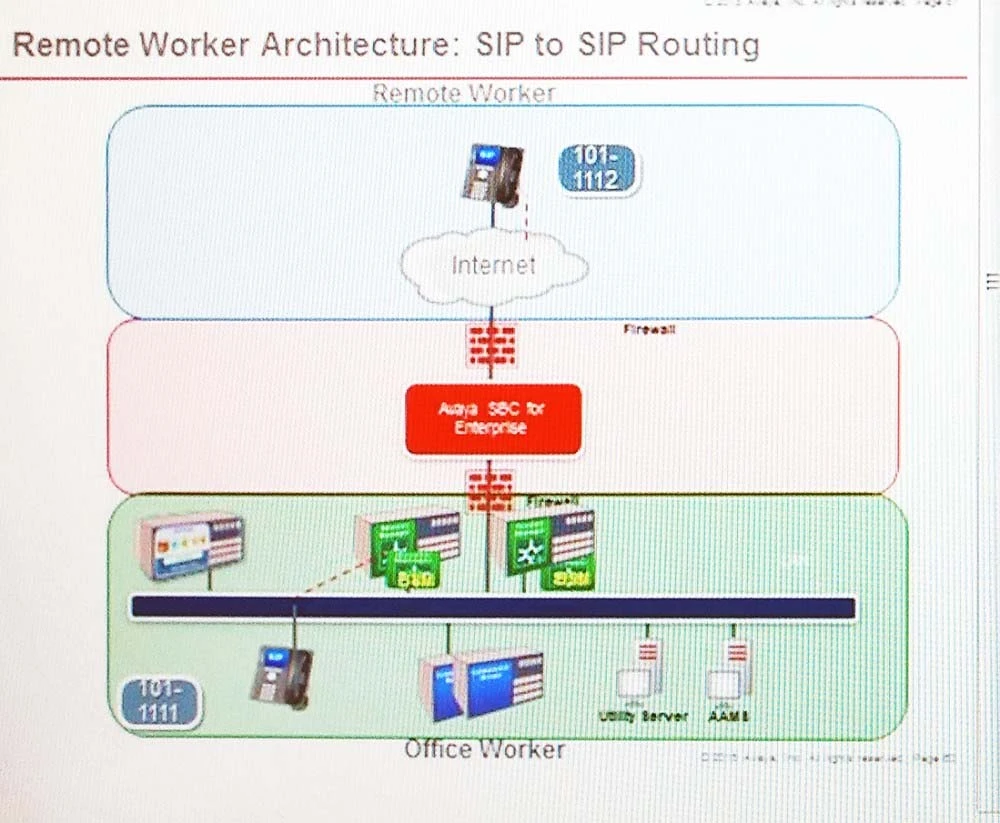

Refer to the Exhibits.
Exam 7220X: Question 5 - Image 1

The SIP call flow made from an Avaya Communicator Remote Worker is on the left, and the call flow made from a 96X1 telephone Remote Worker is on the right.
When comparing the two call flows, which statement is true?

There is no difference between the two.

Avaya Aura Communication Manager does full call model processing for the SIP-to-SIP call flow and does half-call model processing for the SIP-to- Communicator call flow.

The Communicator does not register to Avaya Aura® Session Manager.

The Communicator registers to Avaya Session Border Controller for Enterprise (SBCE).

Correct Answer: A
