Fortinet NSE 7 - SD-WAN 7.0

Here you have the best Fortinet NSE7_SDW-7.0 practice exam questions

  • You have 62 total questions across 13 pages (5 per page)
  • These questions were last updated on March 17, 2026
  • This site is not affiliated with or endorsed by Fortinet.
Question 1 of 62
Which diagnostic command can you use to show the member utilization statistics measured by performance SLAs for the last 10 minutes?
Answer

Suggested Answer

The suggested answer is A.

To show member utilization statistics measured by performance SLAs for the last 10 minutes, the correct command is 'diagnose sys sdwan intf-sla-log'. This command specifically displays utilization statistics, distinguishing it from other options that either provide different types of information or are less specific to utilization statistics.

Community Votes26 votes
ASuggested
77%
D
23%
Question 2 of 62
Which two protocols in the IPsec suite are most used for authentication and encryption? (Choose two.)
Answer

Suggested Answer

The suggested answer is A, C.

In the IPsec suite, two primary protocols used for authentication and encryption are Encapsulating Security Payload (ESP) and Internet Key Exchange (IKE). ESP is responsible for providing confidentiality, data origin authentication, and data integrity. IKE is used to establish a shared security policy and authenticated keys for the IPsec protocol. The other options, Secure Shell (SSH) and Security Association (SA), are not primarily used in the context of IPsec for these purposes.

Community Votes6 votes
ACSuggested
100%
Question 3 of 62
Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)
Answer

Suggested Answer

The suggested answer is C, D.

To speed up routing convergence in BGP, you can configure the holdtime-timer and link-down-failover. The holdtime-timer is used to detect failed BGP peers more quickly by shortening the interval between keepalive messages. A shorter holdtime can result in faster detection of a down peer and subsequent convergence. The link-down-failover can optimize the routing decision process when a direct link failure is detected, ensuring that alternative paths are utilized more promptly.

Community Votes4 votes
CDSuggested
100%
Question 4 of 62
Refer to the exhibits.

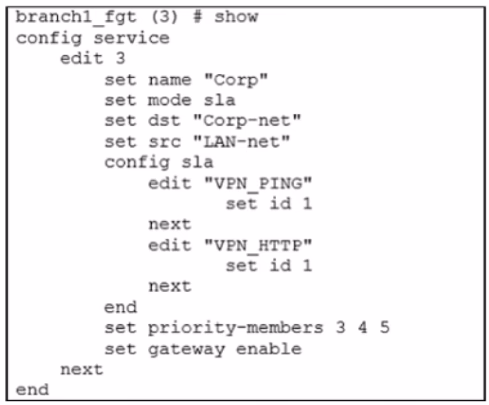

Exhibit A -
Exam NSE7_SDW-7.0: Question 4 - Image 1

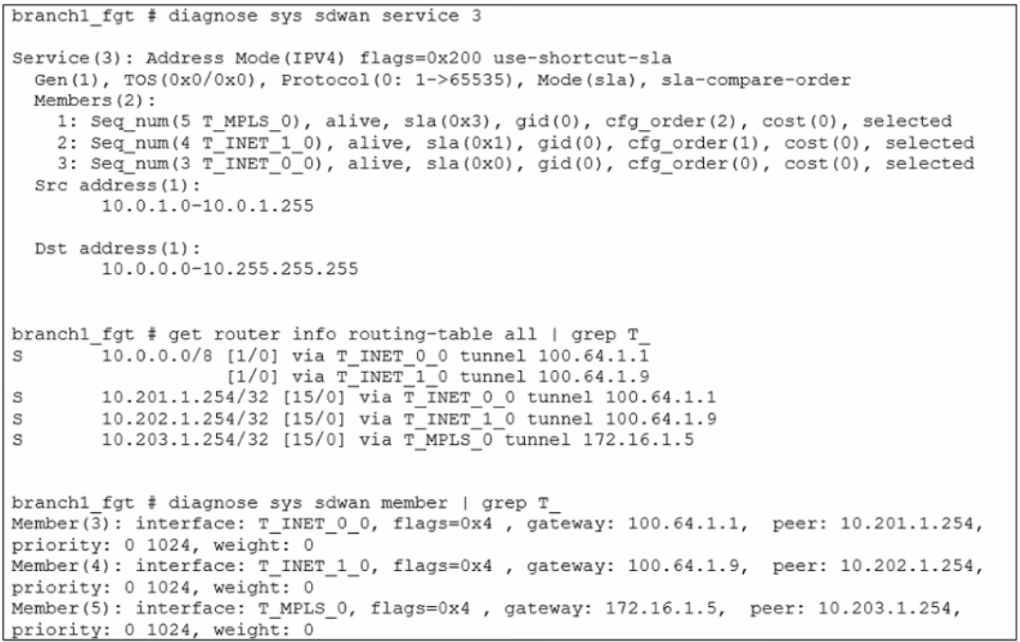

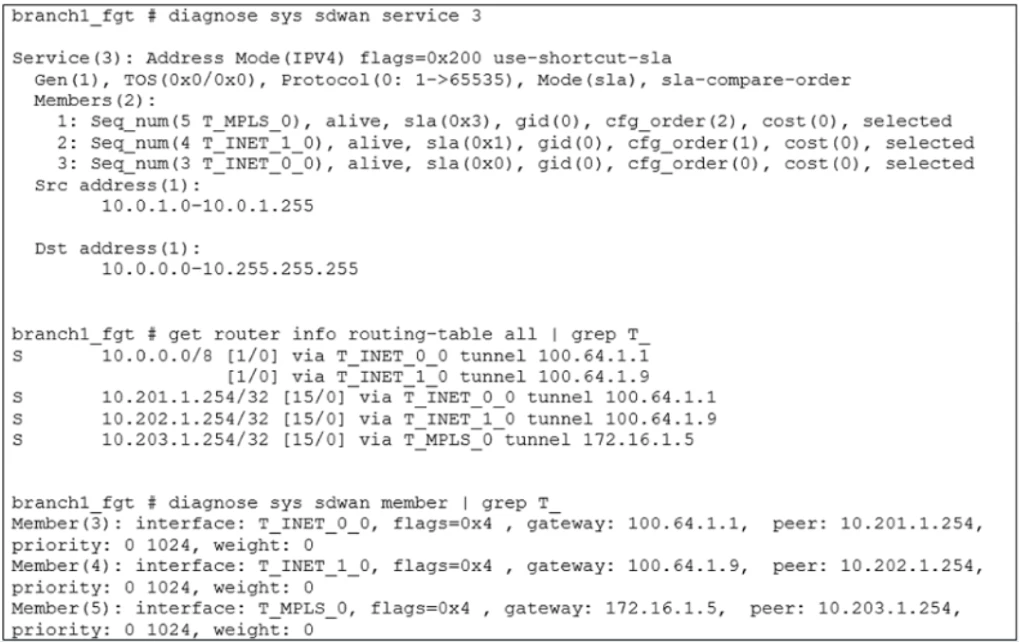

Exhibit B -
Exam NSE7_SDW-7.0: Question 4 - Image 2
Exhibit A shows the configuration for an SD-WAN rule and exhibit B shows the respective rule status, the routing table, and the member status.
The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule.
Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule?
Answer

Suggested Answer

The suggested answer is D.

The traffic will be routed over T_INET_1_0. This is because T_INET_1_0 is the only member that both has a valid route to the destination and meets one SLA target (0x1). The set gateway enable command would have allowed packets to flow even without a valid route only if set default enable was also configured, which is not the case here. Therefore, T_INET_0_0 is not an option since it does not meet any SLA targets (0x0), and T_MPLS_0 is not an option since it does not have a valid route to the destination.

Community Votes53 votes
DSuggested
60%
C
40%
Question 5 of 62

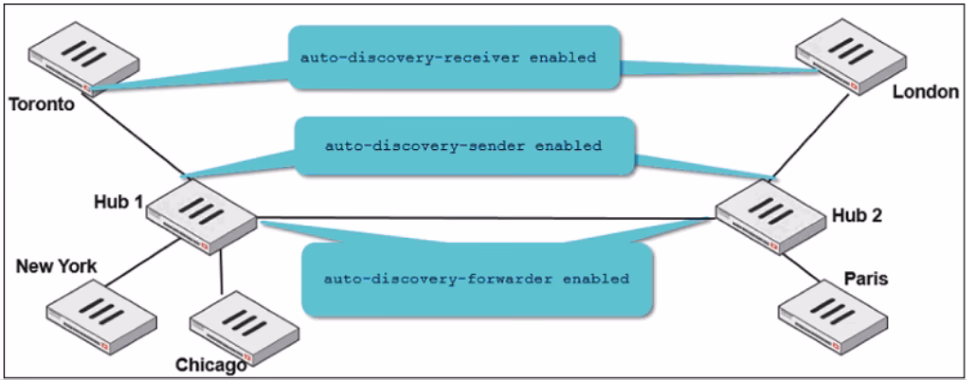

Refer to the exhibit.
Exam NSE7_SDW-7.0: Question 5 - Image 1
Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2. The administrator configured ADVPN on both hub-and-spoke groups.
Which two outcomes are expected if a user in Toronto sends traffic to London? (Choose two.)
Answer

Suggested Answer

The suggested answer is B, D.

In a typical ADVPN setup, when traffic is sent from Toronto to London, the first packets are routed through the defined hub-and-spoke path, which in this case means Toronto to Hub 1, then Hub 1 to Hub 2, and finally Hub 2 to London. This initial routing is needed to establish a path and trigger the dynamic VPN negotiation. Once this process takes place, a direct site-to-site VPN is dynamically negotiated, establishing a more direct connection between Toronto and London. Therefore, the expected outcomes are that the first packets are routed through the hub, and then a direct site-to-site VPN is dynamically negotiated.

Community Votes7 votes
BDSuggested
100%
