Fortinet NSE 6 - LAN Edge 7.6 Architect

Here you have the best Fortinet FCSS_LED_AR-7.6 practice exam questions

You have 38 total questions to study from
Each page has 5 questions, making a total of 8 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on December 19, 2025
This site is not affiliated with or endorsed by Fortinet.

Question 1 of 38

What is the primary benefit of the LAN Edge solution?

It integrates wired networking with advanced firewall capabilities.

It focuses on enhancing wireless network performance.

It provides centralized management, simplifies operations, and uses AI/ML.

It supports scalable and adaptable networking.

Correct Answer: C

Question 2 of 38

Refer to the exhibits.

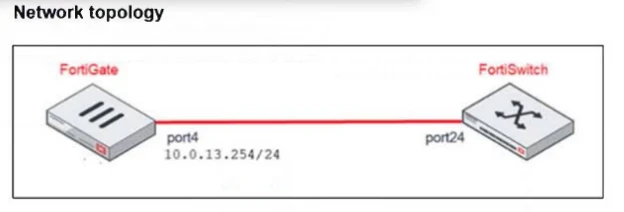

Exam FCSS_LED_AR-7.6: Question 2 - Image 1

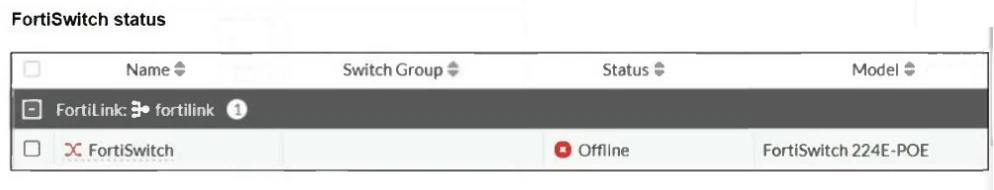

Exam FCSS_LED_AR-7.6: Question 2 - Image 2

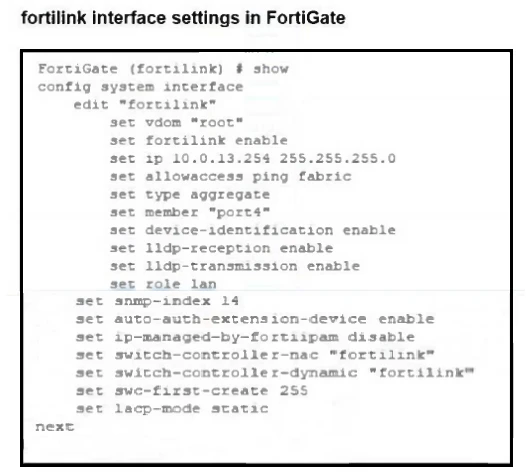

Exam FCSS_LED_AR-7.6: Question 2 - Image 3

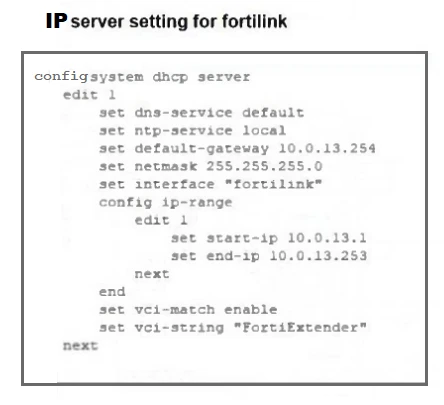

Exam FCSS_LED_AR-7.6: Question 2 - Image 4

You are adding a new FortiSwitch to FortiGate for management. All necessary settings have been configured on FortiGate, but FortiSwitch remains offline. The cabling has been verified and is correctly connected.
Which misconfiguration might be preventing FortiGate from detecting FortiSwitch?

The DHCP server setting vci-string is misconfigured.

The Fortilink interface has the wrong interface member.

The Fortilink interface setting ip-managed-by-fortiipam must be enabled.

The Fortilink interface setting type must be physical.

Correct Answer: D

Question 3 of 38

Refer to the exhibits.

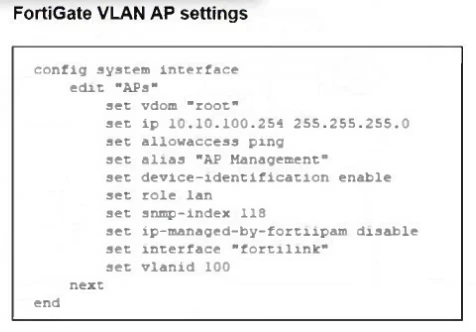

Exam FCSS_LED_AR-7.6: Question 3 - Image 1

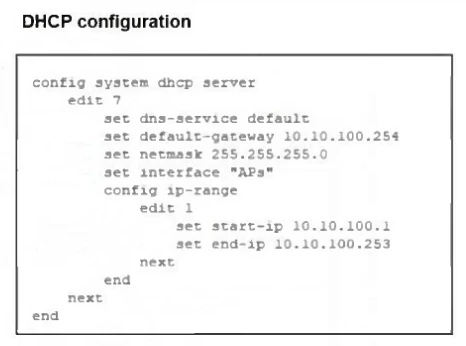

Exam FCSS_LED_AR-7.6: Question 3 - Image 2

Exam FCSS_LED_AR-7.6: Question 3 - Image 3

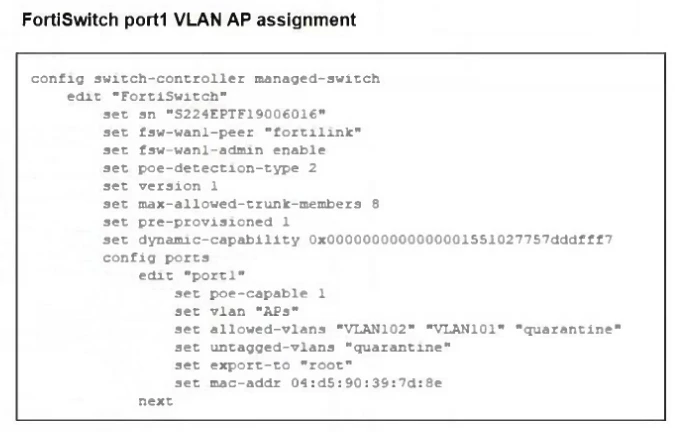

Exam FCSS_LED_AR-7.6: Question 3 - Image 4

A FortiSwitch is successfully managed by FortiGate. FortiAP is connected to port1 of the managed FortiSwitch.
On FortiGate, the VLAN AP is configured to detect and manage FortiAP, along with a DHCP server for the VLAN AP. Additionally, the VLAN AP is assigned to port1 of FortiSwitch.
However, FortiGate is unable to detect or manage FortiAP.
Which FortiGate misconfiguration is preventing the detection of FortiAP?

The VLAN is not tagged correctly on the FortiSwitch uplink port.

The FortiAP firmware is incompatible with the FortiGate firmware version.

The CAPWAP ports (UDP 5246 and 5247) are not open on FortiGate.

Security Fabric is disabled in the administrative access options of the VLAN.

Correct Answer: D

Question 4 of 38

You need to optimize your wireless network to improve performance and reliability in a dynamic environment. The network must adapt to changes in the radio frequency (RF) environment, such as interference, new devices, and fluctuating traffic patterns.
Which role does FortiAIOps play in monitoring and automatically adjusting to changes in the radio frequency (RF) environment?

To detect and report interference and congestion, helping to optimize wireless performance and coverage

To limit the number of devices connected to each access point in a given area

To increase the signal strength of the network if required by modulating power levels on all access points

To monitor network traffic and recommend firewall rules in real time

Correct Answer: A

Question 5 of 38

You have decided to manage multiple FortiSwitch devices using FortiManager and its FortiSwitch Manager feature.
Which two statements accurately describe FortiSwitch Manager feature functionality? (Choose two.)

FortiSwitch Manager displays the following statuses for FortiSwitch: online, offline, unauthorized, and unknown.

Per-device management is useful for deploying multiple switches with the same configuration.

FortiSwitch Manager displays the following statuses for FortiSwitch: active, inactive, pending, and unknown.

In per-device management mode, you apply settings and profiles to individual FortiSwitch devices.

Correct Answer: A, D
