Question 1 of 32

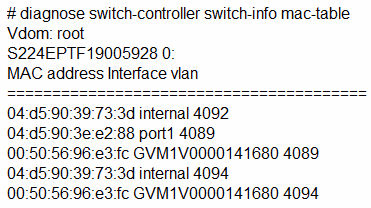

Refer to the diagnostic output:

Two entries in the exhibit show that the same MAC address has been used in two different VLANs.

Which MAC address is shown in the above output?

It is a MAC address of FortiLink interface on FortiGate.

It is a MAC address of a switch that accepts multiple VLANs.

It is a MAC address of an upstream FortiSwitch.

It is a MAC address of FortiGate in HA configuration.

Correct Answer: B

Question 2 of 32

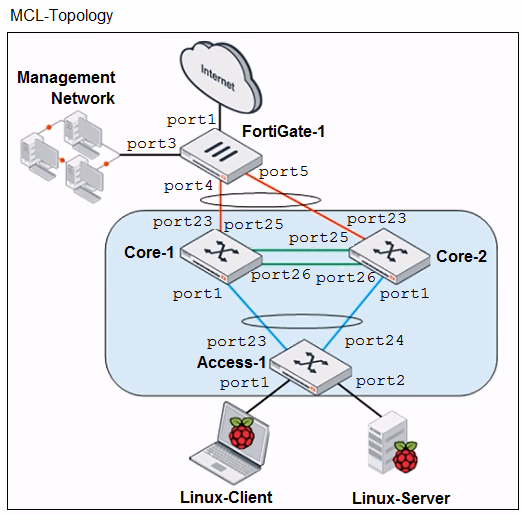

Refer to the exhibit.

Core-1 and Access-1 are managed and authorized by FortiGate-1, which uses port4 as the FortLink interface. After FortiGate authorizes and manages Core-2, port1 status becomes STP discarding.

Why is port1 in the discarding state?

port1 on Core-2 is discarding only management traffic.

Core-1 and Core-2 do not have MCLAG configuration.

Access-1 is the root bridge and can only have one root port.

Core-2 has the lowest bridge priority.

Correct Answer: B

Question 3 of 32

Which two statements about the FortiLink authorization process are true? (Choose two.)

The administrator must manually pre-authorize FortiGate on FortiSwitch by adding the FortiGate serial number.

FortiSwitch requires a reboot to complete the authorization process.

Fortiink frame is sent by FortiGate to FortiSwitch to complete the authorization.

FortiLink authorization sets the FortiSwitch management mode to FortiLink.

Correct Answer: C, D

Question 4 of 32

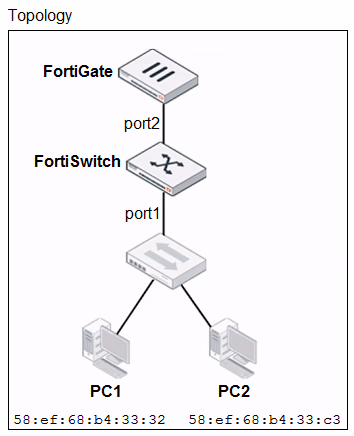

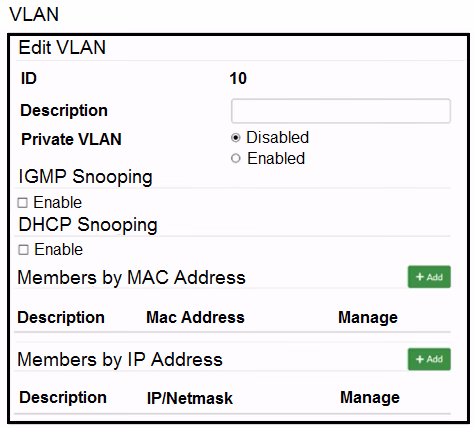

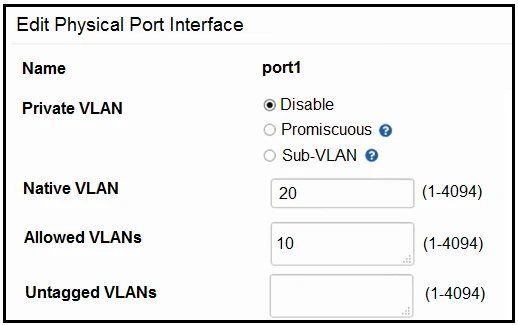

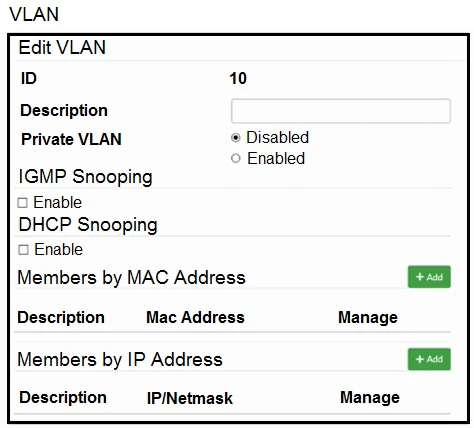

Refer to the exhibits.

Traffic arriving on port2 on FortiSwitch is tagged with VLAN ID 10 and destined for

PC1 connected on port1. PC1 expects to receive traffic untagged from port1 on FortiSwitch.

Which two configurations can you perform on FortiSwitch to ensure PC1 receives untagged traffic on port1? (Choose two.)

Add the MAC address of PC1 as a member of VLAN 10.

Add VLAN ID 10 as a member of the untagged VLANs on port1

Remove VLAN 10 from the allowed VLANs and add it to untagged VLANs on port1

Enable Private VLAN on VLAN 10 and add VLAN 20 as an isolated VLAN.

Correct Answer: A, B

Question 5 of 32

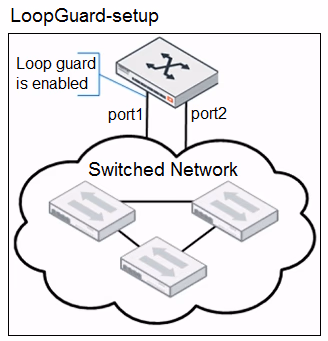

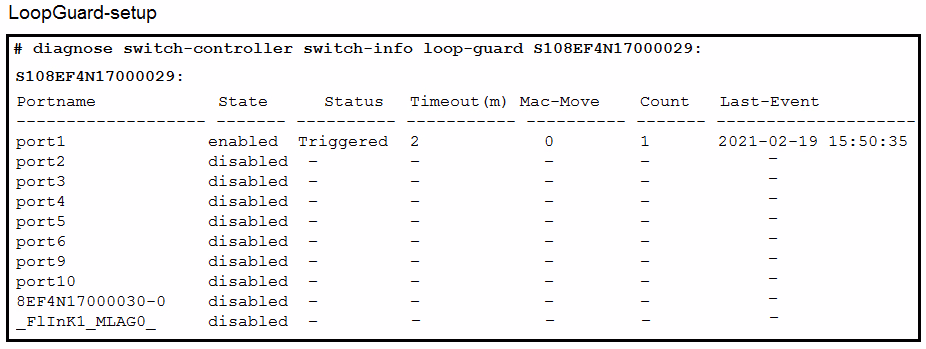

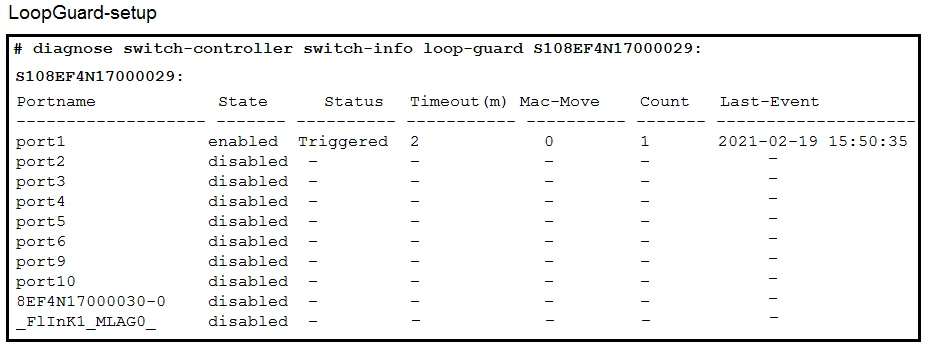

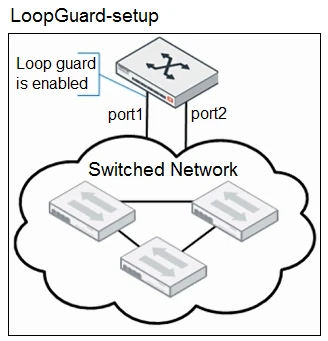

Refer to the exhibits.

Port1 and port2 are the only ports configured with the same native VLAN 10.

What are two reasons that can trigger port1 to shut down? (Choose two.)

port1 was shut down by loop guard protection.

STP triggered a loop and applied loop guard protection on port1.

An endpoint sent a BPDU on port1 that it received from another interface.

Loop guard frame sourced from port1 was received on port1.

Correct Answer: A, D
