Here you have the best HP HPE6-A41 practice exam questions

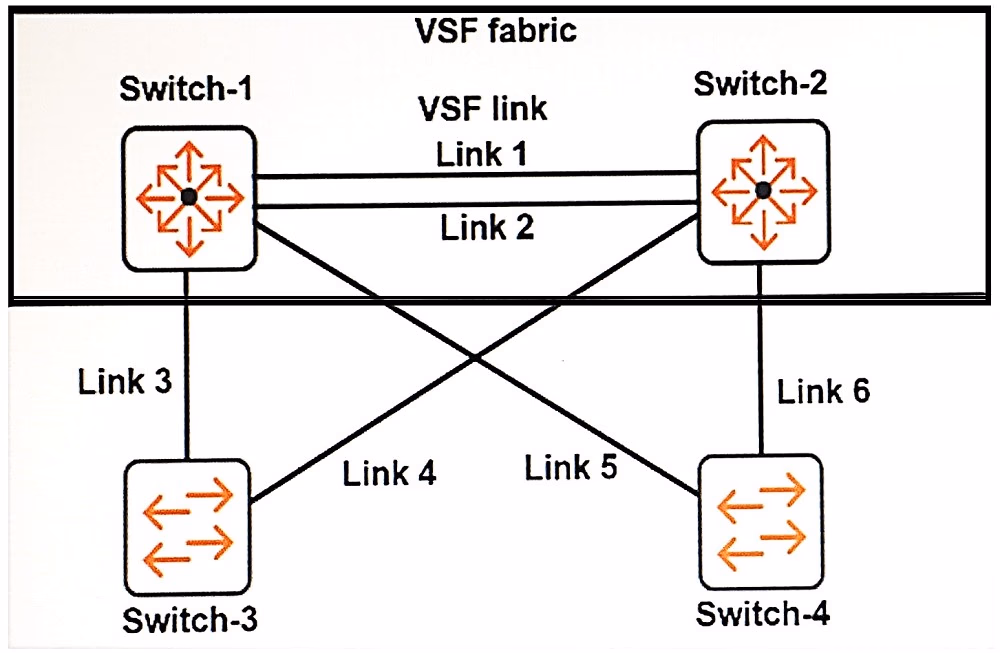

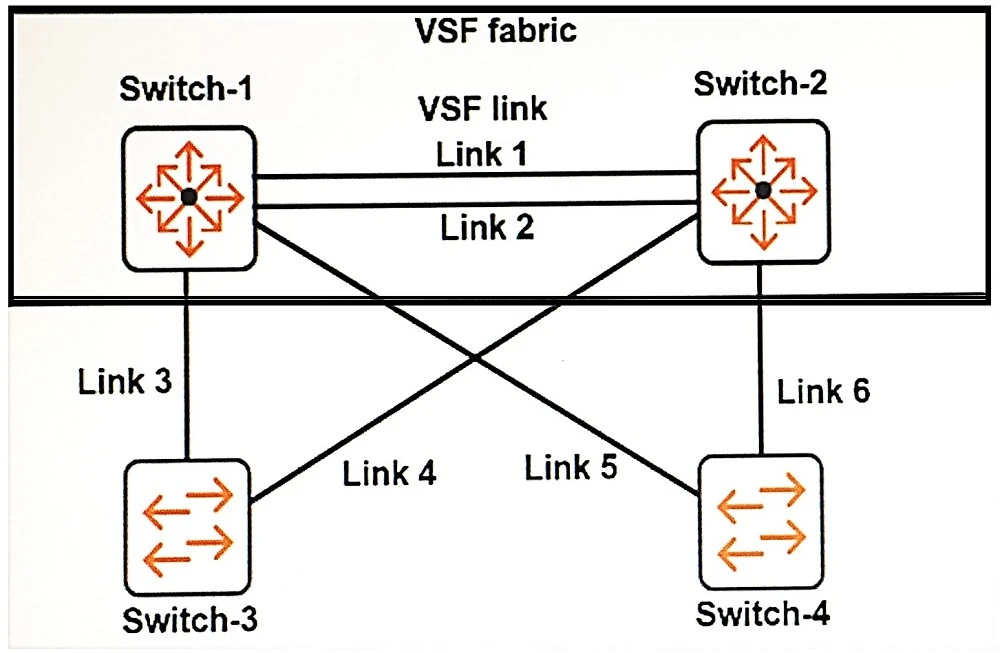

For link aggregation to be possible, the links need to connect the same pair of devices. When connecting switches, link aggregation can only be formed by links connecting the same pair of switches. Here, Links 3 and 4 connect Switch-1 to Switch-3 and Switch-4, respectively, so they can't be aggregated. Links 3 and 5 connect Switch-3 to Switch-1 and Switch-4, respectively, and they can be aggregated.
To configure an ArubaOS switch, the network administrator would need the Administrator privilege level. This level provides full privileges, including configuring the switch, which is essential for a network administrator's tasks.

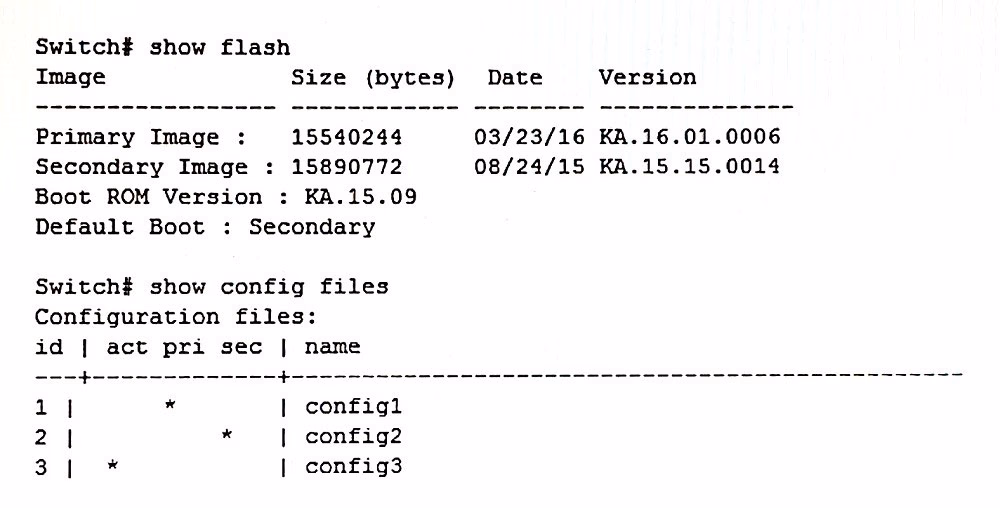

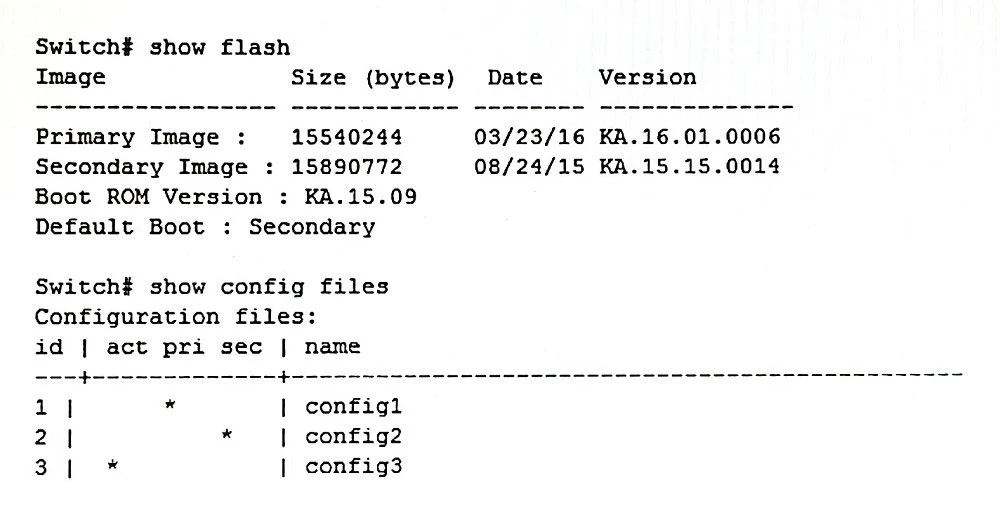

When the 'reload' command is issued, the switch will boot from the currently active configuration and software image. According to the exhibit, the default boot image is the Secondary Image, which is software version KA.15.15. The active configuration file is config3, as indicated by the '*' symbol under the 'act' column for config3. Therefore, the correct answer is that it will load software version KA.15.15 and config3.

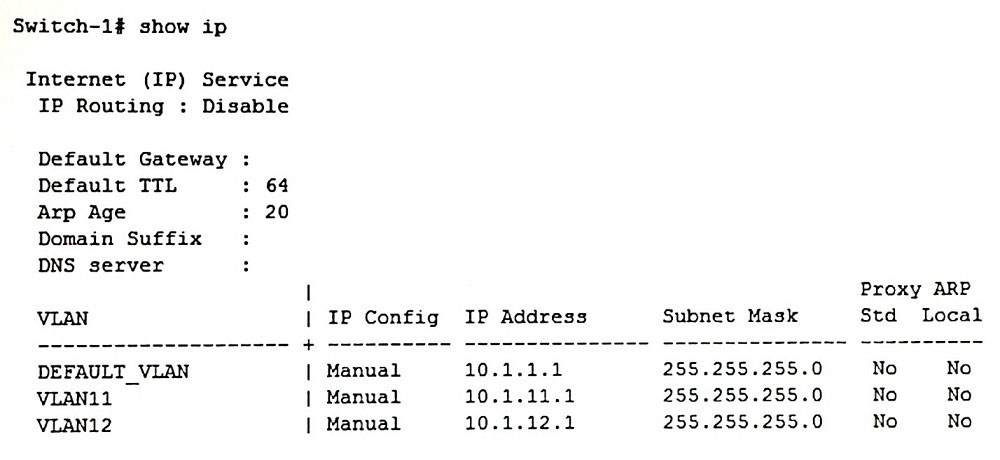

To permit Switch-1 to route traffic from a client in the 10.1.11.0/24 network to a client in the 10.1.12.0/24 network, the network administrator needs to enable IP routing. This will configure the switch to function as a Layer 3 device, capable of performing inter-VLAN routing. Without enabling IP routing, the switch cannot route traffic between different VLANs, even if the subnet information is correctly configured.
A network administrator can load two operating system image files on an ArubaOS switch. ArubaOS switch supports the primary and secondary image system, meaning the administrator can upload and switch between these two images.
