Building HPE SDN and FlexNetwork Solutions

Here you have the best HP HPE0-Y53 practice exam questions

You have 105 total questions to study from
Each page has 5 questions, making a total of 21 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on October 20, 2025
This site is not affiliated with or endorsed by HP.

Question 1 of 105

A network administrator is planning a flow table entry that provides fast failover for the traffic flow in case a link fails. Which key element would the flow entry contain?

a group identifier that specifies at least two output ports

a backup set action that modifies the packet and sends it to the controller

a forward action to the reserved port NEAREST_ACTIVE

a go-to-table action that sends traffic to another table if the port is down

Correct Answer: A

Question 2 of 105

Refer to the exhibit.
Exam HPE0-Y53: Question 2 - Image 1

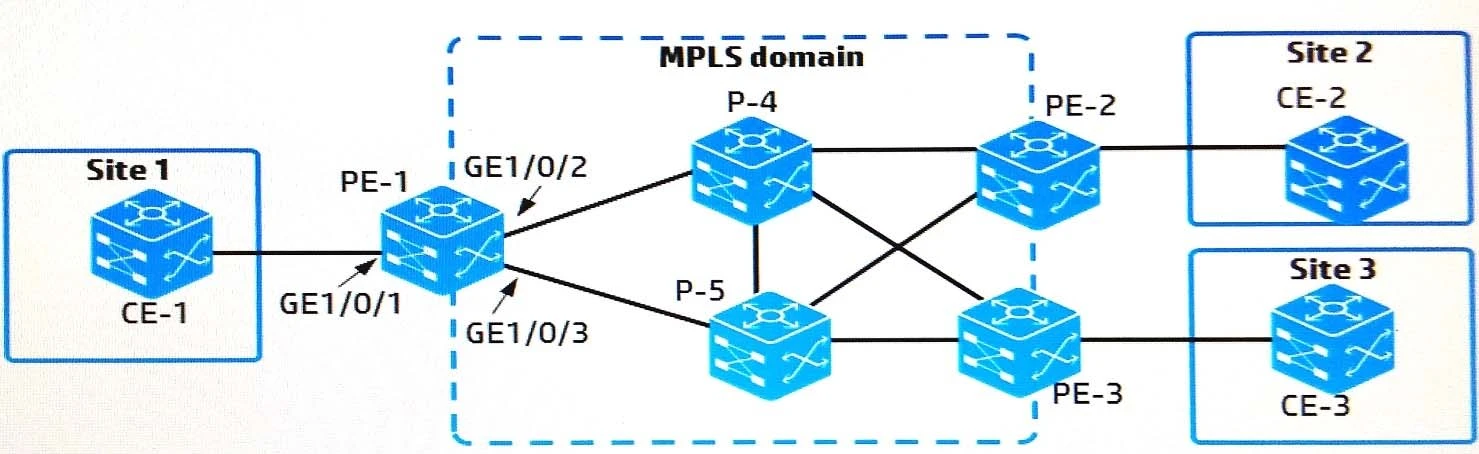

A network administrator is planning an MPLS and VPLS Martini solution to connect customer sites 1, 2, and 3. How many pseudowires must the administrator configure?

two; two on PE-1, with one connected to PE-2 and PE-3

one; one on PE-1, connected to both PE-2 and PE-3

four; two on PE-1, one on PE-2, and one on PE-3

six; two each on PE-1, PE-2, and PE-3

Correct Answer: D

Question 3 of 105

DRAG DROP -

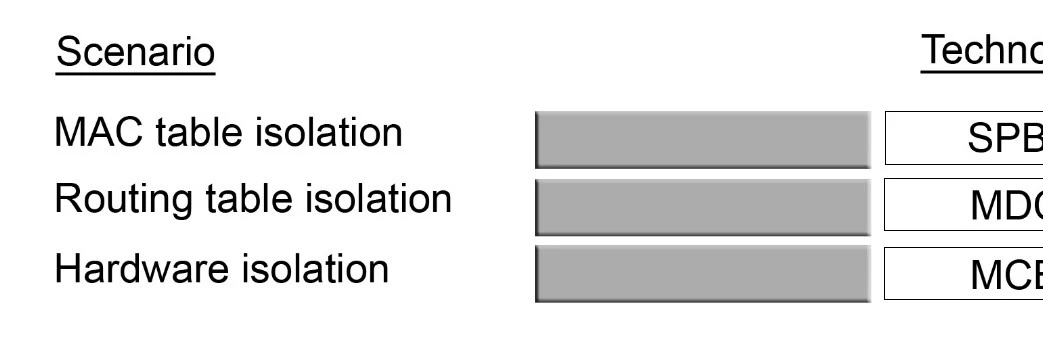

Evaluate each scenario for multi-tenant isolation, and match the scenario to the technology that best meets its needs.
Select and Place:
Exam HPE0-Y53: Question 3 - Image 1

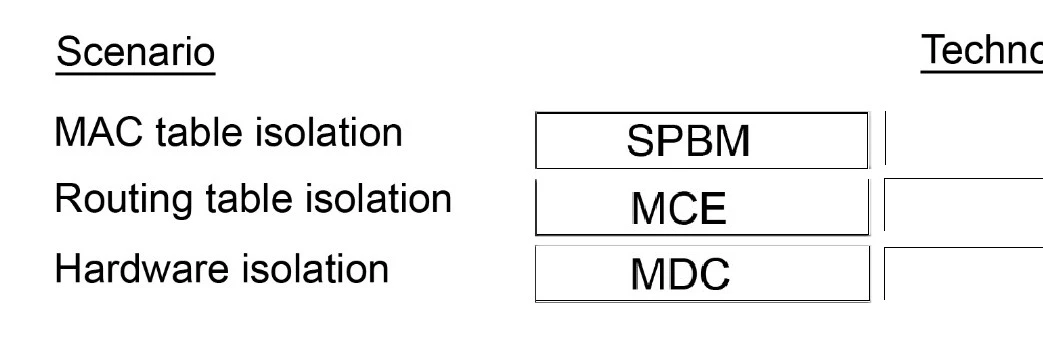

Correct Answer:

v
Technologies that support multi-tenant solutions include MDC, MCE, and SPBM.

Box 1: SPBM -
Over 16 million customers can each have a separate set of 4094 VLANs.

Box 2: MCE -
MCE aka VRF, a single physical router can host multiple virtual routers, with separate routing tables and data planes for each customer. However, theres a single management plane, single admin.

Box 3: MDC -
MDC creates virtual devices inside a physical device. Each client has isolated ASICs, admin login and configurations, control plane, and data plane.
References:
http://h20564.www2.hpe.com/hpsc/doc/public/display?docId=mmr_kc-0128497 Exam HPE0-Y53: Question 3 - Image 2

Question 4 of 105

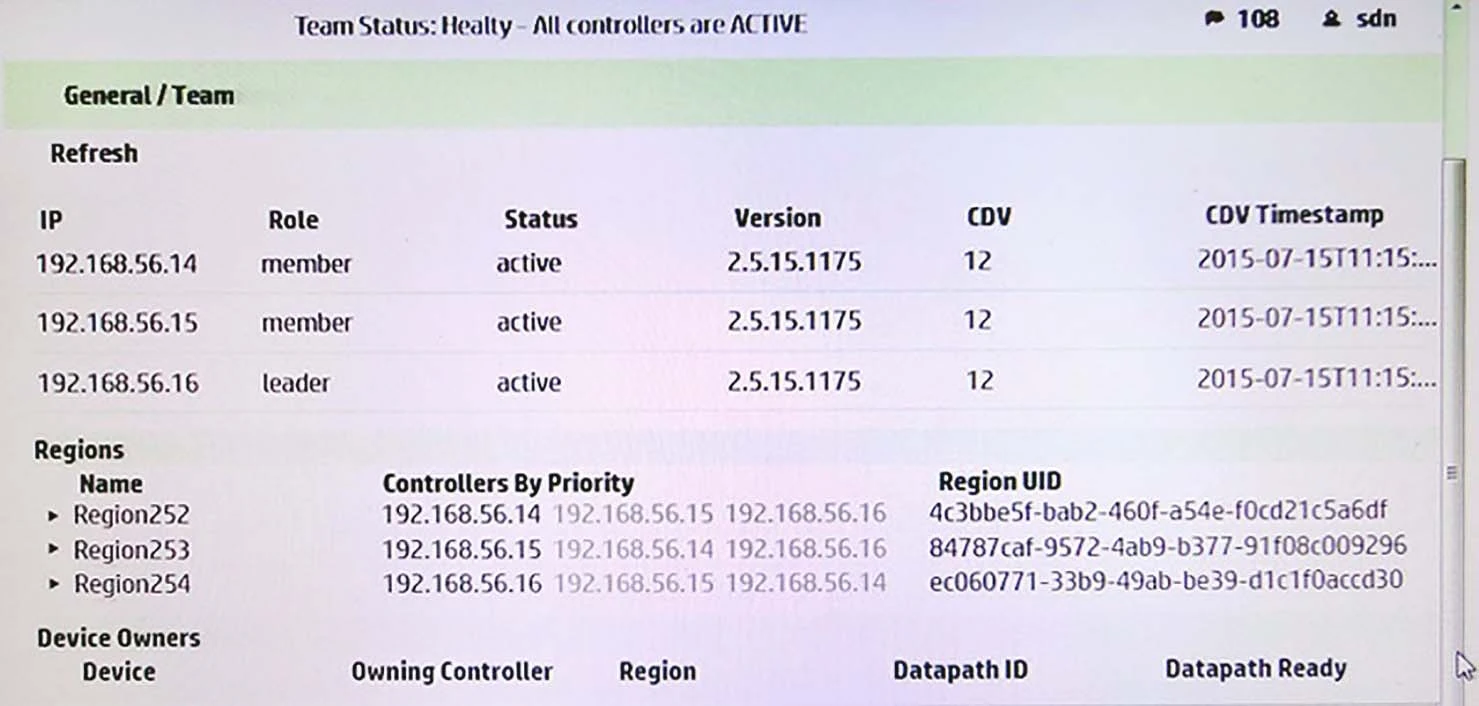

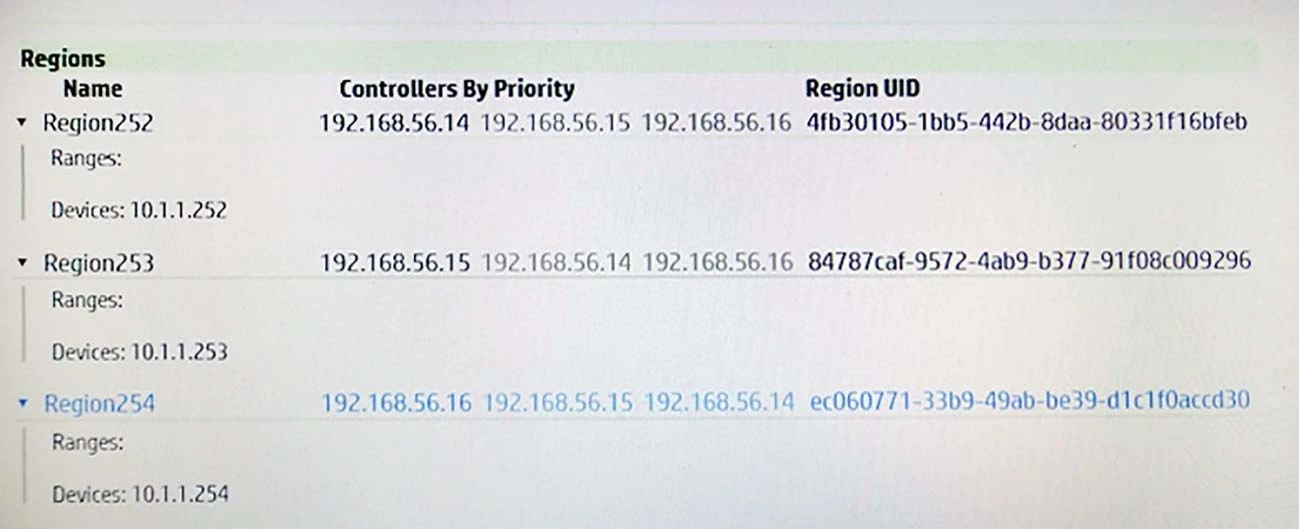

Refer to the exhibits on the Exhibit 1 and Exhibit 2 tabs.

Exhibit 1 -
Exam HPE0-Y53: Question 4 - Image 1

Exhibit 2 -
Exam HPE0-Y53: Question 4 - Image 2

A company has three HP VAN SDN Controllers deployed in a team with the settings shown in the exhibits. What is the correct OpenFlow controller configuration for the OpenFlow instance on the switch with IP address 10.1.1.252?

one controller with IP address 192.168.56.14

two controllers with IP addresses 192.168.56.14 and 192.168.56.16

one controller with IP address 192.168.56.16

three controllers with IP addresses 192.168.56.14, 192.168.56.15, and 192.168.56.16

one controller with IP address 192.169.81.84

Correct Answer: D

Question 5 of 105

A company requires secure, encrypted connections between OpenFlow-enabled switches and the HP VAN SDN Controller. What could the network administrator do to meet this requirement?

Configure TLS and certificates for the connection to the OpenFlow controller.

Configure the OpenFlow instance to use SSH and set up matching passwords on the switches and controller.

Configure fail secure mode on the OpenFlow instance.

Configure the controller connection on the switch out-of-band management (OOBM) port.

Correct Answer: A
