Question 1 of 38

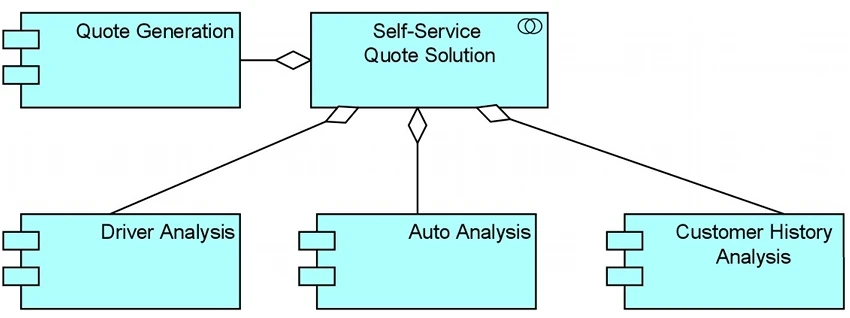

Consider the following diagram representing part of a key PRO-FIT capability: self-service online price quotes for its auto insurance customers:

Exam OG0-021: Question 1 - Image 1

Which of the following answers best interprets this diagram?

The Self-Service Quote Solution is an application service that uses four separate application components

The Self-Service Quote Solution is an application collaboration that includes four application components that work together

The Self-Service Quote Solution is an application component that accesses four different types of data objects

The Self-Service Quote Solution is an application component that collaborates with four service modules

Correct Answer: B

Question 2 of 38

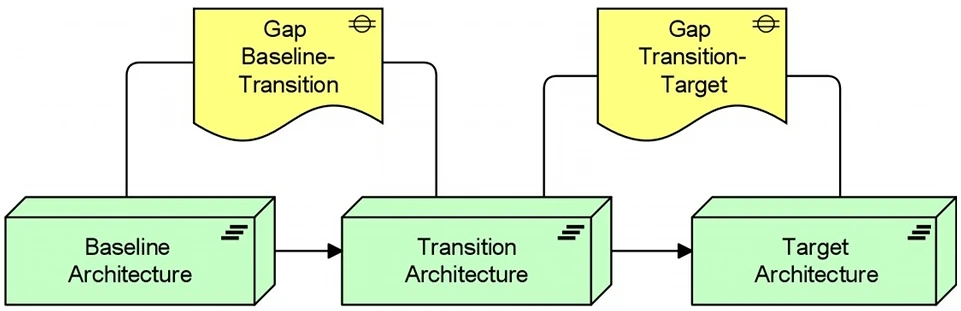

The following diagram shows an example of the use of the Migration viewpoint:

Exam OG0-021: Question 2 - Image 1

Which of the following best describes a reason for using this viewpoint?

To model the management of architecture change

To help determine the priorities of implementation projects

To relate programs and projects to the parts of the architecture that they implement

To help in planning the transition from the current architecture to a desired future architecture

Correct Answer: D

Question 3 of 38

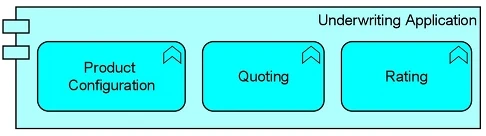

Consider the following diagram:

Exam OG0-021: Question 3 - Image 1

What does the diagram express about the Underwriting Application?

It has three distinct components

It processes three different types of data objects

It performs three different functions

It groups together three components that are not a part of the Underwriting Application

Correct Answer: C

Question 4 of 38

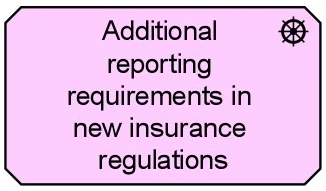

Consider the following symbol, which represents information about a transformation project at ArchiSurance involving systems and business processes:

Exam OG0-021: Question 4 - Image 1

Which of the following statements correctly expresses the meaning of the symbol?

The ArchiSurance legal department has determined the impact of the new regulations

The project must satisfy requirements for additional reporting

The additional reporting requirements in new insurance regulations are driving change at ArchiSurance

The project's systems must be flexible enough to accommodate any future changes in reporting requirements

Correct Answer: C

Question 5 of 38

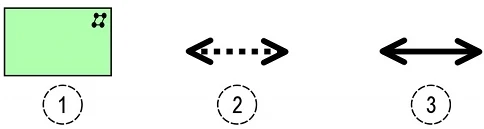

Consider the following three graphical notations:

Exam OG0-021: Question 5 - Image 1

Which of the three graphical notations represent the concept of a network?

Only notation 1 represents the network concept

Only notation 2 represents the network concept

Notations 1 and 3 represent the network concept

All three notations represent the network concept

Correct Answer: C
