Juniper JN0-650 Exam Practice Questions and Answers

Question 6 of 16

You are implementing an EVPN-VXLAN edge-routed bridging design using Layer 3 gateway operations.
In this scenario, which statement is correct?

A.

Each distribution switch has unique IP addresses for IRB interfaces; routing protocols run on IRB interfaces.

B.

Distribution switches share the same anycast IP addresses for IRB interfaces; routing occurs at the distribution layer.

C.

Only core switches have IRB interfaces; all Layer 3 routing happens in the core.

D.

IRB interfaces are disabled; all routing happens through external routers only.

Question 7 of 16

Click the Exhibit button.
Exam JN0-650: Image 1

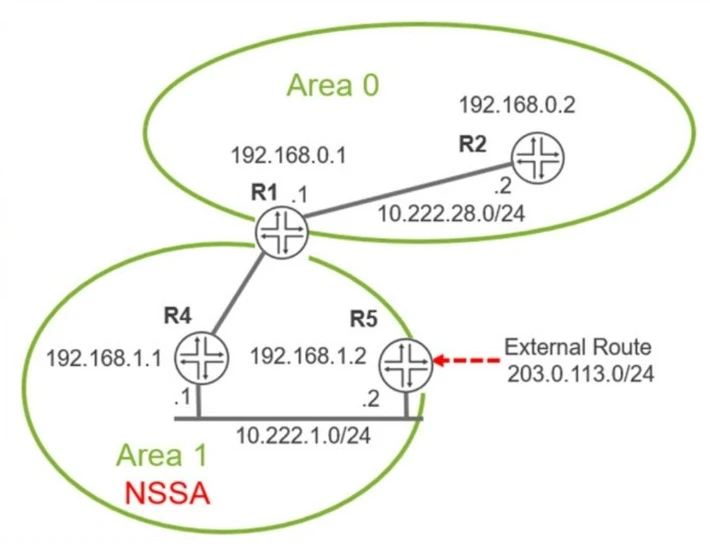

Referring to the exhibit, which two statements are correct? (Choose two.)

A.

R1 will advertise the 203.0.113.0/24 route as an OSPF Type 7 LSA into Area 0.

B.

R5 will advertise the 203.0.113.0/24 route as an OSPF Type 5 LSA into Area 1.

C.

R1 will advertise the 203.0.113.0/24 route as an OSPF Type 5 LSA into Area 0.

D.

R5 will advertise the 203.0.113.0/24 route as an OSPF Type 7 LSA into Area 1.

Question 8 of 16

Click the Exhibit button.
Exam JN0-650: Image 1

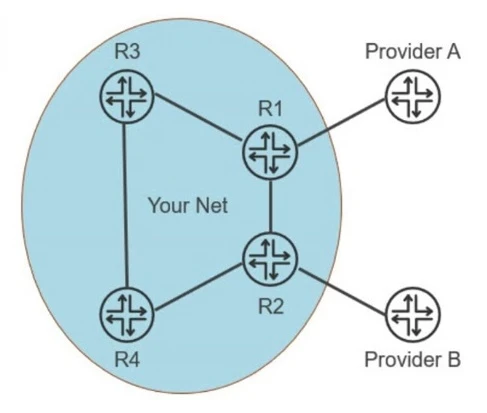

Your network receives the full Internet BGP routing table from two different ISPs. You want your local routers to use Provider A to forward all Internet traffic as long as Provider A is available.
Referring to the exhibit, which two actions would satisfy this requirement? (Choose two.)

A.

Use a routing policy to set the local preference attribute value higher for the routes that are learned by R1.

B.

Use a routing policy to set the local preference attribute value higher for the routes that are learned by R2.

C.

Use a routing policy to set the local preference attribute value lower for the routes that are learned by R2.

D.

Use a routing policy to set the local preference attribute value lower for the routes that are learned by R1.

Question 9 of 16

Click the Exhibit button.
Exam JN0-650: Image 1

Referring to the exhibit output, which statement is correct?

A.

The device with an IP address of 192.168.100.2 is attached to VNI 5010.

B.

The output shows the router ID of the device sending the EVPN Type 2 routes.

C.

The output shows the route distinguisher of the device sending the EVPN Type 2 routes.

D.

IP addresses 10.1.1.1 and 10.1.2.3 are connected to the same VNI.

Question 10 of 16

You have two multicast receivers connected to the same VLAN. You notice that the switch that they are connected to is forwarding multicast traffic out of all the ports in the same VLAN, instead of just the two ports for the connected multicast receivers.
In this scenario, what would you configure to optimize multicast forwarding?

A.

promiscuous mode

B.

spanning tree

C.

IGMP snooping

D.

IRB interface
