Question 1 of 60

A customer is planning to implement a new IBM Storwize V5030 solution and is evaluating the requirements for implementing disaster recovery with HyperSwap.

Which HyperSwap configuration requirement needs to be part of installation?

Answer

Suggested Answer

The suggested answer is D.

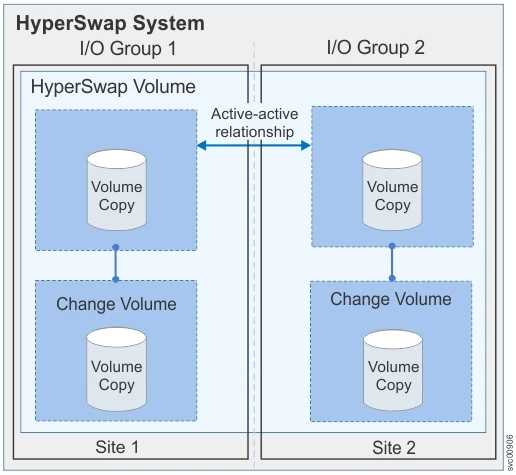

HyperSwap volumes, where copies of a single volume are in different storage pools that are on different sites. The volume is cached in two I/O groups that are on different sites. These volumes can only be created on Storwize V5030 systems when the system topology is HyperSwap.
Exam C9020-562: Question 1 - Image 1
References:
http://www.ibm.com/support/knowledgecenter/STHGUJ_7.7.0/com.ibm.storwize.tb5.770.doc/tbrd4_tbrd4ovr.html D
Question 2 of 60

A cloud solution is being planned using the IBM Storwize family to provide storage for multiple clients on IBM Power and Intel hosts.

Which solution provides the necessary storage for the primary site and a disaster recovery location at a data center 1500 kilometers away?

Answer

Suggested Answer

The suggested answer is B.

Metro Mirror and Global Mirror are technologies that enable you to keep a real-time copy of a disk at a remote site that contains another SVC Cluster or Storwize
V7000 system.

Incorrect Answers -
A: FlashCopy is a function that allows you to create a point-in-time copy of one of your SVC disks. This might be helpful when performing backups or application testing. These copies may be cascaded upon one another, read from, written to, and even reversed.
These copies are able to conserve storage, if needed, by being space-efficient copies that only record items that have changed from the originals instead of full copies.
C: Volume Mirroring is a function designed to increase high availability of the storage infrastructure. It provides the ability to create up to two local copies of a volume.
References: IBM System Storage SAN Volume Controller and Storwize V7000 Replication Family Services, page 22 http://www.redbooks.ibm.com/redbooks/pdfs/sg247574.pdf
Question 3 of 60

A customer has several large disk systems serving up block data over Fibre Channel that are of varying degree of utilization and needs to constrain growth and manage performance. The disk systems are made by EMC, Huawei, Bull, and IBM.

Which IBM software solution should be discussed?

Answer

Suggested Answer

The suggested answer is B.

IBM Virtual Storage Center for Storwize provides a lower-cost alternative to Fibre Channel-based replication that is easily configurable in existing IP infrastructures, eliminating the need for FCIP routers and dark fibre.
SAN Volume Controller can virtualize IBM and non-IBM storage (over 170 systems from IBM, EMC, HP, HDS, Sun, Dell, NetApp, Fujitsu, NEC, Bull)
References: IBM Storwize Family Software, (SVC & Storwize), Product Roadmap, page 4 https://www.ibm.com/developerworks/community/files/form/anonymous/api/library/c18c45e6-e212-4b38-a28e-6c74534ba5e2/document/4555d51c-465b-4093- bb06-ca70861e2e3e/media
Question 4 of 60

Which authentication protocol for remote authentication of users is supported by the IBM Storwize V7000 model 524?

Answer

Suggested Answer

The suggested answer is C.

You can use the command-line interface (CLI) to configure the Storwize V7000 to authenticate users against servers implementing the Lightweight Directory
Access Protocol (LDAP), including IBM Tivoli Directory Server (ITDS) and Active Directory (AD).
References:
http://www.ibm.com/support/knowledgecenter/ST3FR7_6.4.1/com.ibm.storwize.v7000.641.doc/svc_remoteauthentcliLDAP_08070948.html
Question 5 of 60

Which IBM Storwize product allows for scalability up to a maximum of 20 expansion enclosures with a single control enclosure?

Answer

Suggested Answer

The suggested answer is A.

V5030: Standard expansion enclosures: up to 20 standard expansion enclosures per controller.
High-density expansion enclosures: up to 8 high-density expansion enclosures per controller.
Incorrect Answers:
B: Storwize V3700 consists of one control enclosure and up to 4 expansion enclosures.
C: V5020: Standard expansion enclosures: up to 10 standard expansion enclosures per controller.
High-density expansion enclosures: up to 4 high-density expansion enclosures per controller.
D: v5010: Standard expansion enclosures: up to 10 standard expansion enclosures per controller.
High-density expansion enclosures: up to 4 high-density expansion enclosures per controller.
References:
http://www-03.ibm.com/systems/storage/disk/storwize_v5000/specifications.html
