Question 1 of 67

An administrator is trying to troubleshoot a problem with actions running in a page id task through Rulerunner.
To get more information about the execution of the actions in Rulerunner, what configuration option should be modified?

Change the service log level to 5 in the page id task setup.

Edit the rrprocessor.exe.config file and set RRSLogSeverity=5

Set the Level of details to All in the RRS log tab in Rulerunner Manager.

In Datacap Server Manager's Logging tab, check the RRSFullLogging checkbox.

Correct Answer: C

Question 2 of 67

A company has a corporate policy to install applications on a non-C: drive so they installed IBM Datacap on the E: drive on all machines. Rulerunner is configured to process PageId, Profiler and Export steps. While testing the OOTB TravelDocs application, the VScan step in DcDesktop creates batches successfully.

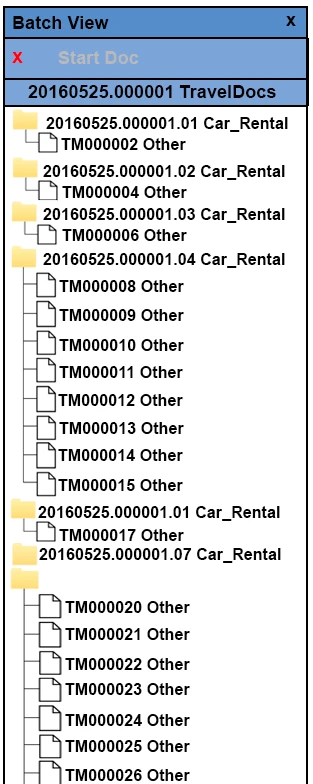

Rulerunner picks up the job from PageId step, processes it to the Profiler step, which also processes it. However, instead of ending up on the Verify task when tested on the C: drive, the batches all end up in FixUp with pages set to Other when tested on the E: drive (see following screenshots for examples).

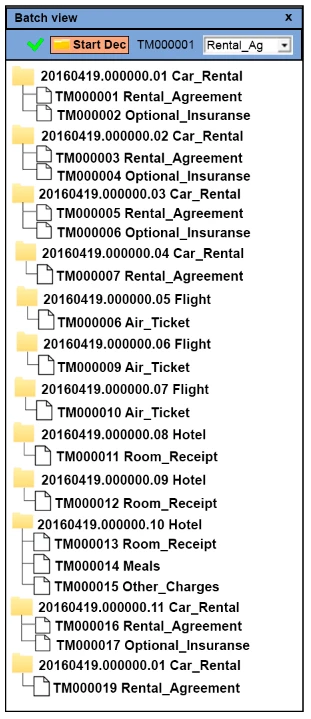

Exam C2070-994: Question 2 - Image 1

Which log file would show the following clue as to why and what needs to be done to resolve the issue so that the batches do not end up in Fixup?

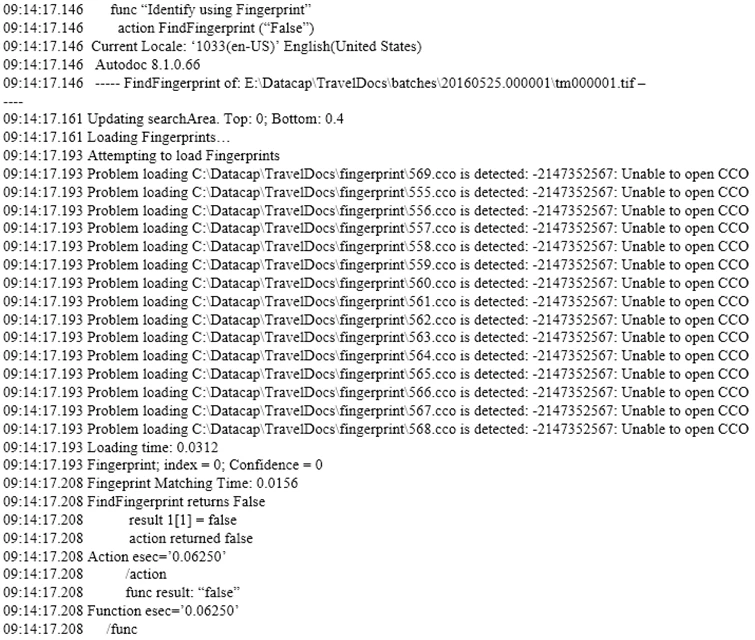

Exam C2070-994: Question 2 - Image 3

profiler_rrs.log "" travelDocs.app needs to be updated to with the fingerprint path

pageid_rrs.log "" fingerprint database needs to be updated with the path to the fingerprints

vscan_rrs.log "" user requires read+write access to the batches folder and fingerprints folder

fixup_rrs.log "" user requires read_write access to the batches folder and travelDocs.app needs to be updated with the fingerprint path

Correct Answer: B

Question 3 of 67

A developer has created a new custom action using the IBM Datacap V9.0 and V9.0.1 custom action DDk.
Which of the following is required to install and use the custom action in datacap?

Put the DDL in the RRS folder.

Copy the DLL anywhere on the system and register it with RegAsm.

Put both the RRX file and DLL in the RRS folder and register the DLL.

Out the RRX file in the RRS folder and the DLL in the dcshared\Net folder.

Correct Answer: A

Question 4 of 67

A developer has created a new task in Datacap Studio's Task Profiles. The system uses ADSI for authentication. The task name is CreateFlatFile. The developer creates a new task in the App Managers Rulerunner tab by clicking "add new". The first entry is createFlatFile and the second entry is CreateFlatfile. The developer then goes to TMweb to make sure the group and station can run the new task.
While testing, the developer cannot get the new profile to execute.
What did the developer incorrectly configure?

The user needs right to the new task.

The case is not correct for tasks name.

No Shortcut was created for the new task.

A shortcut and user rights to the task are needed.

Correct Answer: B

Question 5 of 67

An administrator added an additional IBM Datacap server for load balancing. The solution designer has been asked to reconfigure the sample TravelDocs application to test the new load balanced configuration.
What two configuration files must be updated with the new location of the application?

Rulerunner.xml and datacap.xml

Datacap.xml and TravelDocs.app

Datacap.xml and TravelDocsAdm.mdb

TraveIDocsEng.mdb and travelDocsAdm.mdb

Correct Answer: B
