HCIP-Datacom-Core Technology V1.0

Here you have the best Huawei H12-821 practice exam questions

You have 334 total questions to study from
Each page has 5 questions, making a total of 67 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on January 3, 2026
This site is not affiliated with or endorsed by Huawei.

Question 1 of 334

To prevent inter-area routing loops, OSPF does not allow advertising routing information between two non-backbone areas and allows advertising routing information only within an area or between the backbone area and a non-backbone area. Therefore, each ABR must be connected to the backbone area.

TRUE

FALSE

Correct Answer: A

Question 2 of 334

Which of the following statements regarding OSPF packets is false?

DD packets contain all LSA information and can be used to periodically synchronize LSOB information between neighbors.

Hello packets are used to discover and maintain OSPF neighbor relationships and also can be used to elect DR and BDR on broadcast and NBMA networks.

Two routers must send Hello packets at the same interval. Otherwise, they cannot establish an OSPF neighbor relationship.

DD packets carry LSA header information to describe link state summary information.

Correct Answer: A

Question 3 of 334

Which of the following statements regarding OSPF neighbor relationship and adjacency is true?

Not all neighbors can establish adjacencies.

Neighbor relationships are selected from adjacencies to exchange routing information.

OSPF routers must establish an adjacency before exchanging information.

Adjacencies are maintained using OSPF DD packet

Correct Answer: A

Question 4 of 334

Which of the following statements regarding different LSA types is false?

LS Update packets contain complete LSA information.

LS Ack packets contain complete LSA information.

LS Request packets contain only LS Type, LS ID, and Advertising Rooter.

DD packets contain only LSA summary information, including LS Type, LS ID, Advertising Router, and LS Sequence Number.

Correct Answer: B

Question 5 of 334

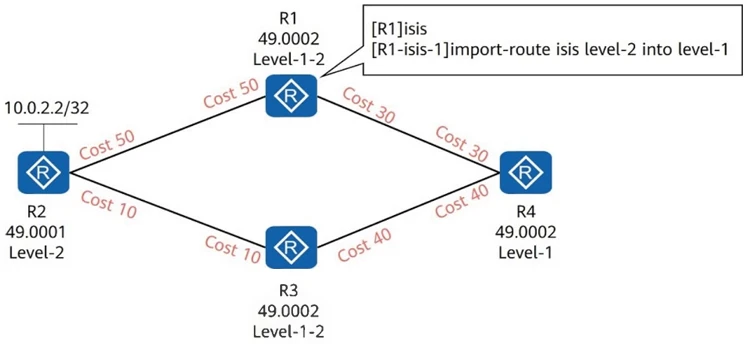

See the network shown in the following figure. Route leaking is configured on R1. In this case, R1 sends a Level-2 LSP to R3 so that R3 can learn routes on the entire network.
Exam H12-821: Question 5 - Image 1

TRUE

FALSE

Correct Answer: A
