NSE7 Enterprise Firewall - FortiOS 5.4

Here you have the best Fortinet NSE7 practice exam questions

  • You have 86 total questions to study from
  • Each page has 5 questions, making a total of 18 pages
  • You can navigate through the pages using the buttons at the bottom
  • This questions were last updated on December 18, 2025
  • This site is not affiliated with or endorsed by Fortinet.
Question 1 of 86

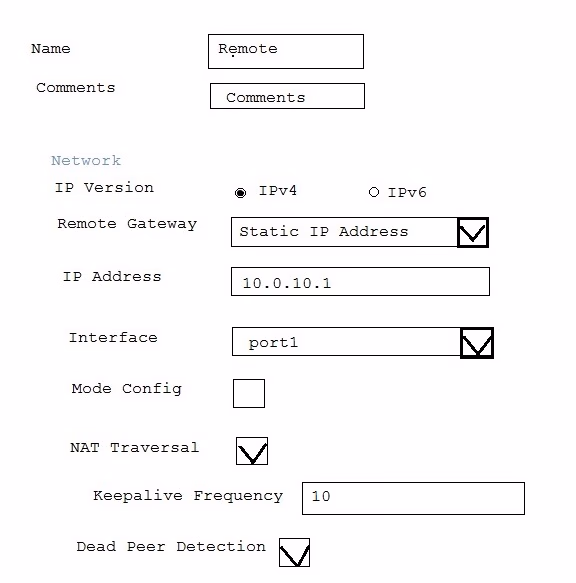

Examine the IPsec configuration shown in the exhibit; then answer the question below.
Exam NSE7: Question 1 - Image 1
An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1 diagnose debug application ike -1 diagnose debug enable
The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output. Why isn't there any output?
Correct Answer: A

The IKE real-time debug primarily shows the Phase 1 and Phase 2 negotiations. Therefore, if the tunnel is already up and running, there would be no further output displayed for regular traffic or keepalive messages as these would not trigger Phase 1 or Phase 2 negotiations. The lack of output simply indicates that there are no active negotiations occurring since the VPN tunnel is already established, which aligns with the expected behavior when the tunnel is up and stable.

Question 2 of 86
Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)
Correct Answer: A, B, C

The SIP session helper runs in the kernel, while the SIP ALG runs as a user space process. The SIP ALG supports SIP over IPv6, which the SIP helper does not. Additionally, the SIP ALG supports SIP HA failover, while the SIP session helper does not.

Question 3 of 86

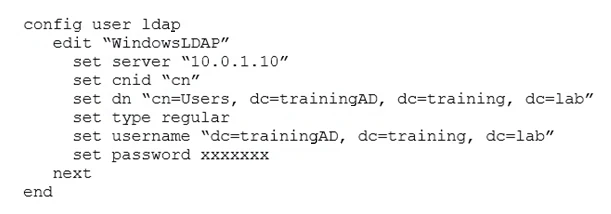

A FortiGate device has the following LDAP configuration:
Exam NSE7: Question 3 - Image 1
The administrator executed the "˜dsquery' command in the Windows LDAp server 10.0.1.10, and got the following output:
>dsquery user ""samid administrator
"CN=Administrator, CN=Users, DC=trainingAD, DC=training, DC=lab"
Based on the output, what FortiGate LDAP setting is configured incorrectly?
Correct Answer: B

Question 4 of 86
Which of the following statements is true regarding a FortiGate configured as an explicit web proxy?
Correct Answer: B

FortiGate limits the total number of simultaneous explicit web proxy users. This limit varies depending on the FortiGate model, and it includes both explicit FTP proxy and explicit web proxy users. This total limit cannot be modified by the administrator.

Question 5 of 86
A corporate network allows Internet Access to FSSO users only. The FSSO user student does not have Internet access after successfully logged into the
Windows AD network. The output of the "˜diagnose debug authd fsso list' command does not show student as an active FSSO user. Other FSSO users can access the Internet without problems. What should the administrator check? (Choose two.)
Correct Answer: A, B

The user student must not be listed in the CA's ignore user list, as being on this list would prevent the user from appearing in the FSSO monitored users list. Additionally, the user student must belong to one or more of the monitored user groups, since only users in monitored groups are tracked and allowed access. These two checks ensure that the user is recognized and authorized by the FortiGate system to access the internet.
