Fortinet NSE6_SDW_AD-7.6 Practice Questions & Answers

Question 6 of 35

You are configuring SD-WAN to load balance network traffic and you want to take into account the link quality.
Which two facts should you consider? (Choose two.)

The best quality strategy supports only the round-robin hash mode.

When applicable, FortiGate load balances the traffic through all members that meet the SLA target.

You can select the best quality strategy and allow SD-WAN load balancing.

You can select the lowest cost service level agreement (SLA) strategy and allow SD-WAN load balancing.

Question 7 of 35

Refer to the exhibits.
Exam nse6-sdw-ad-7-6: Image 1

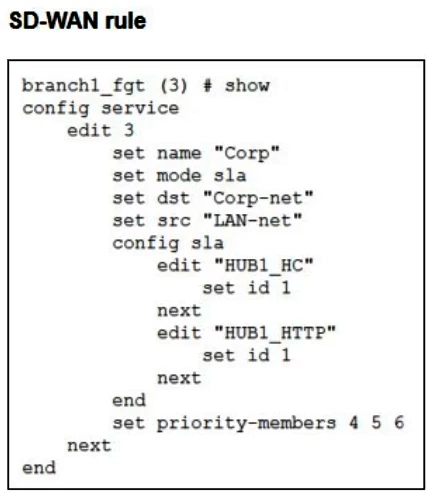

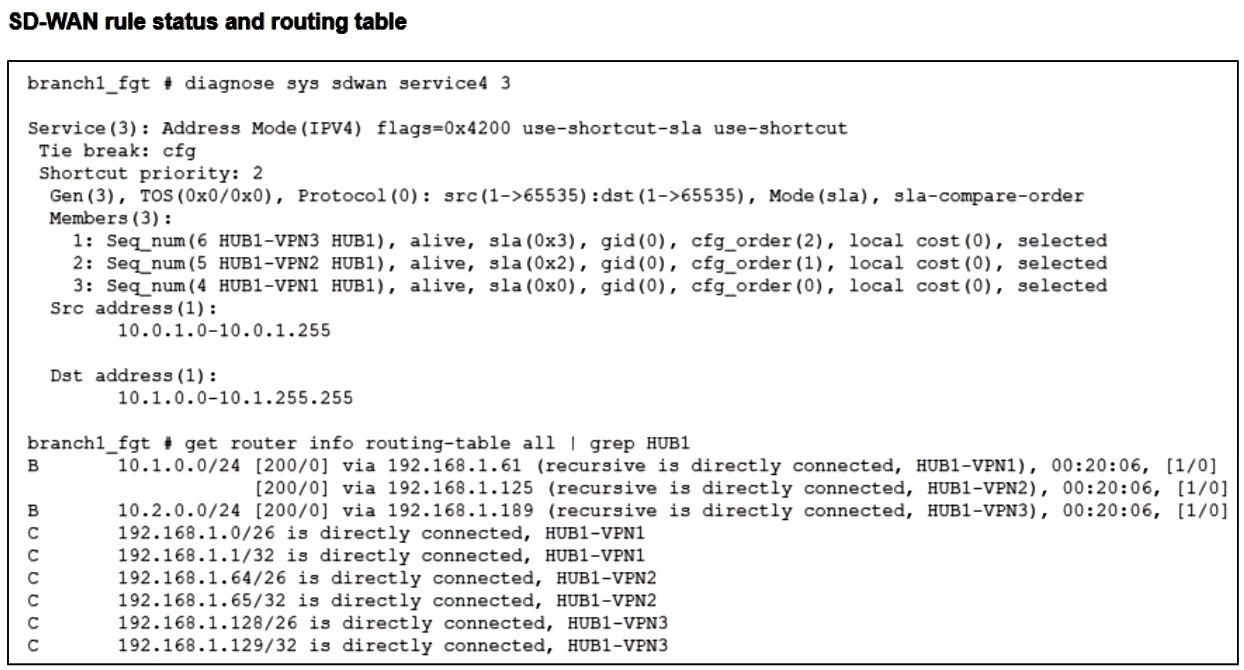

The configuration of an SD-WAN rule and the corresponding rule status and routing table are shown.
You want to understand the expected behavior for traffic that matches the SD-WAN rule, at the time the output was collected.
Based on the exhibits, which behavior can you expect for traffic that matches the SD-WAN rule?

The traffic will be routed over HUB1-VPN1.

The traffic will be load balanced across all three overlays.

The traffic will be routed over HUB1-VPN2.

The traffic will be routed over HUB1-VPN3.

Question 8 of 35

You configure the overlay tunnels for an SD-WAN hub-and-spoke topology defined with IPsec tunnels, BGP on loopback and dynamic BGP.
Which are two recommended IPsec settings for this topology? (Choose two.)

On the hub, set the tunnel type to static.

On the spoke, set the parameter net-device to enable.

On the spoke, configure the parameter localid.

On the hub, set the parameter mode-cfg to enable.

Question 9 of 35

Refer to the exhibits.
Exam nse6-sdw-ad-7-6: Image 1

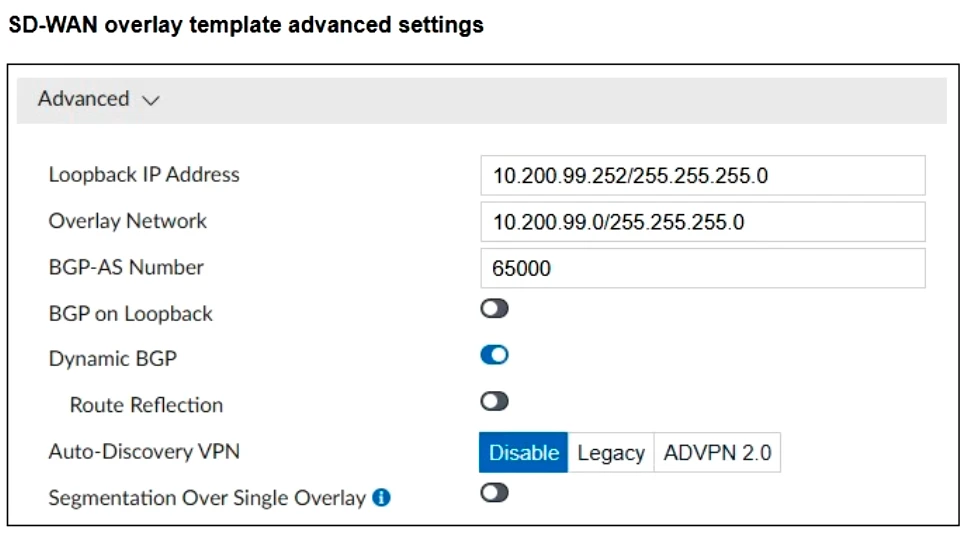

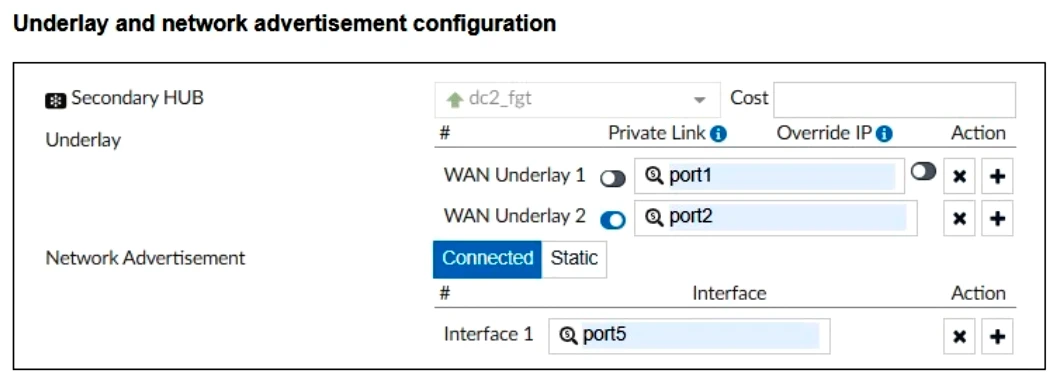

The SD-WAN overlay template, advanced settings, and the underlay and network advertisement settings are shown.
These are the configurations for the secondary hub of a dual-hub SD-WAN topology created with the FortiManager SD-WAN overlay orchestrator.
Which two conclusions can you draw from the information shown in the exhibits? (Choose two.)

FortiManager will create an overlay tunnel on the port2 interface.

FortiManager will define port5 as a BGP neighbor.

FortiManager will create an overlay tunnel on the port1 interface.

FortiManager will define port2 as a BGP neighbor.

Question 10 of 35

An SD-WAN member is no longer used to steer SD-WAN traffic. The administrator updated the SD-WAN configuration and deleted the unused member. After the configuration update, users report that some destinations are unreachable. You confirm that the affected flow does not match an SD-WAN rule.
What could be a possible cause of the traffic interruption?

FortiGate administratively brings down interfaces when they are removed from the SD-WAN configuration.

FortiGate, with SD-WAN enabled, cannot route traffic through interfaces that are not SD-WAN members.

FortiGate can remove some static routes associated with an interface when the member is removed from SD-WAN.

FortiGate removes the layer 3 settings for interfaces that are removed from the SD-WAN configuration.
