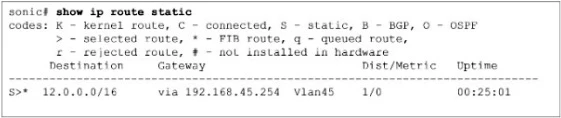

Provide a route to the 12.0.0.0 network.

Provide a route to the 192.168.45.0 network.

Verify that the 12.0.0.0 network is active and reachable.

Verify that devices in VLAN 45 are reachable.

VLAN translation is not supported on MC-LAG port channel interfaces.

Trunk or access ports can be configured as members of any VLANs that are not used as an SVLAN.

By default, VLAN stacking is enabled on Z9432F-ON switches.

The SVLAN header is replaced with a VNI if the provider network uses a VXLAN overlay.

SVLAN configuration for both Q-in-Q VLAN tunneling and VLAN translation is possible on the same interface.

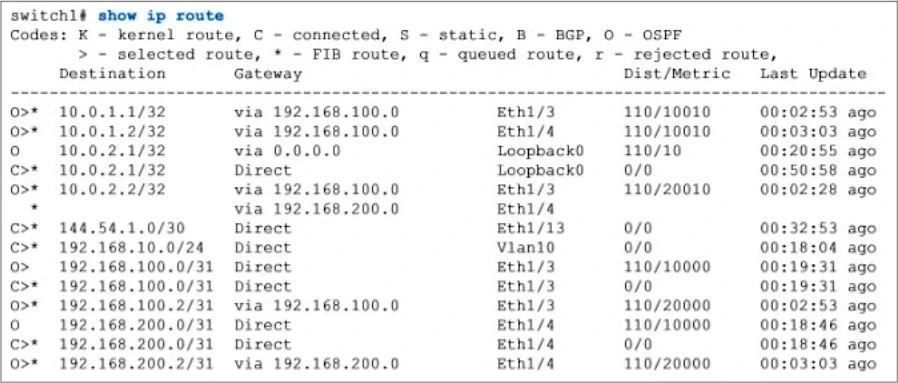

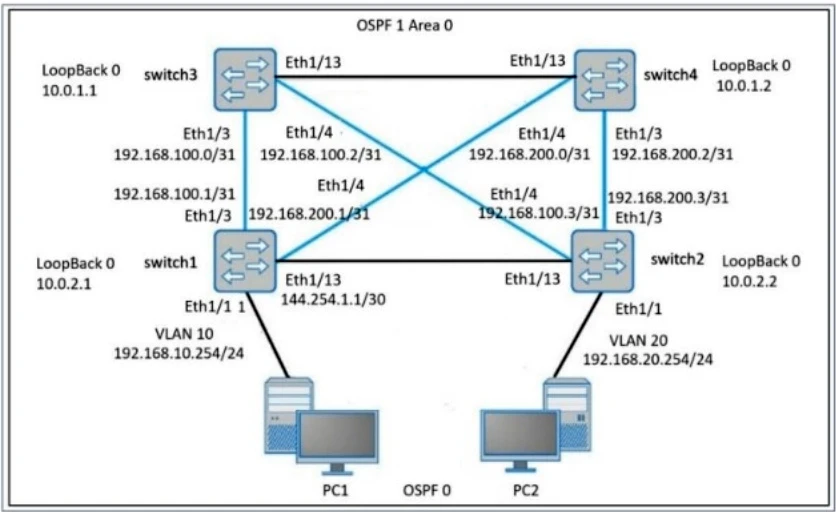

The ping is successful because there is a route to 10.0.1.1, which is connected to 10.0.2.2, which is connected to PC2.

The ping is unsuccessful because there is no route to the VLAN 10 gateway address of 192.168.10.254.

The ping is successful because there are two routes from switch1 to switch2 which are connected to PC2.

The ping is unsuccessful because there is no route from switch 1 to the 192.168.20.0 network.

Configure the access mode for the switch port.

Delete VLAN 40.

Shut down the relevant interface.

Remove the current access VLAN configuration.

Enter it into the relevant interface.

2

6

4
