CCNP Implementing Cisco IP Routing

Here you have the best Cisco ROUTE v2.0 practice exam questions

You have 437 total questions to study from
Each page has 5 questions, making a total of 88 pages
You can navigate through the pages using the buttons at the bottom
This questions were last updated on May 14, 2025
This site is not affiliated with or endorsed by Cisco.

Question 1 of 437

A network engineer notices that transmission rates of senders of TCP traffic sharply increase and decrease simultaneously during periods of congestion. Which condition causes this?

global synchronization

tail drop

random early detection

queue management algorithm A

Correct Answer:

Question 2 of 437

Which three problems result from application mixing of UDP and TCP streams within a network with no QoS? (Choose three.)

starvation

jitter

latency

windowing

lower throughput

Correct Answer: A, C, E

Question 3 of 437

Which method allows IPv4 and IPv6 to work together without requiring both to be used for a single connection during the migration process?

dual-stack method

6to4 tunneling

GRE tunneling

NAT-PT A

Correct Answer:

Question 4 of 437

Which statement about the use of tunneling to migrate to IPv6 is true?

Tunneling is less secure than dual stack or translation.

Tunneling is more difficult to configure than dual stack or translation.

Tunneling does not enable users of the new protocol to communicate with users of the old protocol without dual-stack hosts.

Tunneling destinations are manually determined by the IPv4 address in the low-order 32 bits of IPv4-compatible IPv6 addresses. C

Correct Answer:

Question 5 of 437

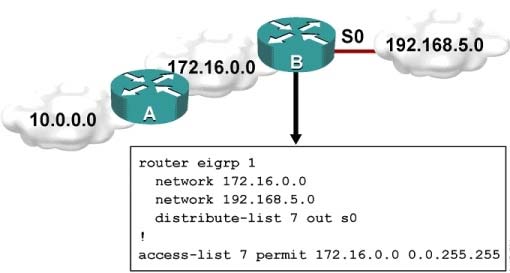

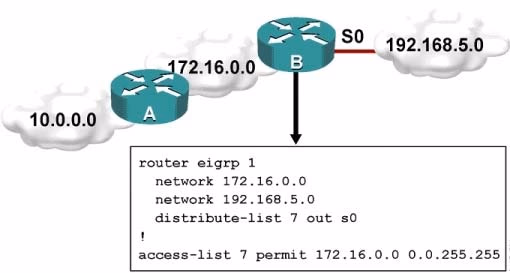

Refer to the exhibit.

Which one statement is true?

Traffic from the 172.16.0.0/16 network will be blocked by the ACL.

The 10.0.0.0/8 network will not be advertised by Router B because the network statement for the 10.0.0.0/8 network is missing from Router B.

The 10.0.0.0/8 network will not be in the routing table on Router B.

Users on the 10.0.0.0/8 network can successfully ping users on the 192.168.5.0/24 network, but users on the 192.168.5.0/24 cannot successfully ping users on the 10.0.0.0/8 network.

Router B will not advertise the 10.0.0.0/8 network because it is blocked by the ACL.

Correct Answer: C

The network statement on Router B includes only 172.16.0.0/16 and 192.168.5.0/24 networks. The 10.0.0.0/8 network is not included in Router B's EIGRP configuration. Since Router B does not have a network statement for 10.0.0.0/8, it will not form an EIGRP adjacency for that network, and consequently, routes for the 10.0.0.0/8 network will not be included in Router B's routing table.
