How are written documentation and verbal communication of software architectures related? Please mark the following statements as true or false. (Assign all answers.)
Hot Area:
Question 6 of 43

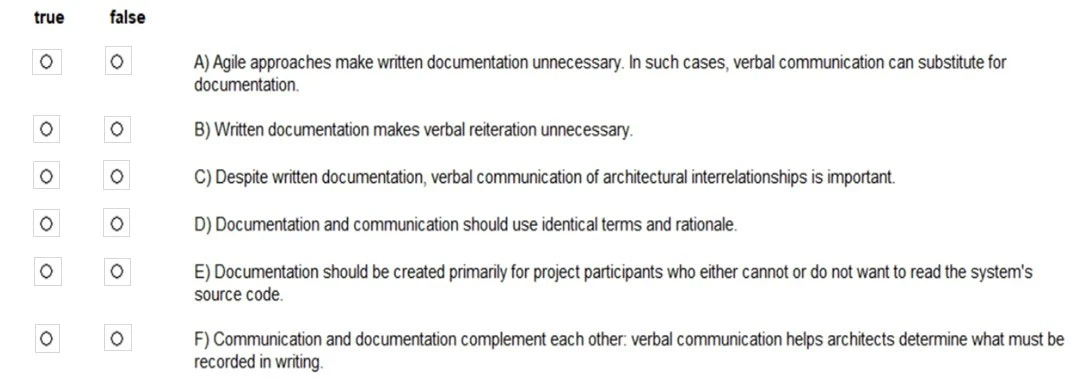

HOTSPOT -
How are written documentation and verbal communication of software architectures related? Please mark the following statements as true or false. (Assign all answers.)
Hot Area:
How are written documentation and verbal communication of software architectures related? Please mark the following statements as true or false. (Assign all answers.)
Hot Area:
Correct Answer:
Question 7 of 43
Name the three most important fields of template-based architecture documentation. (Choose three.)
Correct Answer: A, B, D
In template-based architecture documentation, it is crucial to describe module structures (white boxes), individual architectural modules and their external interfaces (black boxes), and to use a standardized document structure. Describing module structures helps in understanding the composition and hierarchy within the system. The description of individual architectural modules along with their external interfaces ensures clear communication about the functionality and interaction points of different parts of the system. A standardized document structure helps maintain consistency, readability, and ease of navigation within the documentation.
Question 8 of 43
HOTSPOT -
Which characteristics of a black-box building block are you able to specify as an architect? (Assign all answers.)
Hot Area:
Which characteristics of a black-box building block are you able to specify as an architect? (Assign all answers.)
Hot Area:
Correct Answer:
Question 9 of 43
HOTSPOT -
Which characteristics of a building block are only visible in the whitebox view, and for which characteristics does the blackbox view suffice? (Assign all answers.)
Hot Area:
Which characteristics of a building block are only visible in the whitebox view, and for which characteristics does the blackbox view suffice? (Assign all answers.)
Hot Area:
Correct Answer:
Question 10 of 43
Which of the following techniques are best suited to illustrate the interaction of runtime building blocks? Select the four most suitable techniques.
Correct Answer: A, B, C, D
To illustrate the interaction of runtime building blocks, the techniques most suitable are Activity diagrams, Sequence diagrams, State diagrams, and Flowcharts. Activity diagrams depict the workflow from one activity to another, providing a clear visualization of sequence and conditions for coordination. Sequence diagrams detail how objects operate with one another and in what sequence, making them ideal for dynamic behavior. State diagrams describe the state changes of system entities, showing interactions as transitions between states. Flowcharts are effective in visualizing the sequence of steps and their interactions in the process. Other options such as Class diagrams focus on static structure, and depictions of screen flows, tabular descriptions, and numbered lists do not provide sufficient detail to illustrate interactions dynamically.
