In preparation for the deployment of a new environment for a customer, which of the following mappings are correct per PS best practices?

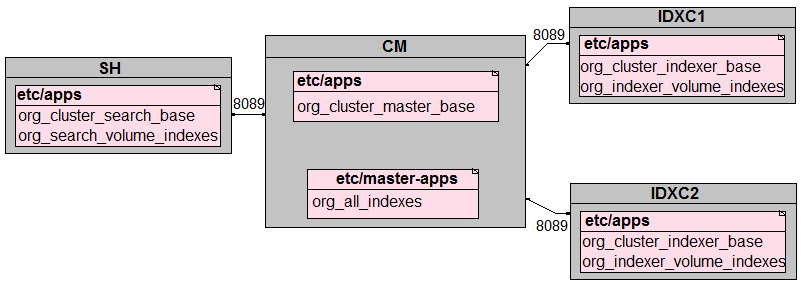

A.
B.

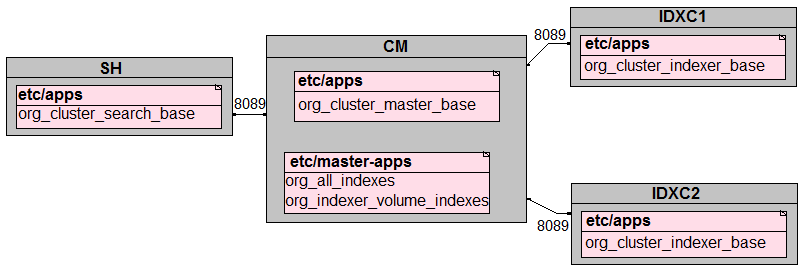

C.

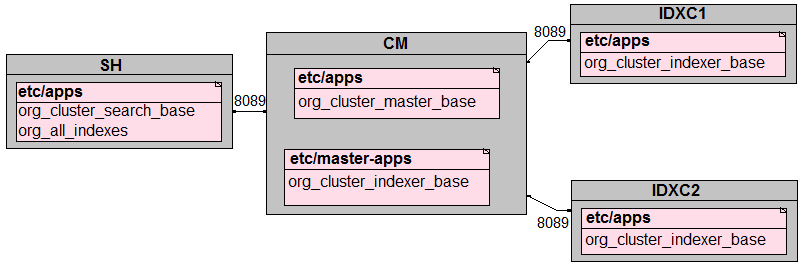

D.
SPLK-3003 Exam QuestionsBrowse all questions from this exam
SPLK-3003 Exam - Question 58
Show AnswerHide Answer
Correct Answer:

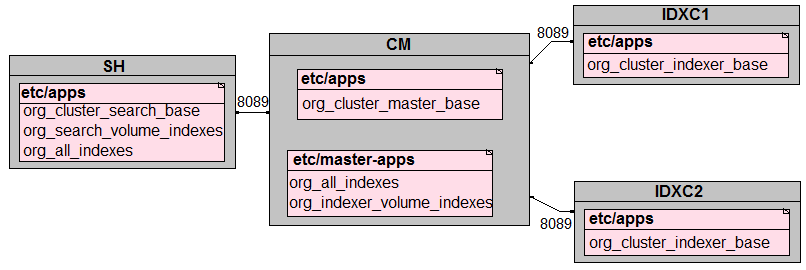

The correct mapping for deployment per PS best practices is represented by option B. In this configuration, the search head (SH) correctly has the configurations 'org_cluster_search_base', 'org_search_volume_indexes', and 'org_all_indexes' under etc/apps, reflecting necessary components for managing search configurations and index volumes. The Cluster Manager (CM) has 'org_cluster_master_base' under etc/apps and both 'org_all_indexes' and 'org_indexer_volume_indexes' under etc/master-apps, ensuring that indexing configurations and volume setups are centrally managed and distributed correctly. On the indexers (IDX1 and IDXC2), 'org_cluster_indexer_base' is located under etc/apps, indicating they have received the required configurations from the CM as per best practices. Thus, B correctly illustrates the best practice mappings for the deployment of a new environment.
Discussion
5 commentsChantreyC
Jun 16, 2021I think B is right, the Indexers are showing etc/apps. Any config bundle would push to etc/slave-apps so it makes sense that what we see on the indexers doesn't match with etc/master-apps. B has the right config on all the other elements, the config bundle would just need to be pushed.
pentel
Jul 10, 2022I think so, too. Also, what I sees in SCI 158p is the composition of SHC, but there is no contradiction between the APP of CM and the APP of SH.
jugulinho
Apr 28, 2021i think D
splunkingyeti
Jun 9, 2021I mean it is C. The only reason why i wouldn't say D, is due to the fact that only one of the apps from the CM has been pushed to the members.
pbandj12
Sep 14, 2021agreed
RedYeti
Oct 28, 2022Correct answer is D. Explanation: Not A because "org_indexer_volume_indexes" should be pushed by CM as "org_all_indexes" so it shouldn't be in "/etc/apps" Not C because "org_cluster_indexer_base" shouldn't be in "master-apps" on CM and in "/etc/apps" in IDX ate the same time. it is one or the other, not both. B and D are the same except that in B, SH have "org_all_indexes" and "org_search_volume_indexes". SH don't need both, "org_search_volume_indexes" is sufficient so correct answer is D.
RedYeti
Dec 1, 2022EDIT: Correct answer is B. B and D are the same except that in D, search head don't have "org_all_indexes" and "org_search_volume_indexes" so correct answer is B.
benjaminabbenhues
Aug 18, 2024only logical answer is C. SH needs to know the indexes to search (org_all_indexes) and need config for the cluster to know its an search-head (org_cluster_search_base) Org_cluster_master_base is needed for the CM to know he is the CM and it need to tel its peer that there peers so org_cluster_indexer_base need to be deployed.
