HOTSPOT -
You play to deploy an Azure virtual machine named VM1 by using an Azure Resource Manager template.
You need to complete the template.
What should you include in the template? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

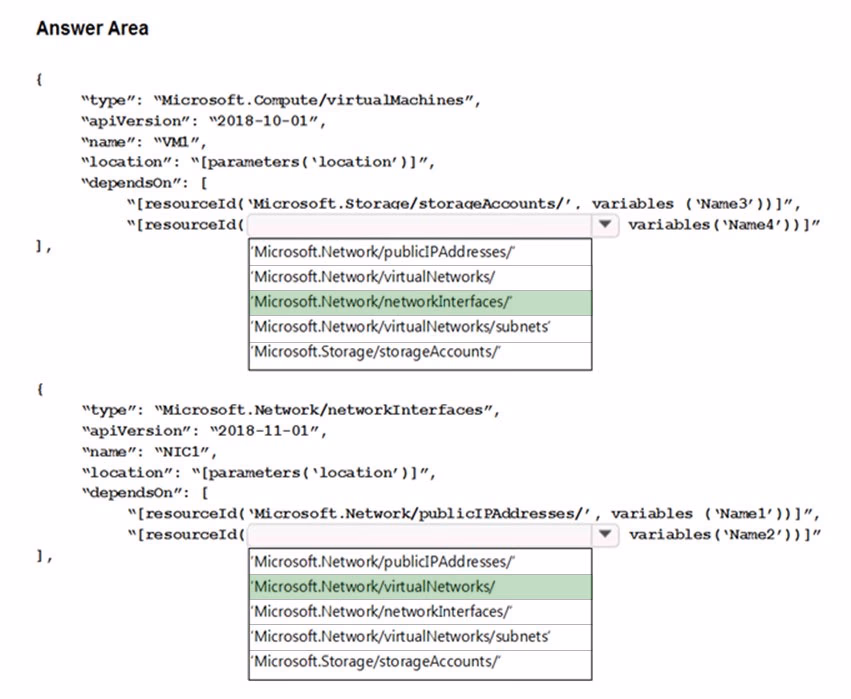

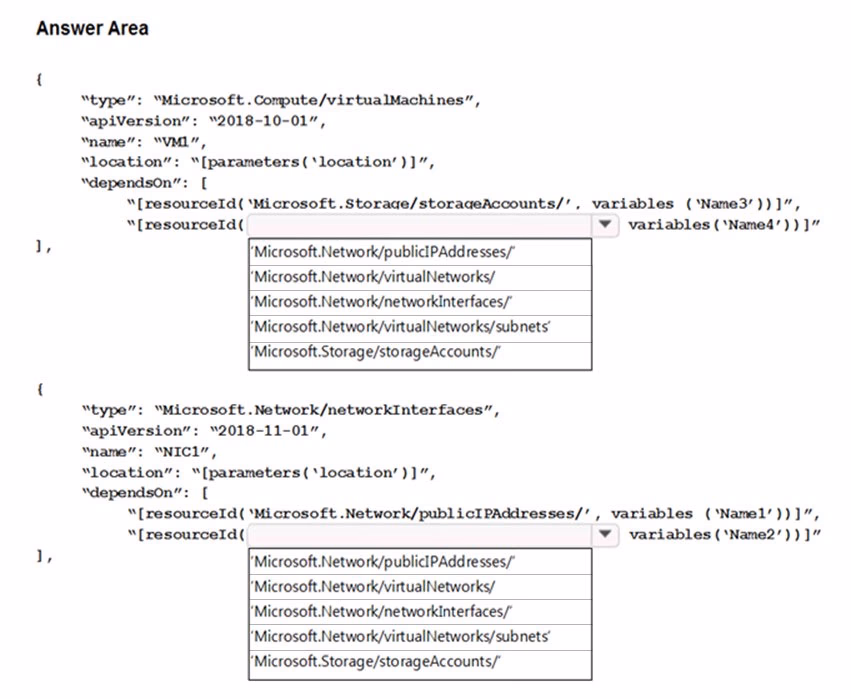

Hot Area:
Within your template, the dependsOn element enables you to define one resource as a dependent on one or more resources. Its value can be a comma- separated list of resource names.
Box 1: 'Microsoft.Network/networkInterfaces'
This resource is a virtual machine. It depends on two other resources:
Microsoft.Storage/storageAccounts
Microsoft.Network/networkInterfaces
Box 2: 'Microsoft.Network/virtualNetworks/'
The dependsOn element enables you to define one resource as a dependent on one or more resources. The resource depends on two other resources:
Microsoft.Network/publicIPAddresses
Microsoft.Network/virtualNetworks
References:
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-tutorial-create-templates-with-dependent-resources
Correct
Not Correct. VM depends on NI, Storage, NI should depends on Subnet and Public IP.

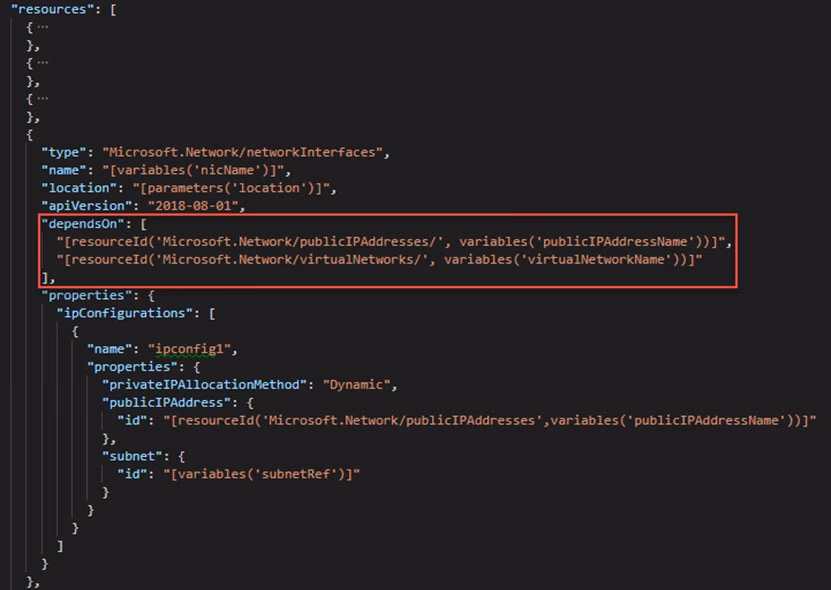

Given Answer is correct, to understand the dependency refers to the diagram. https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/media/template-tutorial-create-templates-with-dependent-resources/resource-manager-template-dependent-resources-diagram.png
Given answer is correct. See steps 6 and 7 here: https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/template-tutorial-create-templates-with-dependent-resources?tabs=CLI#explore-the-template
repeated question - 3
another repeat.
repeat topic1 q3
Not Correct. VM depends on NI, Storage, NI should depends on Subnet and Public IP.
Exactly
Check the next question: It needs both subnet and vnet. The second choice does not look correct to me.
I suspect it is because there are other objects below /virtualNetworks/ that the NIC is dependant on - aside form Subnets. According to MS templates the given answer is correct
Correct answer. Its network interfaces and Virtual network Correct Answer. Its network intera https://docs.microsoft.com/en-us/azure/virtual-machines/windows/ps-template
What about the default subnet? with it, you wouldn't need to specify one
For the NIC either the vnet or subnet are possible answers but the subnet makes more sense. The resourceid function can accept multiple segments in the resource type https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/template-functions-resource#resourceid
