HOTSPOT
-
You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. Both subnets contain virtual machines.

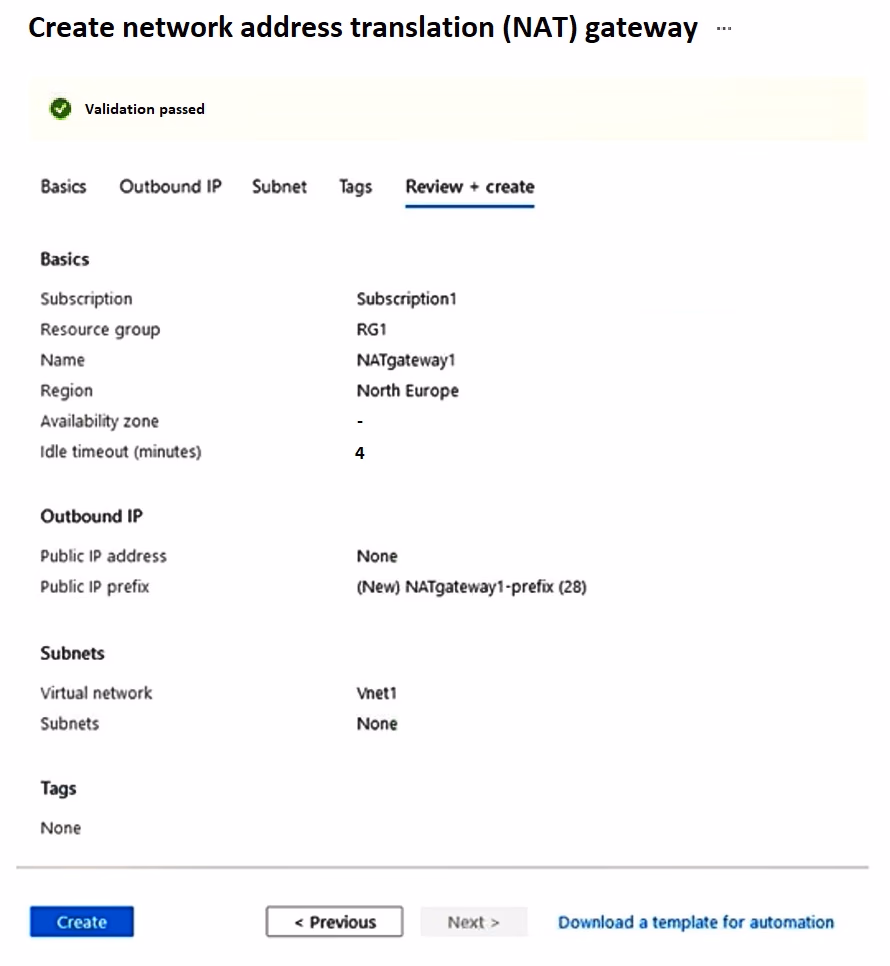

You create a NAT gateway named NATgateway1 as shown in the following exhibit.

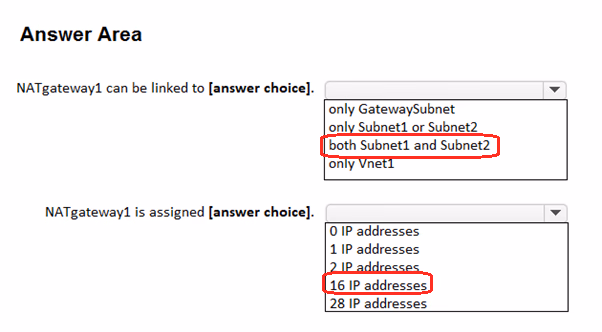

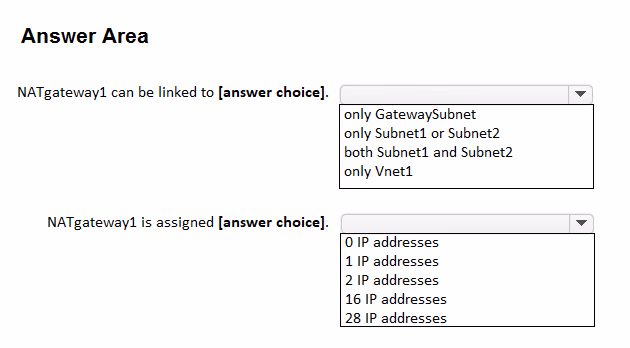

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
NAT Gateway can be associated to multiple subnets as long as they are in the same VNET. The (28) indicates that the public IP prefix is a /28, which allows 16 IP addresses. Correct answer
Why not VNAT1? Technically Vnet1 has Subnet 1 & Subnet 2, so what might be the difference?
Because of this: "NAT gateway can be associated to an Azure Firewall subnet in a hub virtual network and provide outbound connectivity from spoke virtual networks peered to the hub." - https://learn.microsoft.com/en-us/azure/nat-gateway/nat-overview
Because of this: "NAT gateway can be associated to an Azure Firewall subnet in a hub virtual network and provide outbound connectivity from spoke virtual networks peered to the hub." - https://learn.microsoft.com/en-us/azure/nat-gateway/nat-overview
https://learn.microsoft.com/en-us/azure/virtual-network/nat-gateway/faq#can-nat-gateway-be-attached-to-multiple-subnets
Same Vnet add all SubNets. SUBNET 1 2 4 8 [16] 32 64 128 256 HOST 256 128 64 32 [16] 8 4 2 1 MASK /24 /25 /26 /27 [/28]/29 /30 /31 /32
Answer is correct.
Answer is correct - both subnets and 16 addresses as it is 2 to power of 4, Note: NAT Gateway - can have any subnets except for the following Subnet that contains any of the following Basic IP or Basic Load balancer has existing NAT Gateway VPN Gateway subnet
