AZ-303 Exam - Question 216

Question

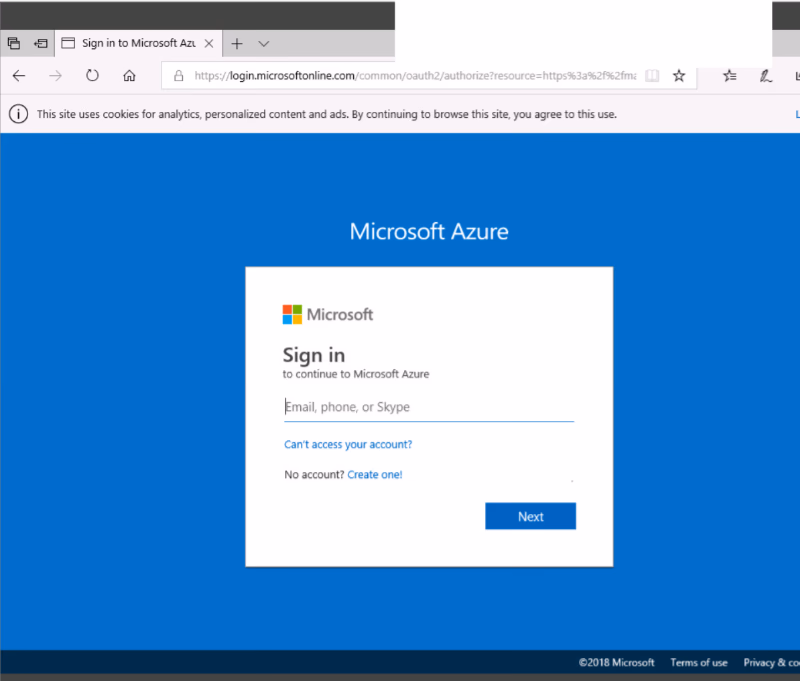

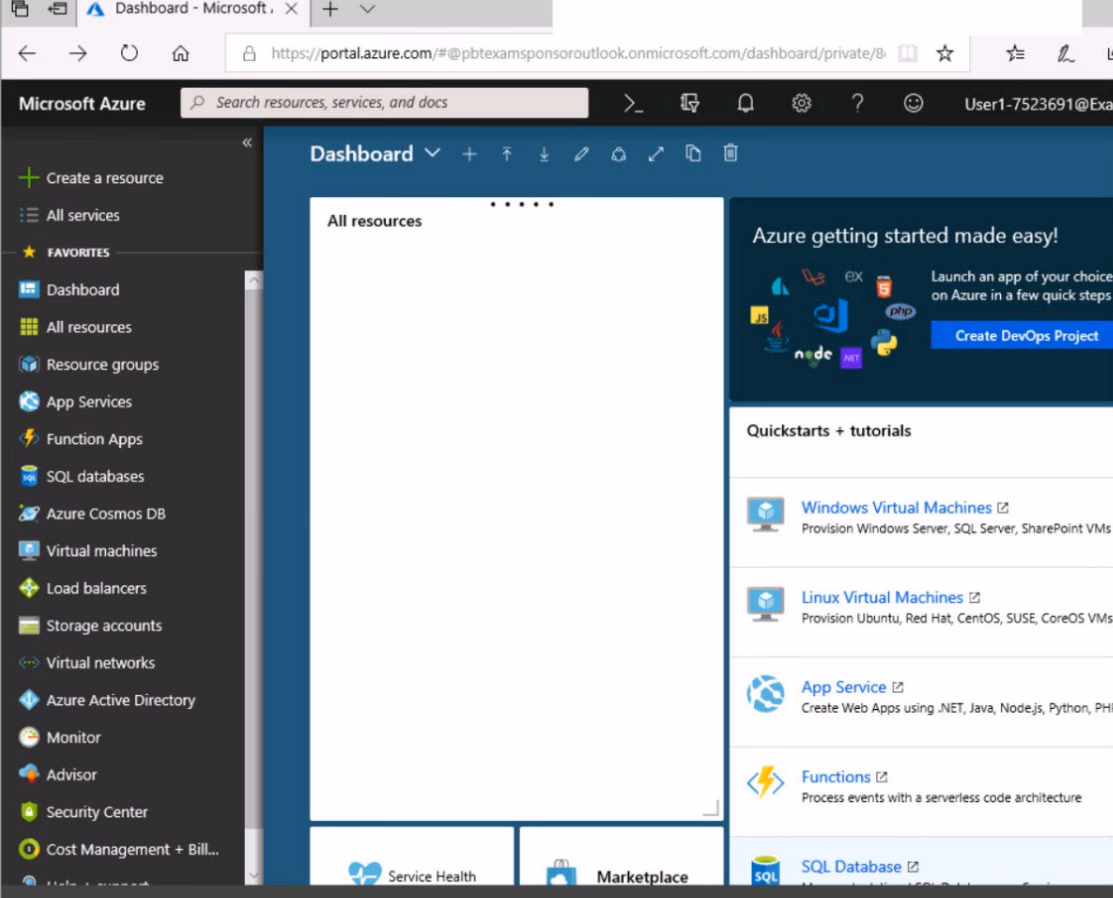

SIMULATION -Click to expand each objective. To connect to the Azure portal, type https://portal. azure. com in the browser address bar. When you are finished performing all the tasks, click the `˜Next' button. Note that you cannot return to the lab once you click the `˜Next' button. Scoring occur in the background while you complete the rest of the exam. Overview -The following section of the exam is a lab. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e. g. , copy and paste, ability to navigate to external websites) will not be possible by design. Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the task, if you successfully perform it, you will earn credit for that task. Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided. Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab. To start the lab -You may start the lab by clicking the Next button. You plan to deploy several Azure virtual machines and to connect them to a virtual network named VNET1007. You need to ensure that future virtual machines on VNET1007 can register their name in an internal DNS zone named corp8548984. com. The zone must NOT be hosted on a virtual machine. What should you do from Azure Cloud Shell?To complete this task, start Azure Cloud Shell and select PowerShell (Linux), Click Show Advanced Settings, and then enter corpdata7523690n1 in theStorage account text box and File1 share text box. Click Create storage, and then complete the task.

Examice · Accepted Answer

See solution below.

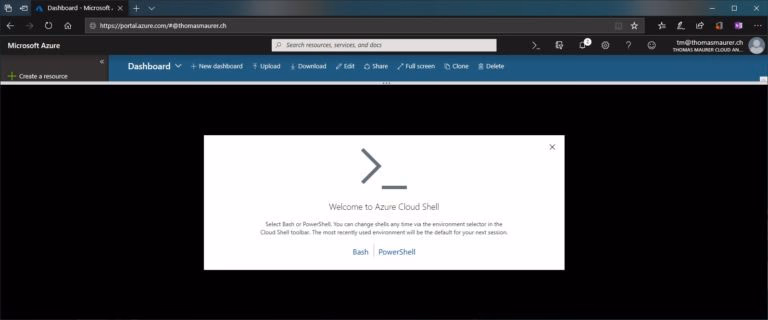

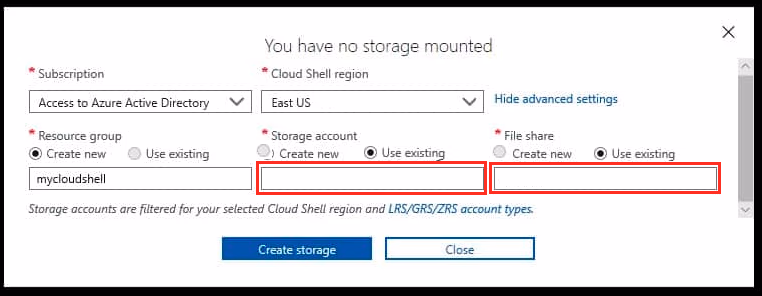

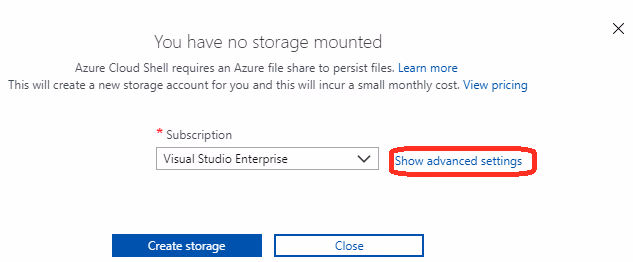

Step 1: Launch Cloud Shell from the top navigation of the Azure portal. Step 2: Select PowerShell -When you start the Azure Cloud Shell for the first time, you will be prompted to create a storage account in order to associate a new Azure File Share to persist files across sessions. Step 3: Click Show Advanced settings. Step 4: Enter corp8548984n1 in the Storage account text box and File1 share text box. Click Create storage. Step 5: Enter the following command at the powershell command prompt:New-AzDnsZone -Name "corp8548984. com"-ResourceGroupName "mycloudshell"-ZoneType Private-RegistrationVirtualNetworkId VNET1007Note: A DNS zone is created by using the New-AzDnsZone cmdlet with a value of Private for the ZoneType parameter. References:https://docs. microsoft. com/en-us/azure/dns/private-dns-getstarted-powershell https://docs. microsoft. com/en-us/azure/cloud-shell/quickstart-powershell https://docs. microsoft. com/en-us/powershell/module/az. dns/new-azdnszone?view=azps-1. 5. 0.

gvagav · Answer

The answer provided uses "New-AzDnsZone" but when I try it I get this message:

"New-AzDnsZone: Creation of private DNS zones using this API is no longer allowed. Please use privatednszones resource instead of dnszones resource."

If the question is still in the exam, then perhaps it should be the following instead?

Create new private DNS zone:
New-AzPrivateDnsZone -Name "corp8548984.com" -ResourceGroupName "mycloudshell"
Create a link:
New-AzPrivateDnsVirtualNetworkLink -ZoneName "corp8548984.com" -ResourceGroupName "mycloudshell" -Name "mylink" -VirtualNetworkId "VNET1007" -EnableRegistration

Mikeliz · Answer

New-AzPrivateDnsZone -Name corp8548984.com -ResourceGroupName mycloudshell
This will do, you have no business creating or linking vnet to answer the question.

MarcMouelle · Answer

I tested it and it works fine.
Install-Module -Name Az.PrivateDns -force

$backendSubnet = New-AzVirtualNetworkSubnetConfig -Name backendSubnet -AddressPrefix "10.2.0.0/24"
$vnet = New-AzVirtualNetwork `
  -ResourceGroupName MyAzureResourceGroup `
  -Location eastus `
  -Name myAzureVNet `
  -AddressPrefix 10.2.0.0/16 `
  -Subnet $backendSubnet

$zone = New-AzPrivateDnsZone -Name private.contoso.com -ResourceGroupName MyAzureResourceGroup

$link = New-AzPrivateDnsVirtualNetworkLink -ZoneName private.contoso.com `
  -ResourceGroupName MyAzureResourceGroup -Name "mylink" `
  -VirtualNetworkId $vnet.id -EnableRegistration

Stevezzc · Answer

only private dns supports vnet link for record registration. To create a new private dns, refer to https://docs.microsoft.com/en-us/azure/dns/private-dns-getstarted-powershell#create-a-private-dns-zone

Celtic_Bear · Answer

I think this is the solution
https://docs.microsoft.com/en-us/azure/dns/private-dns-getstarted-portal

Stephan99 · Answer

see also https://docs.microsoft.com/en-us/azure/dns/private-dns-overview

VALEARN · Answer

Just create a private dns zone and set the virtual network link to autoenabled.   https://docs.microsoft.com/en-us/azure/dns/private-dns-overview?WT.mc_id=Portal-Microsoft_Azure_PrivateDNS

Ramkid · Answer

As the requirement is to do is from cloudshell, may be this one https://docs.microsoft.com/en-us/azure/dns/private-dns-getstarted-powershell

panschopito · Answer

this must be do with cloudshell (the command are suggested by cli using --help)
create a private zone:
#az network private-dns zone create --resource-group MyResourceGroup --name www.mysite.com
Create a Private DNS zone using a fully qualified domain name.
link the private zone to the vnet:
#az network private-dns link vnet create --resource-group MyResourceGroup --name MyLinkName --zone-name www.mysite.com --virtual-network MyVirtualNetworkId --registration-enabled False
Create a virtual network link to the specified Private DNS zone.
out of question, tested on my lab:
make a deploy of vm and record type "A" is created in the zone.

panschopito · Answer

this labs is with cloudshell
1.- create a private zone example:
az network private-dns link vnet create --name MyLinkName --registration-enabled true --resource-group MyResourceGroup --virtual-network MyVirtualNetworkId --zone-name   www.mysite.com

2.- link the private zone to the subnet example:

az network private-dns zone create --resource-group MyResourceGroup --name www.mysite.com

result:
when add a VM to the VNET, a dns record type "A" is created.
