AZ-303 Exam - Question 230


HOTSPOT -

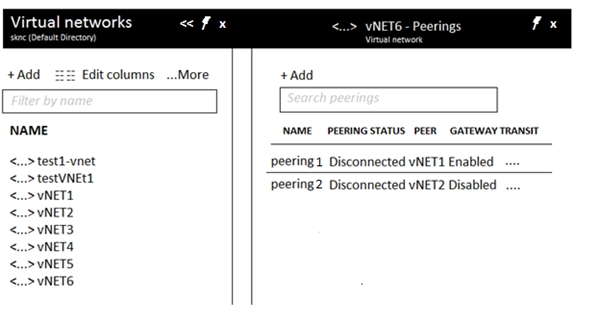

You have peering configured as shown in the following exhibit.

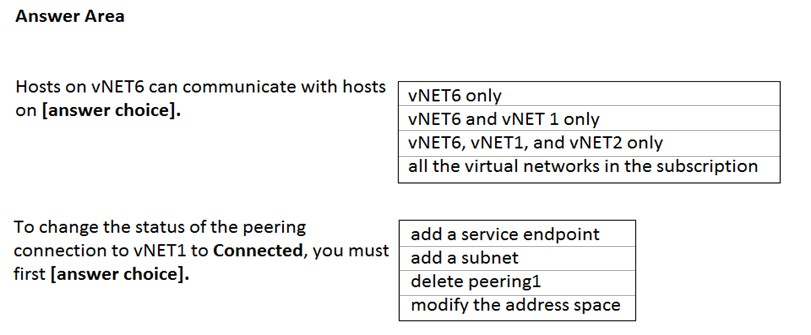

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.

NOTE: Each correct selection is worth one point.

Hot Area:

Show Answer

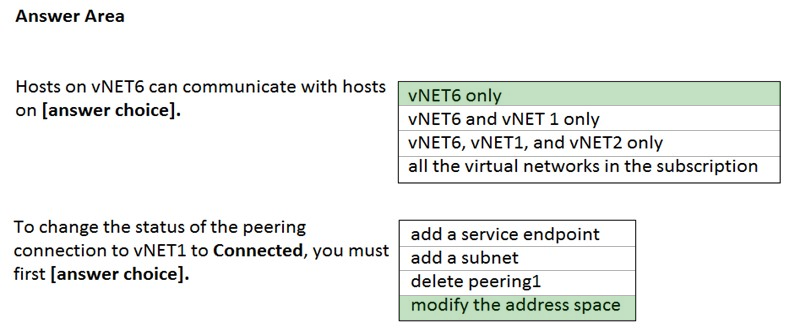

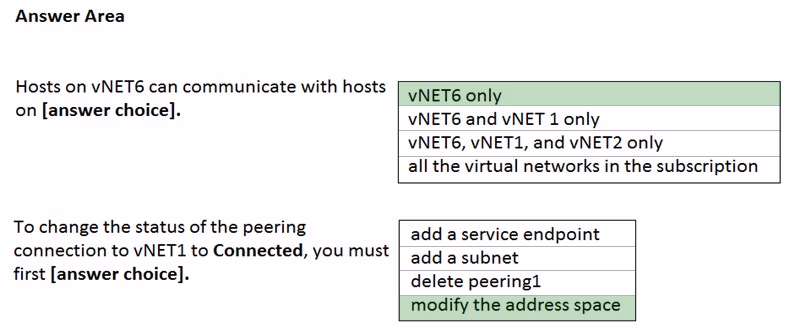

Correct Answer:

Box 1: vNET6 only -

Box 2: Modify the address space -

The virtual networks you peer must have non-overlapping IP address spaces.

References:

https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-manage-peering#requirements-and-constraints

Discussion

9 comments
Sign in to comment
SyntaxError
Jan 2, 2021

If your VNet peering connection is in a disconnected state, it means that one of the links created was deleted. In order to re-establish a peering connection, you will need to delete the link and recreate it. Ref: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-faq#vnet-peering :

MichaelCWWong
Jan 3, 2021

Agreed on your explanation, however the possible option is "Delete peering" only but not "Delete then recreate peering"

Jamesat
Jan 28, 2021

Its states 'first' so you would delete and then recreate.

rdemontis
Jul 21, 2021

You are right! Thanks for explanation

snobrega
Jan 3, 2021

Answer 1 - vNet6 only 2 - "Delete Peering1"

yassali
Jan 6, 2021

i belive it will Box1 :Vnet6 only Box2:Delete peering1 as how to modify the add space without delete the peering

sqlbuddy123
Feb 24, 2021

Box2 : Delete Peering 1 To resolve this issue, delete the peering from both virtual networks, and then re-create them. https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-troubleshoot-peering-issues

syu31svc
Aug 30, 2021

VNet6 is disconnected from the the other VNets so hosts can only communicate on VNet6 itself https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-faq#vnet-peering If your VNet peering connection is in a Disconnected state, it means one of the links created was deleted. In order to re-establish a peering connection, you will need to delete the link and recreate it. 2nd dropdown is delete peering1

AmitRoy
Jan 26, 2021

Box2 - delete peering1

betamode
May 30, 2021

For 2nd box, "Delete peering 1 is the right option". Also mentioned here - https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-troubleshoot-peering-issues

DNeo
Mar 20, 2021

Question is lacking details, like address space per vnet hence it's not logical to arrive at correct answer

demonite
Apr 8, 2021

yeah but some logic is that GW transit is enabled so no need for endpoints. Since there is not info on addresses or vNets then all that's left is to delete the peering and recreate it. Perhaps it was deleted from the other peer and just needs recreating and this is the only logical thing to do imo if we font have info on vnets/subnets

AD3
Feb 12, 2022

Answer is correct. Because the only option provided here is "modify the address space" which will involve delete peering, add/modify address space & create peering. So all three operations are implied to get the peering working. Just the delete operation is not useful.
