HOTSPOT -
You have an Azure subscription named Subscription1 that contains a virtual network named VNet1. You add the users in the following table.
Which user can perform each configuration? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

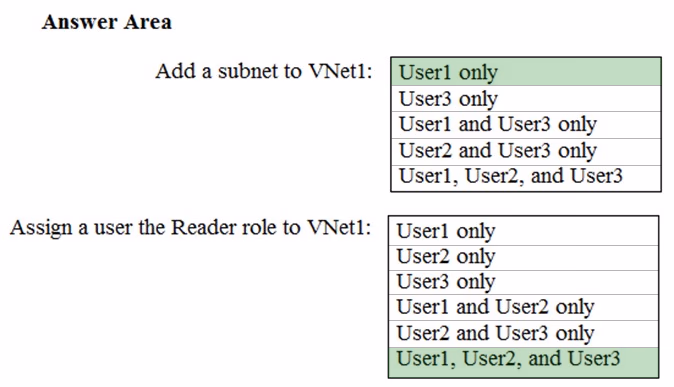

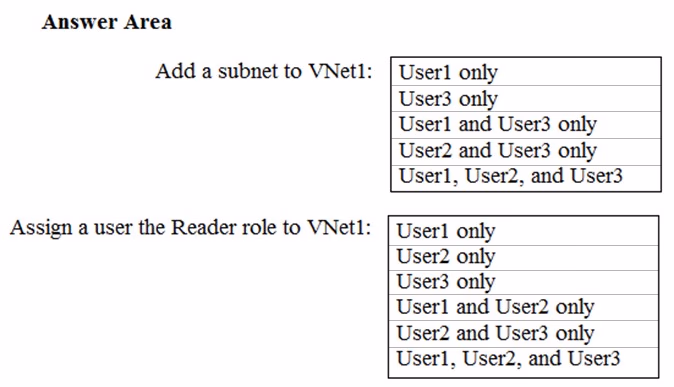

Hot Area:
Box 1: User1 only.
User1: The Owner Role lets you manage everything, including access to resources.
Not User3: The Network Contributor role lets you manage networks, but not access to them.
Box 2: User1, User2, and Users3 -
The Owner Role lets you manage everything, including access to resources.
The Security Admin role: In Security Center only: Can view security policies, view security states, edit security policies, view alerts and recommendations, dismiss alerts and recommendations.
Network Contributor role lets you manage networks, but not access to them. This includes Read roles and role assignments
Reference:
https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles
Box 1 is User 1 and User 3 only Box 2 is User 1 only
Answers should be: #1) User1 and User3 only #2) User1 only https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles#general
Box 1: User 1 and 3 Box 2: User 1 only.
Box 1: User 1 and User 3 User 3 (Network Contributor): Network Contributor can Create and manage networks Box 2: User 1 NOT User 3: Network Contributor can only *Read* roles and role assignments NOT User 2: Security Admin can only *Read* roles and role assignments https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles#security-admin
User 1 and User 3 User 1 and User 2
Box 1 is User 1 and User 3 only Box 2 is User 1 only
Tested in the lab. Correct answer: Box1 - User1 & 3 only, Box2 - User 1 only
Box 1 is User 1 and User 3 only --> Owner can do anything, contributor can manage the network Box 2 is User 1 only --> User & Role assigned can be done by owner only
Repeat Question - Box 1 is User 1 and User 3 only Box 2 is User 1 only
Repeat Topic 2 Q34
repeated question
Box1: User1 & User3 Network Contributor has permission on Virtual Network (Add or remove a subnet delegation) https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-manage-subnet
correct
Box 1 is User 1 and User 3 only Box 2 is User 1 only Network Contributor Lets you manage networks, but not access to them. Contributor Grants full access to manage all resources, but does not allow you to assign roles in Azure RBAC, manage assignments in Azure Blueprints, or share image galleries. https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles#general
Box 1 is User 1 and User 3 only Box 2 is User 1 only
26-June-21, Passed the exam. Answered - 1. Owner and Network Contributor, 2. Owner
on Exam today 21st Jan, 2022
