HOTSPOT -

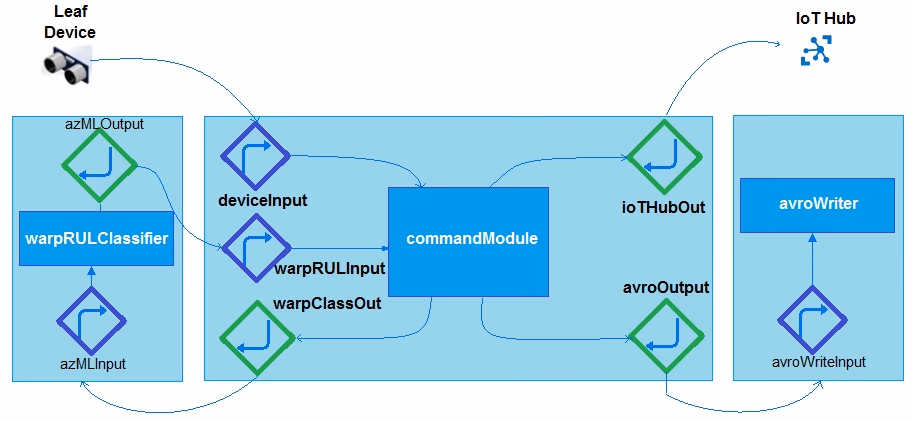

You need to configure Azure IoT Edge module routing to ensure that modules route traffic as shown in the following exhibit.
How should you complete the IoT Edge module routes? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

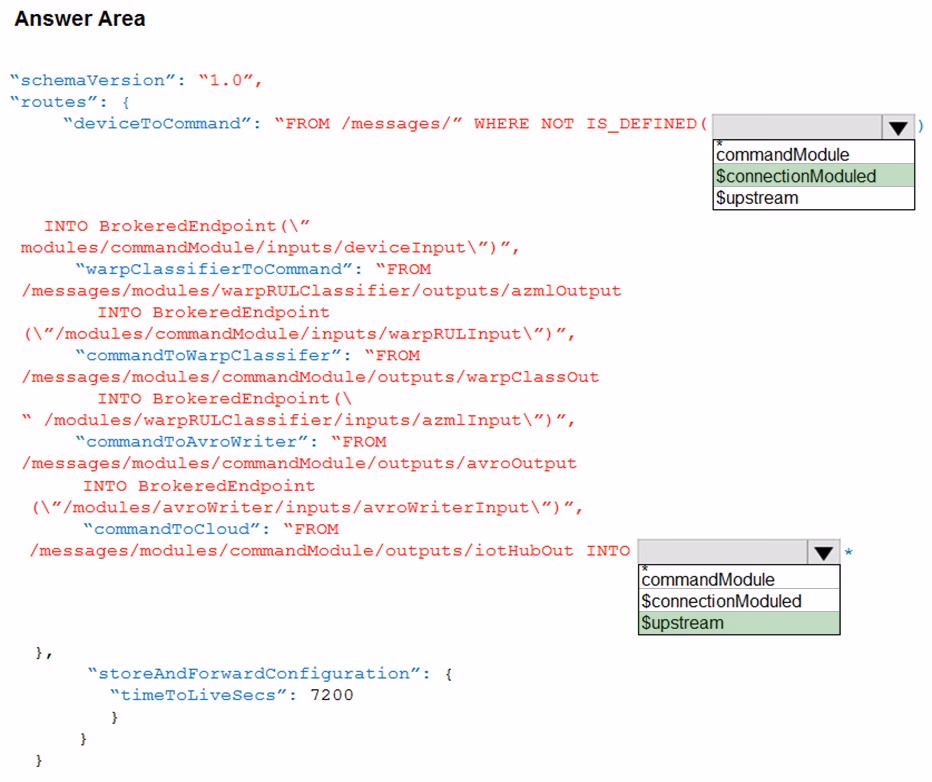

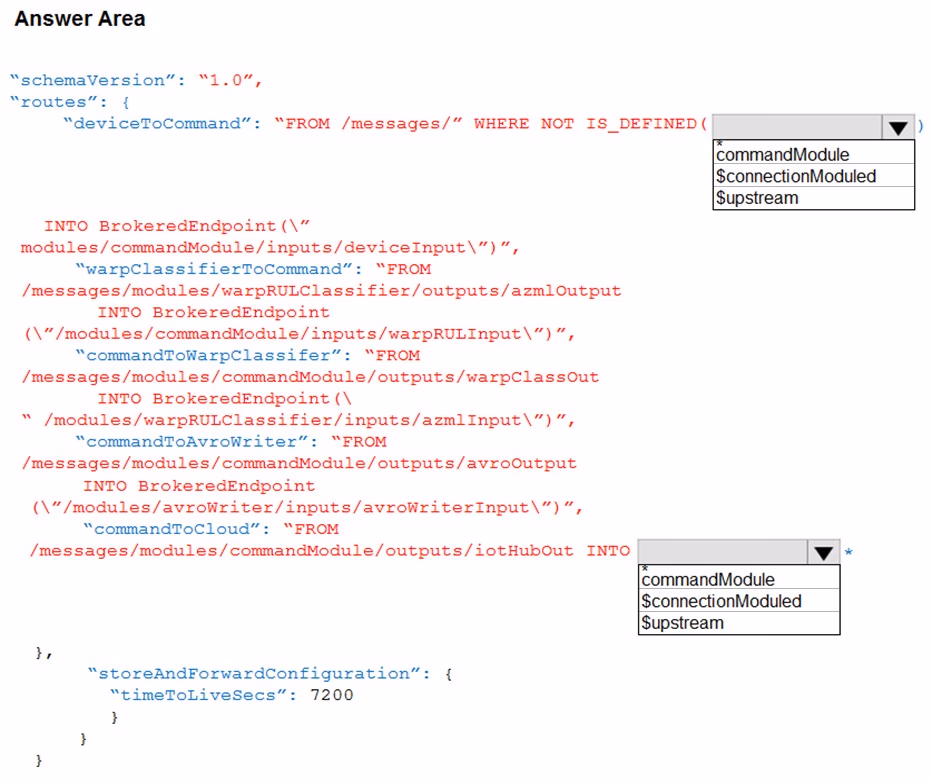

Hot Area:
Box 1: $connectionModuled -
Add a route that tells the edge hub to route any message received by the IoT Edge device that was not sent by an IoT Edge module.
Box 2: $upstream -
Send messages to $upstream, which passes the messages to the connected IoT Hub.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/tutorial-machine-learning-edge-06-custom-modules
Provided answer is correct, but in question there is some typo must be connectionModuleID not connectionModuled
