DP-200 Exam - Question 43

Question

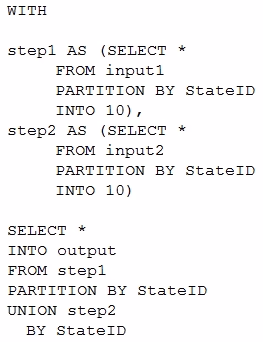

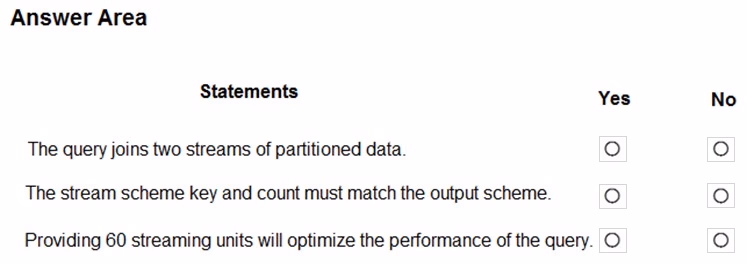

HOTSPOT -You have the following Azure Stream Analytics query. For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point. Hot Area:.

Examice · Accepted Answer

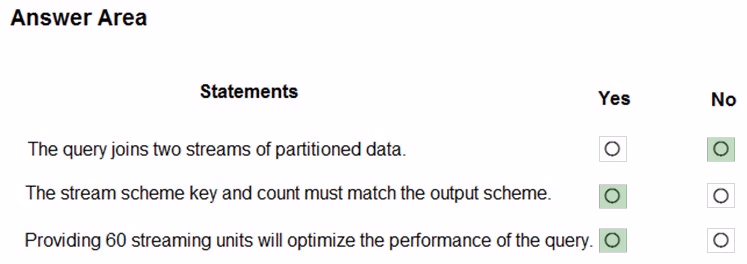

Box 1: No -Note: You can now use a new extension of Azure Stream Analytics SQL to specify the number of partitions of a stream when reshuffling the data. The outcome is a stream that has the same partition scheme. Please see below for an example:WITH step1 AS (SELECT * FROM [input1] PARTITION BY DeviceID INTO 10), step2 AS (SELECT * FROM [input2] PARTITION BY DeviceID INTO 10)SELECT * INTO [output] FROM step1 PARTITION BY DeviceID UNION step2 PARTITION BY DeviceIDNote: The new extension of Azure Stream Analytics SQL includes a keyword INTO that allows you to specify the number of partitions for a stream when performing reshuffling using a PARTITION BY statement. Box 2: Yes -When joining two streams of data explicitly repartitioned, these streams must have the same partition key and partition count. Box 3: Yes -Streaming Units (SUs) represents the computing resources that are allocated to execute a Stream Analytics job. The higher the number of SUs, the more CPU and memory resources are allocated for your job. In general, the best practice is to start with 6 SUs for queries that don't use PARTITION BY. Here there are 10 partitions, so 6x10 = 60 SUs is good. Note: Remember, Streaming Unit (SU) count, which is the unit of scale for Azure Stream Analytics, must be adjusted so the number of physical resources available to the job can fit the partitioned flow. In general, six SUs is a good number to assign to each partition. In case there are insufficient resources assigned to the job, the system will only apply the repartition if it benefits the job. Reference:https://azure. microsoft. com/en-in/blog/maximize-throughput-with-repartitioning-in-azure-stream-analytics/ https://docs. microsoft. com/en-us/azure/stream-analytics/stream-analytics-streaming-unit-consumption.

sjsheikdawood · Answer

Answer is No,No,No (source whizlab)
Here we are using the UNION clause which is different from the JOIN clause
We need to match the partition key in the input and output scheme, but not necessarily need to match the count.
You can scale up to 6 streaming units for each step in a job. If you have partitions, you need to
multiply the number of partitions by 6.
Now in the query, we have 2 select queries in the input streams. And each has a partition count of 10.
That means we can scale the job to the following number of streaming units.
Number of SELECT queries * Number of partitions * 6
= 2*10*6 = 120
In the query, we have one SELECT statement in the output with no partition count. Hence the
calculation for the maximum number of streaming units is
Number of SELECT queries * 6 = 6.
Hence the total number of streaming units that can be assigned to the job is 126.

vaseva1 · Answer

Yes at 1st Question

Sherinm · Answer

Box 1 is Yes.

When joining two streams of data explicitly repartitioned, these streams must have the same partition key and partition count. The outcome is a stream that has the same partition scheme.

https://azure.microsoft.com/en-in/blog/maximize-throughput-with-repartitioning-in-azure-stream-analytics/

cadio30 · Answer

The following example query joins two streams of repartitioned data. When joining two streams of repartitioned data, the streams must have the same partition key and count. The outcome is a stream that has the same partition scheme.

WITH step1 AS (SELECT * FROM input1 PARTITION BY DeviceID),
step2 AS (SELECT * FROM input2 PARTITION BY DeviceID)

SELECT * INTO output FROM step1 PARTITION BY DeviceID UNION step2 PARTITION BY DeviceID

Reference: https://docs.microsoft.com/en-us/azure/stream-analytics/repartition

jasonoubre · Answer

so what is the answer??

vrmei · Answer

Second Option should be No.
The output scheme should match the stream scheme key and count so that each substream can be flushed independently.
https://docs.microsoft.com/en-us/azure/stream-analytics/repartition

hello_there_ · Answer

The answer is yes, yes, no. The example comes almost directly from the microsoft documentation. Quoting from docs.microsoft.com/en-us/azure/stream-analytics/repartition:
The following example query joins two streams of repartitioned data. When joining two streams of repartitioned data, the streams must have the same partition key and count. The outcome is a stream that has the same partition scheme.

SQL
WITH step1 AS (SELECT * FROM input1 PARTITION BY DeviceID),
step2 AS (SELECT * FROM input2 PARTITION BY DeviceID)

SELECT * INTO output FROM step1 PARTITION BY DeviceID UNION step2 PARTITION BY DeviceID

The documentation clearly states that this example consitutes a join of partitioned streams, even though traditionally one might not consider a union a join.
Others have explained why 60 stu is not optimal.

AngelRio · Answer

No, No and No (source Whizlabs)

kriskan1 · Answer

In the union query for step2 there is no partition by. so may be the query is wront. thats the reason for No for 1st question

dangal95 · Answer

why are some people saying that the first one is also yes? A Union is not a join. A union will combine the rows from both steps together. A join would combine the columns based on some join condition

Aragorn_2021 · Answer

Answer for RU unit is wrong. Ideal RU unit required is 126

NamishBansal · Answer

3rd question is correct. While 126 RUs might be the most ideal, 60 RUs will still optimize the preformance.

niwe · Answer

I don't think "Union step2 By StateID" it is valid.

massnonn · Answer

the answer is yes-yes-yes

Sai2609 · Answer

It should be yes,yes,yes
