AZ-500 Exam - Question 457

Question

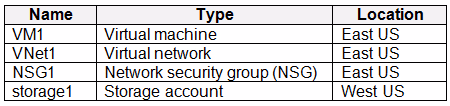

DRAG DROP-You have an Azure subscription that contains the resources shown in the following table. You need to configure network connectivity to meet the following requirements:•	Communication from VM1 to storage1 must traverse an optimized Microsoft backbone network. •	All the outbound traffic from VM1 to the internet must be denied. •	The solution must minimize costs and administrative effort. What should you configure for VNet1 and NSG1? To answer, drag the appropriate components to the correct resources. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

Examice · Accepted Answer

.

elster · Answer

VNet1: service endpoint
NSG1: service tag (Internet) within a deny inbound rule

Pamban · Answer

2nd answer is wrong. It should be service tag.
NSG: Service Tag
Nsg and route table are 2 different things

ITFranz · Answer

The answer can be found here.
https://learn.microsoft.com/en-us/azure/virtual-network/virtual-network-service-endpoints-overview
Pricing and limits
There's no extra charge for using service endpoints. The current pricing model for Azure services (Azure Storage, Azure SQL Database, etc.) applies as-is today.

There's no limit on the total number of service endpoints in a virtual network.

Certain Azure services, such as Azure Storage Accounts, may enforce limits on the number of subnets used for securing the resource. Refer to the documentation for various services in the Next steps section for details.

https://learn.microsoft.com/en-us/dynamics365/business-central/dev-itpro/security/security-service-tags
An Azure service tag represents a group of IP addresses from/to which traffic from a specific service may come, which allows you to set up firewalls for a specific service to allow only traffic from certain services.

Answer = VNET = Service Endpoint
         NSG  = Service Tag

Inkster · Answer

For question 1:  Azure service endpoints are designed to provide secure and direct connectivity to Azure services over the Azure backbone network. However, they are not intended for cross-region connectivity. This means that if you have a virtual network (VNet) in East US and a storage account in West US, you cannot use a service endpoint to connect them directly.

using a private endpoint would be a suitable solution for your scenario. Private endpoints allow you to securely connect to Azure services over a private IP address within your virtual network, regardless of the region
