HOTSPOT -

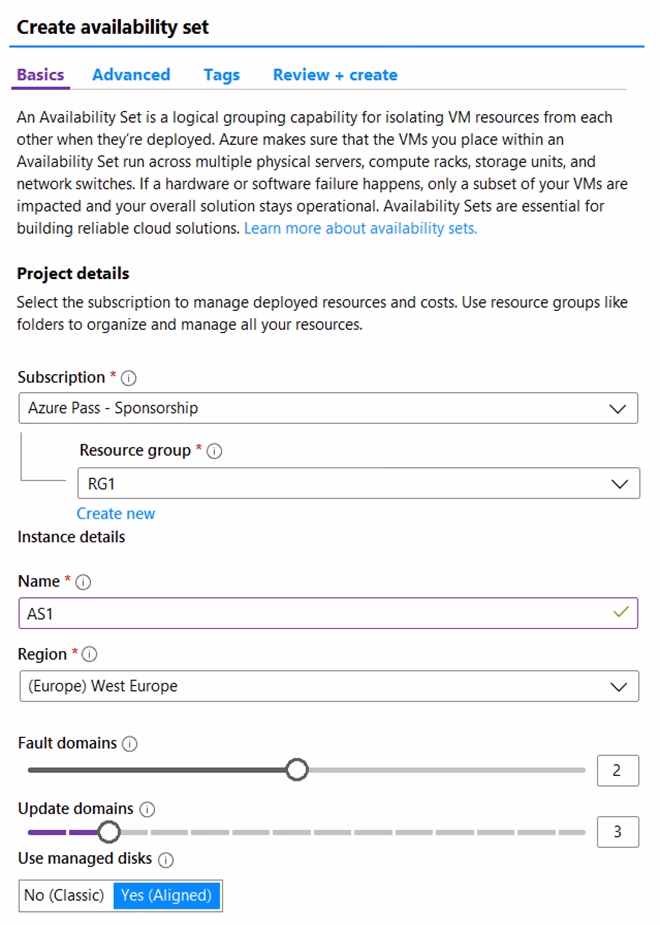

You have an Azure subscription that contains multiple resource groups. You create an availability set as shown in the following exhibit.
You deploy 10 virtual machines to AS1.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

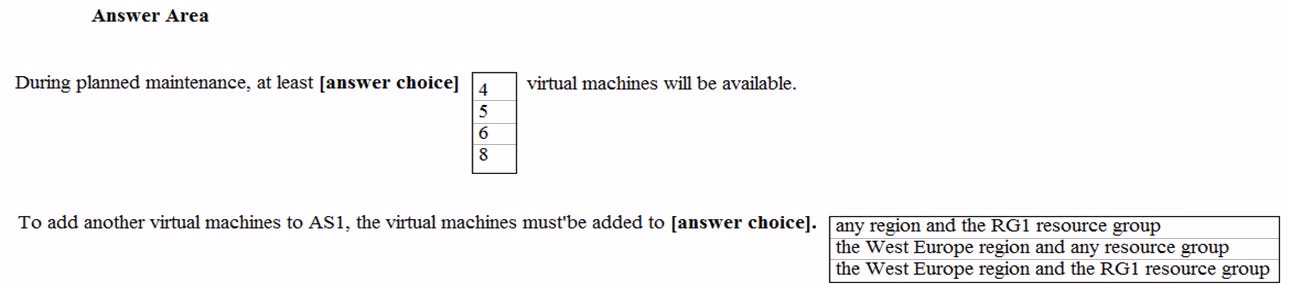

Hot Area:

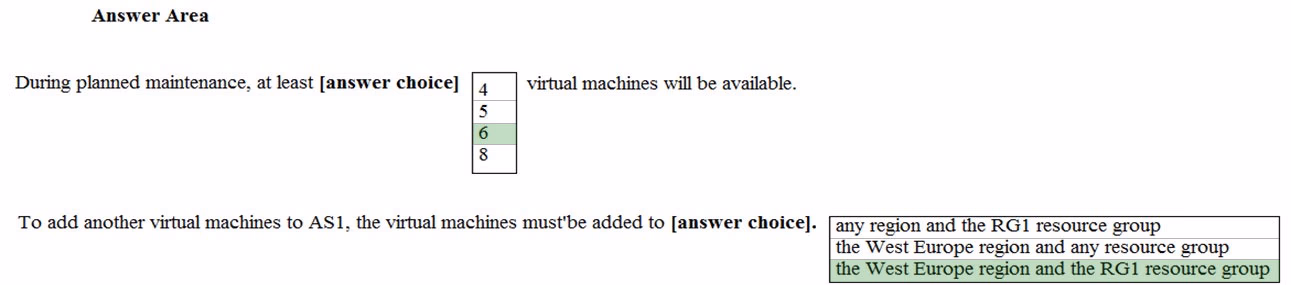

Box 1: 6 -
Two out of three update domains would be available, each with at least 3 VMs.
An update domain is a group of VMs and underlying physical hardware that can be rebooted at the same time.
As you create VMs within an availability set, the Azure platform automatically distributes your VMs across these update domains. This approach ensures that at least one instance of your application always remains running as the Azure platform undergoes periodic maintenance.
Box 2: the West Europe region and the RG1 resource group
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/regions
it's correct.
Duplicate question. Question #7 Topic 1 https://www.examtopics.com/exams/microsoft/az-303/view/2/
repeated question
I have seen over 12 repeated questions up to this point . whats the point?! I dont know . \ moderator please clean up. thank you
Folks, second answer is correct. To verify, try creating an availability set in resource group A and region B. Then, try creating a VM and, all values empty, choose "availability set" under availability options. You will get the message: "no existing availability sets in current resource group and location."
VM and Availability Set must be in the same region and RG: https://stackoverflow.com/a/35997305
Only one update domain would be updated at the time. See following links: https://azure.codefari.com/2018/12/what-are-availability-set-fault-domain.html https://www.c-sharpcorner.com/article/availability-set-fault-domains-and-update-domains-in-azure-virtual-machie/
VM & availibity set should be in same region but can have different RG's.Box1 is correct but Box2 will be West Europe and any RG.
you are wrong for box2. New VM must be added in the same RG. Box 2 is correct. https://social.technet.microsoft.com/wiki/contents/articles/51828.azure-vms-availability-sets-and-availability-zones.aspx
How do availability sets work? Reference: https://docs.microsoft.com/en-us/azure/virtual-machines/availability-set-overview
On Exam Today, Passed
