HPE0-S22 Exam - Question 5

Question

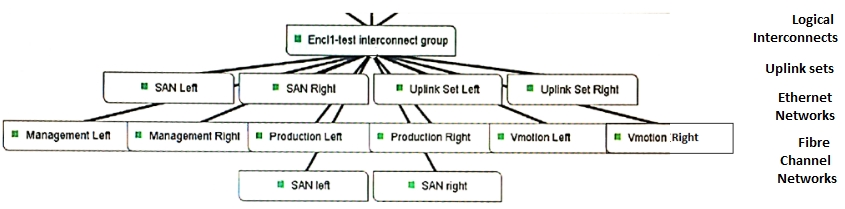

View the Exhibit.

Refer to the exhibit. A customer has an HPE c7000 enclosure managed by HPE OneView with HP BL460c Gen9 servers in a vSphere cluster. The customer has multiple vLANs trunked from the top of rack (TOR) switches to the Virtual Connect modules in the enclosure. Due to network Access Control List (ACL) requirement and guidelines from the networking department, all network traffic should be forced to an upstream switch using the Virtual Connect "Private Network" feature.

The customer reports slow network response.

Which modification can the architect recommend to improve network performance?

Examice · Accepted Answer

To improve network performance, it is recommended to put the vMotion network in a separate uplink set and disable the 'Private Network' feature. The 'Private Network' feature forces all traffic to upstream switches, which can cause congestion and slow network response, especially for traffic-heavy operations like vMotion. By isolating the vMotion network, you can reduce the amount of traffic on the other networks and improve overall performance.

melisun · Answer

I believe the answer is D, see here https://communities.vmware.com/thread/609710
