HPE6-A45 Exam - Question 5

Refer to the exhibits.

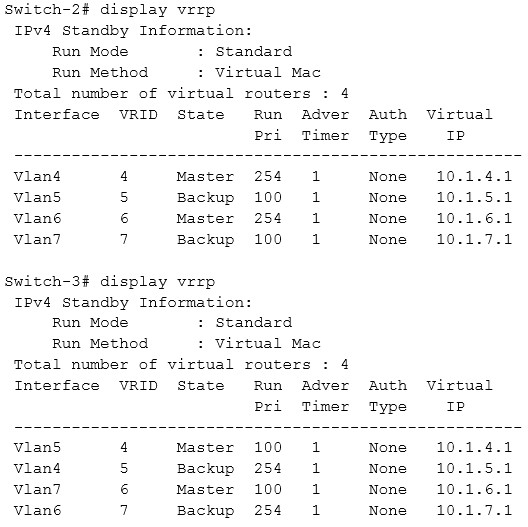

Exhibit 1.

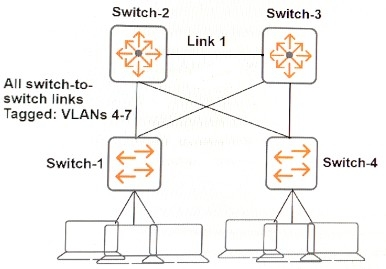

Exhibit 2.

The company wants to minimize congestion on Link 1.

Which spanning tree implementation meets this goal?

Instance 1 = VLANs 4-5 Instance 2 = VLANs 6-7 Switch 2 instance 1 priority = 0 Switch 2 instance 2 priority = 1 Switch 3 instance 1 priority = 1 Switch 3 instance 2 priority = 0

Instance 1 = VLANs 4,6 Instance 2 = VLANs 5,7 Switch 2 instance 1 priority = 0 Switch 2 instance 2 priority = 1 Switch 3 instance 1 priority = 1 Switch 3 instance 2 priority = 0

Instance 1 = VLANs 4,6 Instance 2 = VLANs 5,7 Switch 2 instance 1 priority = 0 Switch 2 instance 2 priority = 1 Switch 3 instance 1 priority = 0 Switch 3 instance 2 priority = 1

Instance 1 = VLANs 4-5 Instance 2 = VLANs 6-7 Switch 2 instance 1 priority = 0 Switch 2 instance 2 priority = 1 Switch 3 instance 1 priority = 0 Switch 3 instance 2 priority = 1

Show Answer

Correct Answer: B

To minimize congestion on Link 1, switch-to-switch traffic should be evenly distributed across the switches. By assigning Switch 2 as the root for VLANs 4 and 6, and Switch 3 as the root for VLANs 5 and 7 (as detailed in Option B), traffic will be better balanced. This ensures that no single link is disproportionately utilized, thereby minimizing congestion on Link 1.

Discussion

6 comments

helpmmgOption: B

Mar 19, 2020

Answer should be B. In order to load balance Vlans across switches each switch needs to be root for an MST instance. Only B meets that requirement.

barsoom1980Option: B

May 12, 2020

The B is the correct answer

GiGiWRCOption: B

May 26, 2020

Yes B is the right one.

ASV2020Option: B

Jul 13, 2020

the answer is B

Hugh_JazzOption: B

Sep 9, 2020

B is correct.

udo2020Option: B

Oct 2, 2020

I agree with B!
