HPE6-A73 Exam - Question 36

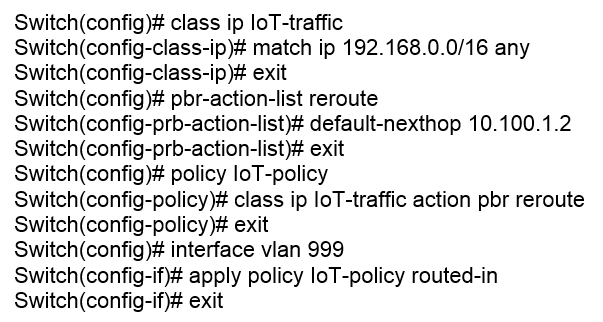

Examine the following AOS-CX configuration:

Based on this configuration, which statement is correct regarding IoT traffic?

If 10.100.1.2 is not reachable, the IoT traffic will be automatically dropped by the switch

If a specific route is not available in the routing table, the traffic will be routed to 10.100.1.2

The next hop of 10.100.1.2 can be one or more hops away from the AOS-CX switch

All routes are ignored in the routing table for IoT traffic, which is routed to 10.100.1.2

Show Answer

Correct Answer: B

The configuration specifies a policy-based routing (PBR) setup where a class of traffic, specifically IoT traffic matching the IP range 192.168.0.0/16, is directed to a specific next hop, 10.100.1.2, using a default-nexthop command. The default-nexthop command indicates that this next hop is used only if there is no explicit route to the destination in the routing table. Therefore, if a specific route is not available in the routing table, the traffic will be routed to 10.100.1.2 as specified by the default-nexthop.

Discussion

5 comments

fastyOption: B

Apr 12, 2021

I think B is correct

[Removed]

Apr 15, 2021

B iss correct. See CLI reference: default-nexthop Sets the next hop for routing the packet when there is no explicit route for its destination.

AM1234Option: B

Jun 21, 2021

B is correct

SeidorBrunoOption: B

Jun 30, 2023

Page 905 Study Guide: Unlike nexthop, default- nexthop only applies if there is no destination lookup match in the main routing table for matching packets. [Aruba Networks]

poris27Option: D

Apr 2, 2021

I think the answer is D ?

Moreson

Feb 21, 2022

Correct if the key word is not 'default-nexthop'

omenOption: B

Aug 30, 2022

B is correct
