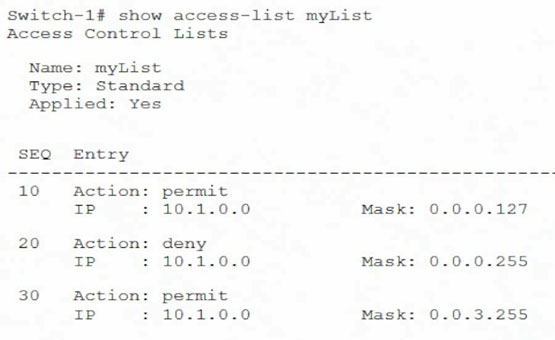

A network administrator applies the ACL shown in the exhibit. Which source IP address does the myList ACL deny?
A network administrator applies the ACL shown in the exhibit. Which source IP address does the myList ACL deny?
Examining the access control list (ACL), we see three entries. The first entry permits IP addresses from 10.1.0.0 to 10.1.0.127. The second entry denies IP addresses from 10.1.0.0 to 10.1.0.255. The third entry permits IP addresses from 10.1.0.0 to 10.1.3.255. Given option A, 10.1.0.10 falls into the range covered by the second entry, which denies it. Therefore, 10.1.0.10 is denied by the ACL.
the D is answer correct
D is correct, agreed
D is right! Because of the implicit deny at the end.
I think correct answers is A
Correct answer is D.
