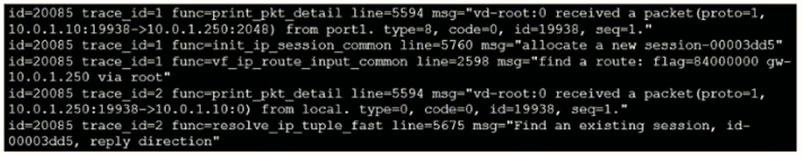

Refer to the exhibit showing a debug flow output.
Which two statements about the debug flow output are correct? (Choose two.)
NSE4_FGT-6.4 Exam QuestionsBrowse all questions from this exam
NSE4_FGT-6.4 Exam - Question 69
Show AnswerHide Answer
Correct Answer: AD
The debug flow output displays that the protocol used is ICMP, indicated by 'proto=1', which is correct for identifying ICMP traffic. This justifies option A. Additionally, the message 'allocate a new session-00003dd5' confirms that a new traffic session is created, justifying option D. There is no indication in the provided debug that a firewall policy is directly allowing the connection or that the default route is needed to receive a reply, making options C and B incorrect.
Discussion
15 commentsphototrait
Jun 30, 2021A & D is correct, not C
JannJann
Sep 16, 2021AD is correct. Good read for your guys. https://docs.fortinet.com/document/fortigate/6.2.3/cookbook/54688/debugging-the-packet-flow
JannJann
Sep 16, 2021SAMPLE: SYN sent and a new session is allocated: id=20085 trace_id=209 func=resolve_ip_tuple line=2799 msg="allocate a new session-00000e90"
JannJann
Sep 16, 2021SAMPLE: SYN sent and a new session is allocated: id=20085 trace_id=209 func=resolve_ip_tuple line=2799 msg="allocate a new session-00000e90"
phototrait
Jun 30, 2021A & C is correct : proto=1 -> icmp / allocate a new sesion
luiscsiscotec
Sep 7, 2021what is your reference about "A and C"?
Gape4
Jul 22, 2021A & D is correct. No Doubt.
moneim
Aug 21, 2021A and C ,, reply traffic is received so traffic must has been allowed by a firewall policy
moneim
Aug 24, 2021looking again a the log, it seems that the client is pinging the GW in the same subnet, son firewall policy is needed to allow such communication. Answer should be A,D as mentioned by others
Seph1
Sep 8, 2021Why do you think it`s a gateway? How can you know it?
Anis_chak
Oct 24, 2021"gw-10.0.1.250 via root"
Anis_chak
Oct 24, 2021"gw-10.0.1.250 via root"
Seph1
Sep 8, 2021Why do you think it`s a gateway? How can you know it?
Anis_chak
Oct 24, 2021"gw-10.0.1.250 via root"
Anis_chak
Oct 24, 2021"gw-10.0.1.250 via root"
forti_Ctes
Oct 18, 2021A & D are corerct
lrosadini
Feb 2, 2022A&D A=proto1=ICMP=PING D=msg="Allocate a new session"
JackeD
Jul 19, 2021A and D is correct
luiscsiscotec
Sep 7, 2021B & D is correct.
forti_Ctes
Sep 22, 2021A & D is correct
AJVG
Feb 5, 2022A D is correct
CeajanceOptions: AD
Feb 13, 2022A & D is correct, not C
Nirvanero94Options: AD
Feb 26, 2022A & D is correct, not C
andrewc74
Mar 23, 2022If C is not correct, why is there a return traffic in reverse direction from 10.0.1.250 back to 10.0.1.10?
Chdavid33
Mar 28, 2022A y D is correct!
NicolaeEastOptions: AD
Aug 24, 2022Proto 1 is icmp. Obviously a new session was created. The ping is being sent to the gateway from a local device so no policy is needed. "gw-10.0.1.250 via root" Fortigate Infrastructure 7.0 pg 358-360
