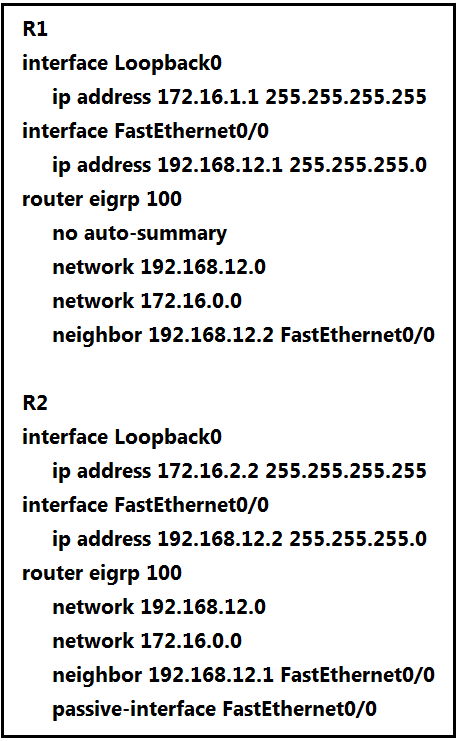

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency.
Which action establishes EIGRP adjacency?
Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency.
Which action establishes EIGRP adjacency?
The passive-interface command in the R2 configuration prevents EIGRP packets from being sent out through the specified interface (FastEthernet0/0), which in turn stops EIGRP from establishing a neighbor relationship with R1. To enable an EIGRP adjacency between R1 and R2, the passive-interface command should be removed from the R2 configuration. This will allow EIGRP packets to be exchanged through the FastEthernet0/0 interface, thereby enabling the establishment of the EIGRP adjacency.
Given answer is correct, labbed and as soon as you configure passive-interface it tears down the neighbor as below. EIGRP-IPv4 100: Neighbor 192.168.12.1 (Ethernet0/0) is down: interface passive
The given answer is correct
The given answer is correct
The correct answer is: C
The correct answer is C
C is correct. The passive-interface command stops EIGRP packets from going out through a specified interface. You'd use it on interfaces where you don't want EIGRP to make connections, like on LAN interfaces with no EIGRP neighbors around.
C is correct
