The Open Group OG0-021 Exam Questions

Question 6 of 38

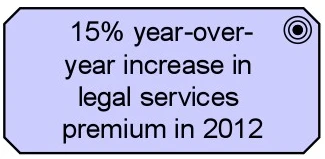

Consider the following symbol, which represents information about a transformation project at ArchiSurance. Note that premium in this context means the total revenue ArchiSurance receives from legal services insurance premium payments:

Exam OG0-021: Question 6 - Image 1

Which of the following statements correctly expresses the meaning of the symbol?

ArchiSurance has attributed a 15% increase in premium to the transformation project in 2012

The increased premium revenue created by completion of the transformation project will motivate significant change in the ArchiSurance Legally Yours division

ArchiSurance has set a goal to increase legal services premium by 15% in 2012, as compared to the previous year

ArchiSurance has a requirement to increase legal services premium by 15% in 2012

Correct Answer: C

Question 7 of 38

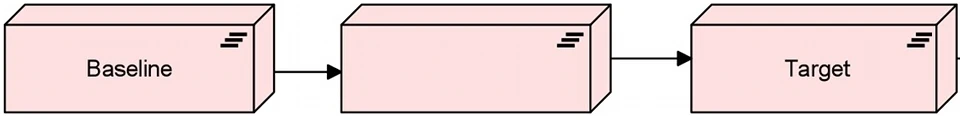

Consider the following diagram, which represents a migration from a Baseline to a Target Architecture:

Exam OG0-021: Question 7 - Image 1

Which of the following answers best interprets the unlabeled symbol in the middle of the diagram?

It represents a relatively stable intermediate state during the migration from the Baseline to the Target Architectures

It represents a project that progresses the architecture from Baseline to Target

It represents the deliverables necessary to transform the architecture from Baseline to Target

It represents a conceptual point of transition between the two architectures, but one that is unlikely to exist in reality for more than an instant

Correct Answer: A

Question 8 of 38

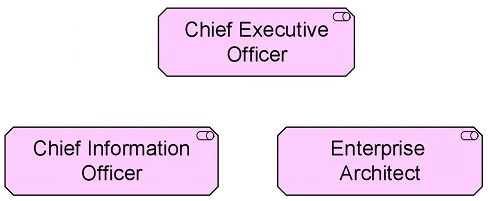

The following diagram shows a typical group of stakeholders:

Exam OG0-021: Question 8 - Image 1

Which ArchiMate viewpoint abstraction level would support these stakeholders for the purpose of change management?

Coherence

Designing

Details

Overview

Correct Answer: D

Question 9 of 38

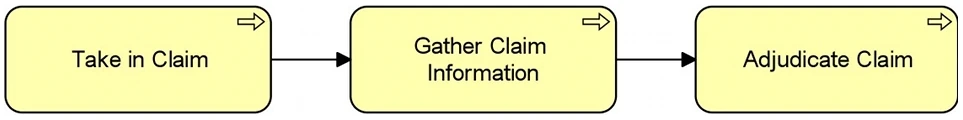

Consider the following diagram:

Exam OG0-021: Question 9 - Image 1

What does the diagram express about the relationship between the three processes?

Take in Claim passes information to Gather Claim Information, and Gather Claim Information passes information to Adjudicate Claim

Take in Claim triggers Gather Claim Information, and Gather Claim Information triggers Adjudicate Claim

Take in Claim is used by Gather Claim Information, and Gather Claim Information is used by Adjudicate Claim

The three processes may execute in parallel, although they don't have to

Correct Answer: B

Question 10 of 38

According to the ISO/IEC 40210 standard, which of the following statements is NOT correct?

A view conforms to a viewpoint

A viewpoint always addresses one or more stakeholders

A concern is always important to one or more stakeholders

A viewpoint always covers exactly one concern

Correct Answer: D
