Netapp NS0-505 Exam Questions

Question 6 of 52

What system file is used during the controller start-of-day sequence to determine various SCSI parameters and other host-type specific settings for an E-Series system? (Choose the best answer.)

A.

Major Event Log

B.

ESM Firmware

C.

NVSRAM

D.

Unreadable Sectors Log

Correct Answer: C

Question 7 of 52

The ability of many E-Series controllers to hold an additional firmware image in reserve _________. (Choose the best answer.)

A.

is used to store a backup boot image

B.

allows controller firmware to be downloaded immediately and activated at a later time

C.

allows two firmware images to be used at the same time

D.

is used for Support use only

Correct Answer: C

Question 8 of 52

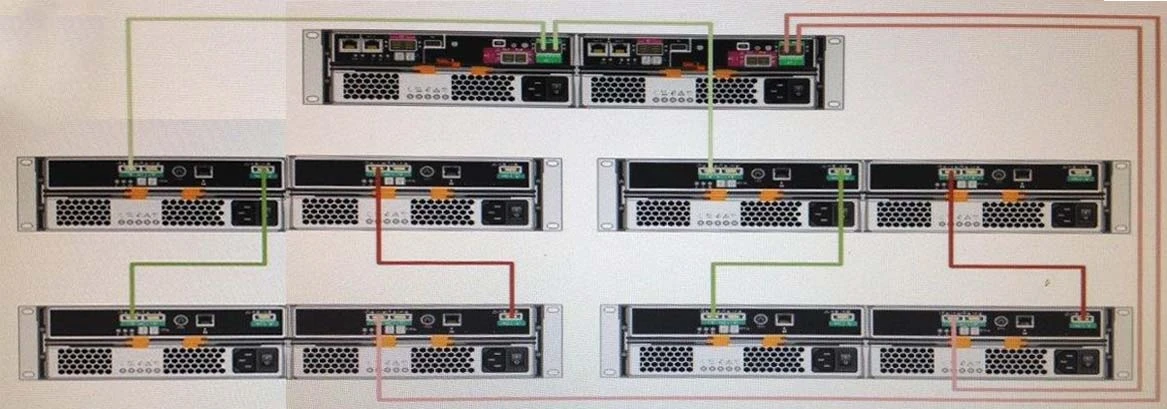

Review the diagram.
Exam NS0-505: Question 8 - Image 1

Is this cabling correct or incorrect, and why? (Choose the best answer.)

A.

The cabling is incorrect because each controller goes to only one stack of disk shelves

B.

The cabling is correct for the dual stack cabling method

C.

The cabling is incorrect because it uses the top-down bottom-up cabling method

D.

The cabling is incorrect because the controllers are cabled from the host port.

Correct Answer: B

Question 9 of 52

Which component of an E-Series storage system should always be upgraded first? (Choose the best answer.)

A.

ESM firmware

B.

Controller firmware

C.

Controller NVSRAM

D.

SANtricity management client

Correct Answer: B

Question 10 of 52

What uses the Access Volume? (Choose the best answer.)
