Question 6 of 66
Which transport mechanism is required for Layer 3 VPNs?
Correct Answer: D
Question 7 of 66
Click the Exhibit button.

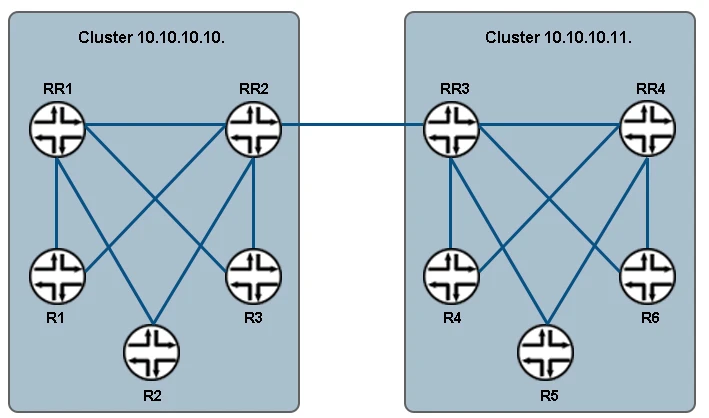

Referring to the exhibit, RR1-RR4 are route reflectors.
Which three routers would RR1 need to peer with if the no-client-reflect parameter has been configured? (Choose three.)
Referring to the exhibit, RR1-RR4 are route reflectors.
Which three routers would RR1 need to peer with if the no-client-reflect parameter has been configured? (Choose three.)
Correct Answer: A, C, E
Question 8 of 66
Click the Exhibit button.

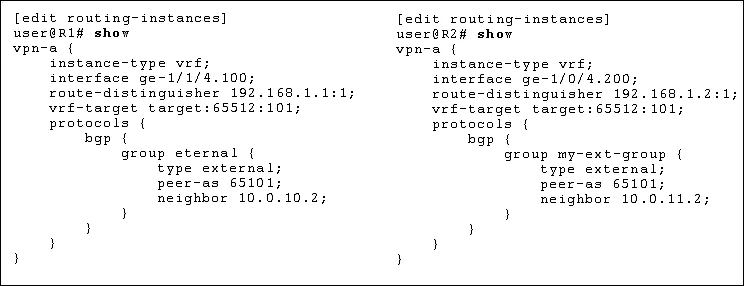

R1 and R2 are not forwarding the routes received from a remote PE to their customers.
Referring to the exhibit, which parameter must be added to the configuration to allow the routes to be forwarded?
R1 and R2 are not forwarding the routes received from a remote PE to their customers.
Referring to the exhibit, which parameter must be added to the configuration to allow the routes to be forwarded?
Correct Answer: B
Question 9 of 66
You are asked to configure PIM-SM in your network. Your implementation must allow for load sharing between redundant RPs and, should an RP failure occur, the RP failover time should be minimized.
Which two configuration tasks are required in this scenario? (Choose two.)
Which two configuration tasks are required in this scenario? (Choose two.)
Correct Answer: B, D
Question 10 of 66
In a carrier-of-carrier VPN model, which type of network layer reachability information is used for the MP-BGP signaling between CE and PE routers?
Correct Answer: D
