DRAG DROP -

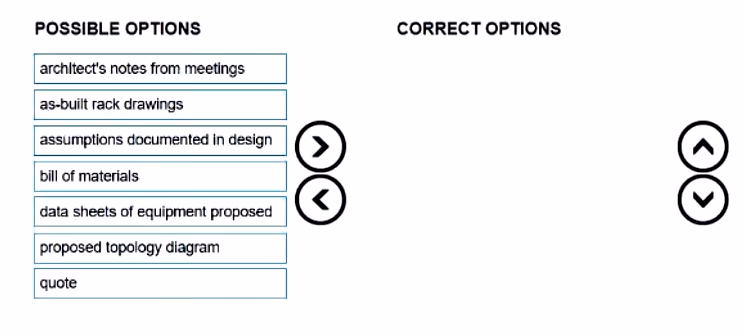

What documents should be included in the solution proposal? (Place the correct items into the list at the right. Order is not important. Not all options will be used.)

‘Don't Buy at Us’ is a US-based retail company that is expanding into Europe. They are expanding into EMEA with a regional headquarters called HQ2 inside The Netherlands.

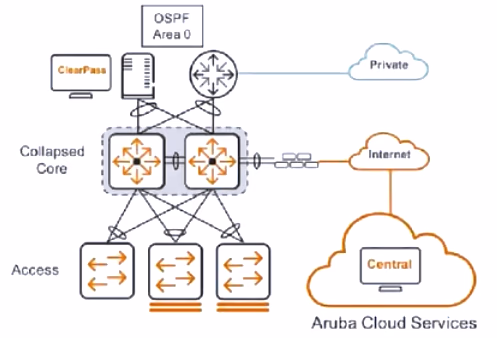

Their US-based headquarters HQ1 was refreshed last year based on the HPE Aruba Networking ESP architecture. You have created the design for HQ2 based on the same design as HQ1, a two- tier architecture. The high level is shown below.

Switch BOM for this project based on Two Tier:

Collapsed Core: 2 x 8360-16Y2C in VSX (ISL 2x100GbE DAC)

Access Stack: 10 x Stack of 6200F 48G Class4 PoE 4SFP+ 740W (each stack has 4 members, VSF with 10GbE VSF links) (2 x 10GbE uplink per stack)

During the presentation of your design to the CTO of ‘Don't Buy at Us’ you were informed about the changes they want you to incorporate into the updated design.

1. HQ2 will include the EMEA regional distribution center (EMEA-DISTR) next to the HQ2.

2. Only two pairs of OS1 are available between HQ2 and EMEA-DISTR.

3. The uplinks from all access stacks need to Increase to 2 x 25GbE, the fiber in HQ2 and EMEA-DISTRI is certified for 25GbE.

4. EMEA-DISTR needs at least 7 x stack of Aruba 48 ports switches (each stack has 4 members).

Which answer based on best practice is presenting the correct Switch BOM for the updated design?

‘Don't Buy at Us’ is a US-based retail company that is expanding into Europe. They are expanding into EMEA with a regional headquarters called HQ2 inside The Netherlands.

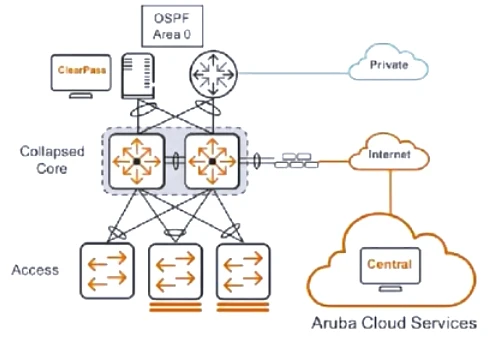

Their US-based headquarters HQ1 was refreshed last year based on the HPE Aruba Networking ESP architecture. You have created the design for HQ2 based on the same design as HQ1, a two-tier architecture. The high level is shown below.

Switch BOM for this project based on Two Tier:

Collapsed Core: 2 x 8360-16Y2C in VSX (ISL 2x100GbE DAC)

Access Stack: 10 x Stack of 6200F 48G Class4 PoE 4SFP+ 740W (each stack has 4 members, VSF with 10GbE VSF links) (2 x 10GbE uplink per stack)

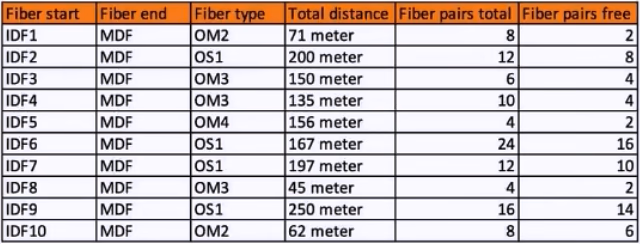

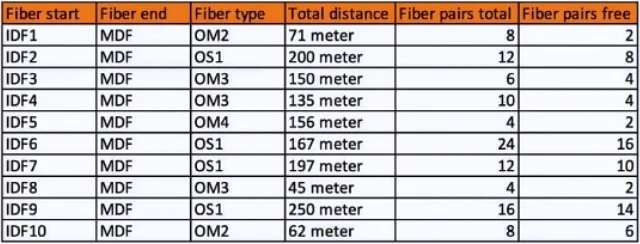

During the presentation of your design to the CTO of ‘Don't Buy at Us’ you were informed about the updated fiber infrastructure that ‘Don't Buy at Us' has installed in HQ2.

The core stack is installed in the MDF and per IDF there is one access stack installed. Based on best practice, what is the most cost-effective update to the switch BOM?

XYZ Regional Hospital is an integrated healthcare system of hospitals, neighborhood health centers, and small doctor offices. XYZ Regional Hospital has recently merged with 4x neighborhood health centers and 125 doctor branch offices. The wireless, wired access, and AAA solutions are outdated and need to be replaced.

XYZ Regional Hospital is looking to future-proof and improve efficiency across all sites by enhancing wired and wireless access and migrating to a centralized and unified wired/wireless and policy management that can provide uninterrupted availability of all systems.

Locations:

- XYZ Regional Hospital is located in New York City

- Dila Health Center is located in City A

- Mount Health Center is located in City B

- Rock Health Center is located in City C

- Branch clinics are located at different locations across the United States

Requirements:

- Provide, via management software, one single pane of glass to manage wired and wireless LANs, and VPNs across campus, branch, and remote via web/cloud architecture providing near real-time insight, troubleshooting tools, and Service Level performance reporting.

- Seamless integration across wired, wireless, WAN, SD-Branch, IoT

- Provide secure wireless access to all the employees of the Regional Hospital and partners, as well as provide wireless Internet access to medical citizens when they visit our facilities.

- All-access points must support the following features and specifications: 802.11.ax (Wi-Fi 6E Certified)

- Security options including WP2/WPA3, 802.1X with Radius secure authentication

- Identify and authenticate every wireless and wired device

- End-to-end role-based security

- Seamless mobility across the hospital for medical teams, patients, and visitors

- Cuts Wi-Fi deployment times from days to hours and enables Zero-Touch deployments across the site

- Establishes a resilient, future-ready network infrastructure with the intelligence, scalability, and intuitive toolsets to meet emerging needs

- Fully redundant branch solution with dynamic path selection to the hospital

The IT director of XYZ Regional Hospital is interested in a solution for nurse workstation tracking.

What solution would meet the customer's requirements? (Choose three.)

You are designing a solution with OS10-based access points and redundant gateways and these are the requirements:

• Wi-Fi6E based access points

• support for tunneled traffic

• application visibility

• rogue APs

• live upgrades

• Air Slice

• Cloud Guest Authentication

• AI Insights

Which licenses are needed? (Choose two.)
