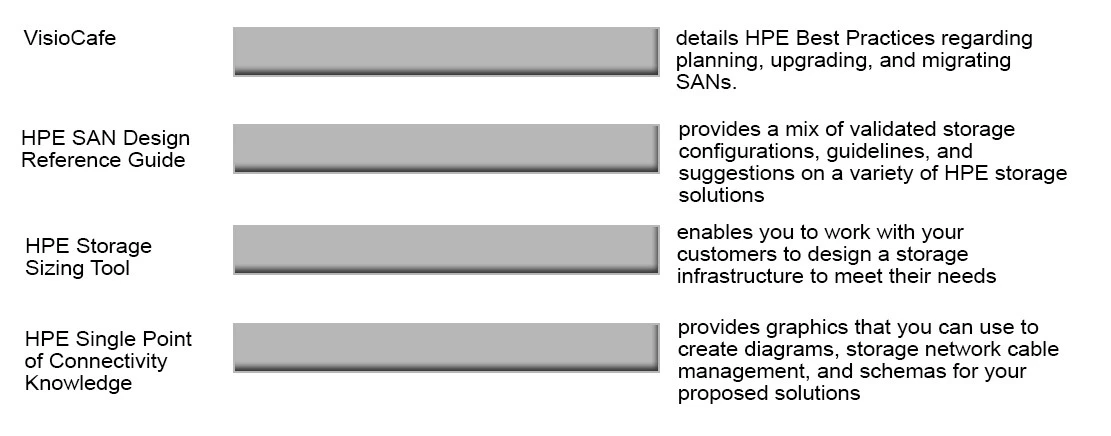

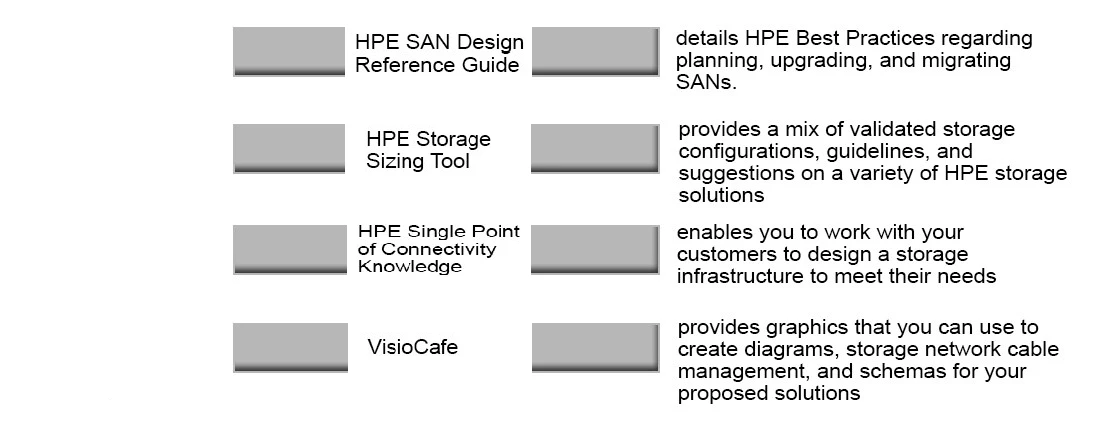

Box 1: HPE SAN Design Reference Guide
Box 2: HPE Storage Sizing Tool -
Box 3: HPE Single Point of Connectivity Knowledge
Box 4: VisioCafe -
Hewlett Packard Enterprise Visio collection includes front and rear physical shapes as well as "logical" shapes which are used for detailed design drawings.
References:
http://www.visiocafe.com/hpe.htm
