HP HP2-Z34 Exam Questions

Question 6 of 60

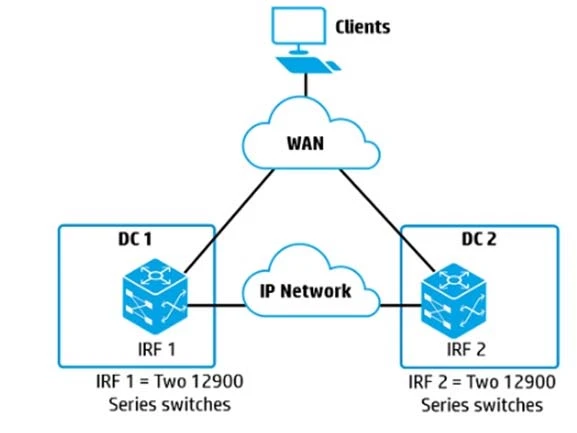

Refer to the exhibit -
Exam HP2-Z34: Question 6 - Image 1

The exhibit displays a company with two data centers that connect by using EVl. The company needs a redundant solution for routing traffic between the subnets.
What is the best way to accomplish this goal?

Run Virtual Router Redundancy Protocol (VRRP) on the data center subnets

Place the EVl tunnel interface on each IRF virtual device in a different VPN instance, and then set up routing on each device by using the same IP addresses.

Use TRILL on the EVl network.

Combine IRF 1 and IRF 2 into the same IRF virtual device, and set up routing on that device

Correct Answer: B

Question 7 of 60

In addition to the Admin MDC, an HP Comware switch supports two MDCs: MDC 2 and MDC 3. The administrator wants to allow tenants for both MDCs to log in to CLI for their own MDC without first accessing the Admin MDC How can the administrator accomplish this goal?

Assign a console port to each MDC Tenants can then connect their own terminal equipment to their assigned port.

Define a VLAN as the MDC Management VLAN in the Admin MDC. On each MDC. create this VLAN. Assign a port to it. Set up an IP address on it and set up Telnet or SSH access through it.

Create subinterfaces for the AUX user-interface in the Admin MDC. Assign one of the subinterfaces to each of the MDCs. and set up Telnet or SSH access through that interface

Define a physical port as the Management-Ethernet interface in the Admin MDC On each MDC. Configure a different IP address for this interface, and set up

Correct Answer: B

Question 8 of 60

What is the purpose of the nickname in TRILL switch settings?

The nickname identifies the TRILL region and must match on every TRILL RBridge in the region.

Administrators can use the nicknames to identify switches in CLI output.

The nickname is the first factor for electing a root bridge

TRILL RBridges use the nicknames as source and destination addresses in TRILL headers

Correct Answer: D

Question 9 of 60

Several VPN instances have been set up on an HP Comware switch. What should the administrator do to ensure that no VPN instance uses up too many switch resources?

Apply a service policy to each instance to assign that instance a percentage of resources

Bind each instance to a specific port group or ASIC

Set a maximum number of routes that each instance can have in its routing table.

Set a CPU weight for each VPN instance to control how much of the CPU the instance can use.

Correct Answer: A

Question 10 of 60

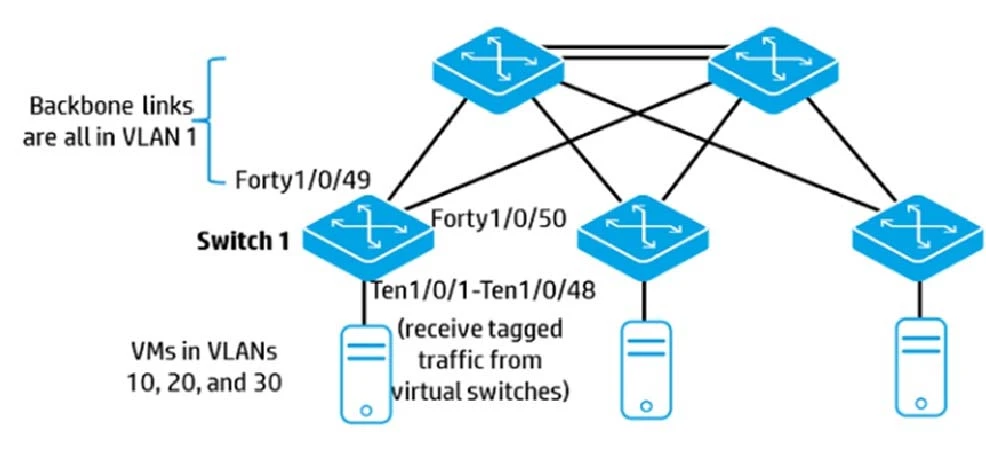

Refer to the exhibit -
Exam HP2-Z34: Question 10 - Image 1

The company wants to use TRILL in the backbone links shown in the exhibit. Servers use VLANs 10, 20, and 30 and should be able to communicate across the backbone. On which Switch 1 interfaces should the administrator enable TRILL?

VLAN interface 1 only

VLAN interfaces 1,10, 20, and 30

interfaces Forty1/0/49 and Forty1/0/50 only

interfaces Ten1/0/1 to Ten1/0/48, and Forty1/0/49 and Forty1/0/50

Correct Answer: C
