HP HP0-Y47 Exam Questions

Question 6 of 55

Refer to the exhibit.

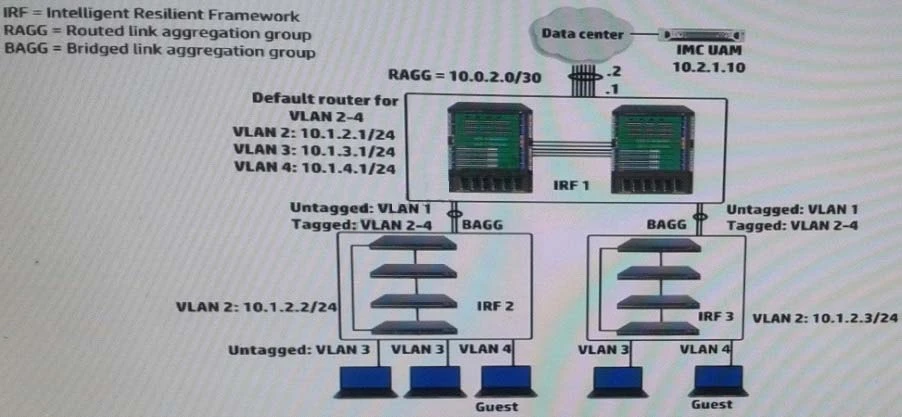

Exam HP0-Y47: Question 6 - Image 1

A company wants to implement a portal authentication solution for guests (such a solution is also called Web-Auth). Guest belong to VLAN4, as shown in the exhibit. The intelligent Management Center (IMC) User Access Manager (UAM) will provide authentication and the Web Portal.
Where should the network administrator enable portal authentication?

On the VLAN 4 interface on the core IRF virtual switch

On the ports with membership for VLAN 4 on the access layer IRF virtual switches

On the ports with membership for VLAN 4 on the core IRF virtual switch

On VLAN 4 on the core IRF virtual switch

Correct Answer: B

Question 7 of 55

Refer to the exhibit.

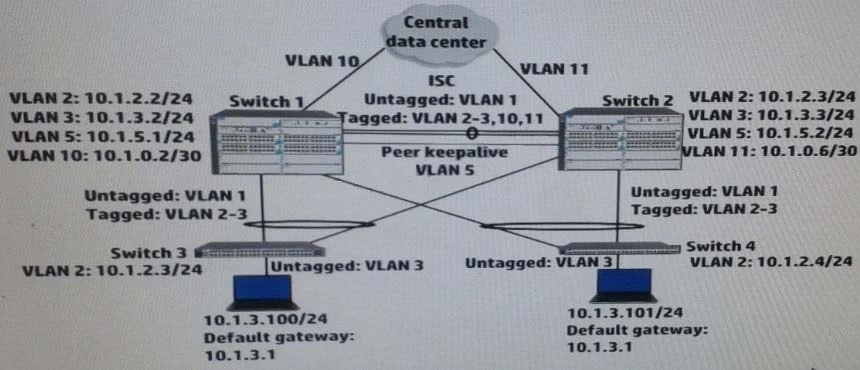

Exam HP0-Y47: Question 7 - Image 1

Switch 1 and switch 2 run open Shortest Path First (OSPF) on all VLANs. Both switches establish an OSPF adjacency to a router at the main data center. Exhibit shows shoes some virtual Routing Redundancy Protocol (VRRP) and OSPF settings on Switch 1 during normal operation.
How can a network administrator increase the resiliency of this solution?

Implement Bidirectional Forwarding Detection (BFD) on the peer keep alive link between the core switches.

Change the VLAN 10 subnet to a /24 subnet and enable VRRP on it. Place Switch 2’s link to the main data center in this subnet.

Make sure that, in each VRRP instance, each switch has a VRRP preempt delay of several minutes.

Configure Switch 1 as an OSPF graceful restart helper in VLAN 11 and Switch 2 as a helper in VLAN 10

Correct Answer: D

Question 8 of 55

A network administrator wants to configure Open Shortest Path (OSPF) MD5 authentication on VLAN 100 on an HP ProVision switch. The administrator has created a global MD5 key chain with an ID and key string that matches the neighbors. which additional step must the administrator complete to accomplish this?

Set OSPF authentication to MD5 mode in the OSPF area settings

Activate MD5 key rotation globally

Enable MD5 key rotation globally

Assign this MD5 key to OSPF VLAN 100

Correct Answer: D

Question 9 of 55

Refer to the exhibit.

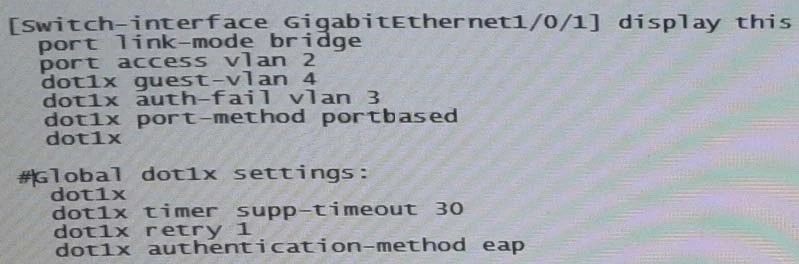

Exam HP0-Y47: Question 9 - Image 1

A user connects a device to GigabitEthernet 1/0/1 on switch. The device does not have an 802.1X supplicant. One minute passes. How does the switch port handle the client?

It blocks the client

It assigns the client to VLAN2

It assigns the client to VLAN3

It assigns the client to VLAN4

Correct Answer: D

Question 10 of 55

A company uses 802.1X authentication to force users to connect to the network. The company uses access layer switches to enforce the 802.1X authentication and HP IMC User Access manager (UAM) as the RADIUS server.
The customer requires switches to apply a specific settings to contractor use connections. The network administrator checks the switch documentation and determines that this settings uses a vendor-specific attribute (VSA). The administrator check UAN and verifies that it has this VSA defined on it.
How does administrator configure UAM to apply the correct setting?

Define IP port groups on the access devices that need to receive the settings. Configure the VSA and its settings within these groups

Add the settings to the VSA definition and then activate the VSA globally

Create a scenario with the VSA and its settings: apply this scenario to the access devices that need to receive the settings

Create a proprietary attribute policy with the VSA and its settings; apply this policy in the service policy for the contractor users

Correct Answer: C
