Citrix XenApp and XenDesktop 7.15 Assessment, Design, and Advanced Configurations

Here you have the best Citrix 1Y0-402 practice exam questions

  • You have 128 total questions across 26 pages (5 per page)
  • These questions were last updated on February 7, 2026
  • This site is not affiliated with or endorsed by Citrix.
Question 1 of 128
Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Currently, the environment is configured with two locations with identical XenDesktop Sites. Each Site has two Delivery Controllers, two StoreFront servers, and one NetScaler high availability pair. The same applications have been published from both Sites for all the users. Two Zones (Zone A and Zone B) are configured in each Site with one Controller in each zone. The Microsoft
Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site.
The following access requirements have been identified:
✑ Users should have a single URL when accessing resources from different Sites.
✑ Users should always connect to the datacenter closest to their location.
✑ Applications added to Favorites within Citrix Receiver should be retained when accessed from different Sites.
✑ Launched applications and desktops should always connect through a local NetScaler.
✑ No duplication of applications published from different Sites.
✑ Microsoft Outlook should always launch in Zone A.
The architect should recommend configuring Optimal Gateway routing on ___________across both locations to ensure that users connect through a local
NetScaler. (Choose the correct option to complete the sentence.)
Suggested Answer: B

To ensure that users connect through a local NetScaler, configuring Optimal Gateway routing on StoreFront servers is the correct approach. StoreFront servers handle the aggregation of resources and user connections. By setting up Optimal Gateway routing there, you can control and direct the user connections through the appropriate local NetScaler based on their geographical location, ensuring they connect to the datacenter closest to their location and meet the requirement for a consistent single URL.

Community votes

No votes yet

Question 2 of 128
Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. While designing Universal Print server (UPS) for the customer, the architect is asked to ensure that the UPS design can handle 500 simultaneous print jobs per minute.
What must the architect deploy to support the load estimated by the customer?
Suggested Answer: B

To support 500 simultaneous print jobs per minute, ten UPS servers are necessary. Each UPS server can handle approximately 50 print jobs per minute, and the UPS built-in load balancing policy can manage the distribution of print jobs efficiently among the servers.

Community votes

No votes yet

Question 3 of 128
Scenario: A Citrix Architect is designing an environment for a large company. The company has identified the following user groups and requirements.
✑ Product Managers - Typically, they work from inside the company network but are able to work from home. They need to use a variety of standard productivity and web-based SaaS applications.
✑ Field Sales Engineers - They frequently work with mobile devices and tend to access the environment externally. They need access to sales tools and the front-end of the customer database.
✑ Web Developers - Internal and remote workers who use specialized hardware with a graphics card to handle resource-intensive applications.
Which FlexCast model should the architect assign to Web Developers?
Suggested Answer: D

Web Developers who use specialized hardware with a graphics card for resource-intensive applications will benefit most from the Hosted VDI (Virtual Desktop Infrastructure) model. Hosted VDI is specifically designed to provide high performance and dedicated resources which are crucial for carrying out resource-intensive tasks effectively. It allows full access to a desktop environment and the necessary hardware acceleration, making it the best fit for this user group's requirements.

Community votes

No votes yet

Question 4 of 128
Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

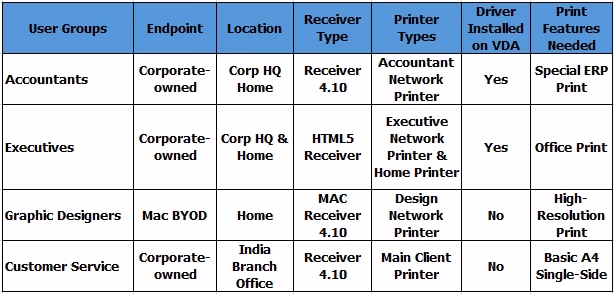

The architect has identified printing requirements for certain user groups and locations, as shown in the Exhibit.
Click the Exhibit button to view the requirements.

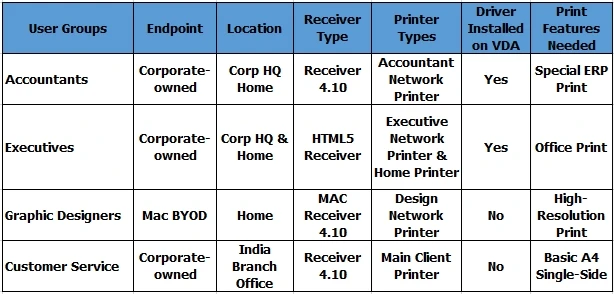

Exam 1Y0-402: Question 4 - Image 1
Currently, no printer settings or policies have been configured, and as such, the environment is using default settings. Universal Print Server will NOT be used in this design.
Which two settings should the architect configure to allow the Executives group to achieve the desired print behavior and to ensure their print jobs are optimally routed? (Choose two.)
Suggested Answer: B, E

To allow the Executives group to achieve the desired print behavior and ensure their print jobs are optimally routed, two key settings should be configured. First, enable the Auto-create PDF Universal Printer policy. This is essential because when using the HTML5 Receiver, local printer redirection is not possible, and the PDF Universal Printer is necessary to facilitate local printing. Second, configure the Session Printers policy. This will ensure that the office network printers are created as session printers, aligning with the requirement for optimized routing of print jobs both at the corporate headquarters and at home. Thus, the correct settings are to enable the Auto-create PDF Universal Printer policy and configure the Session Printers policy.

Community votes

No votes yet

Question 5 of 128
Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The following design requirements have been identified:
✑ External Partner users should be denied access to published resources unless connecting from a corporate laptop running up-to-date antivirus software.
✑ External users and partners authenticate using Two-Factor authentication.
✑ External employees are logged off Citrix Receiver for Web after 10 minutes of inactivity.
✑ Clipboard mapping is enabled for external engineering users.
✑ Once authenticated to a company device, internal users do NOT authenticate a second time to access published apps and desktops.

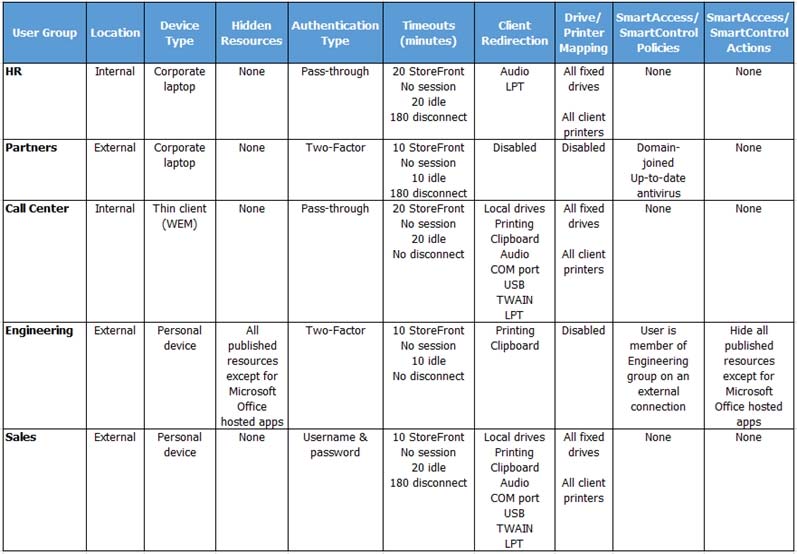

Later in the Assess phase, the architect creates the Access Matrix shown in the Exhibit.
Click the Exhibit button to view the Access Matrix.
Exam 1Y0-402: Question 5 - Image 1
During the quality assurance review, the architect determines that one of the user groups does NOT align with the design requirements.
Which user group should the architect modify to match the design requirements identified?
Suggested Answer: E

Sales users, who are listed as external and use username and password for authentication, should require Two-Factor authentication to align with the design requirement that external users and partners authenticate using Two-Factor authentication.

Community votes

No votes yet
