Cisco 400-201 Exam Questions

Question 6 of 241

Which two options are considered nodes in Low-power Lossy Networks? (Choose two.)

routers

access points

controllers

sensors

servers

Correct Answer: A, D

Question 7 of 241

DRAG DROP -
Drag and drop the subslot of the SIP-800 card that is used on Cisco CRS routers on the left onto the correct PLIM ASIC process on the right.
Select and Place:

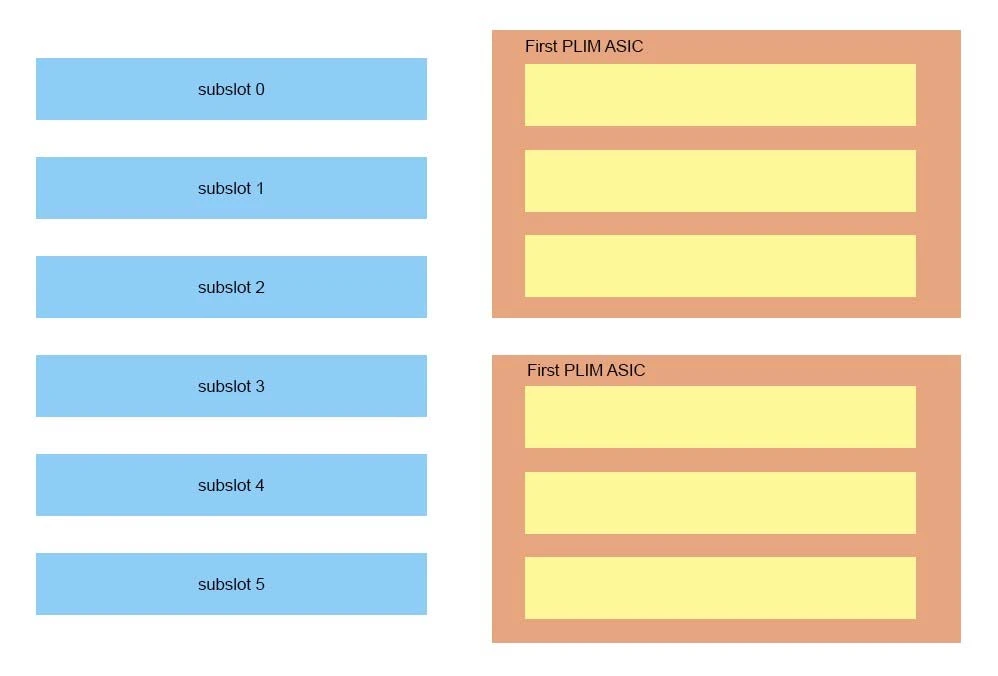

Exam 400-201: Question 7 - Image 1

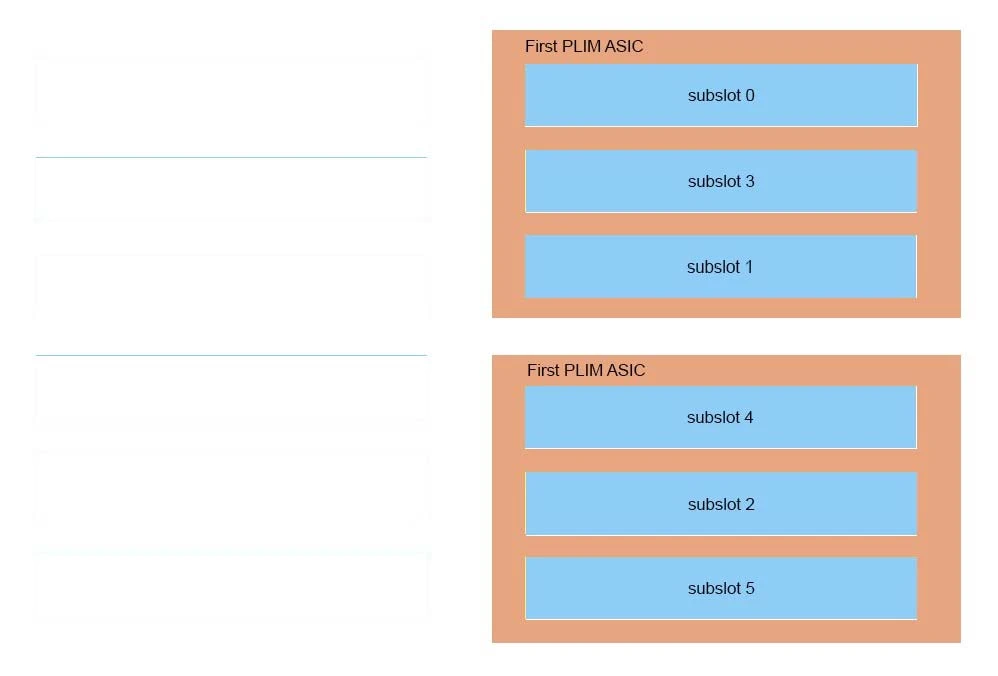

Correct Answer:

Question 8 of 241

A service provider is implementing an nV Edge system with two Cisco ASR 9000 chassis. Each chassis has two RSPs. Which two cabling methods reflect the minimum configuration needed for full synchronization between the two Cisco ASR 9000 chassis? (Choose two.)

Create the IRL connections between the two chassis via Layer 1 connections using the EOBC 10 Gbps ports of the RSPs.

Create the single virtual control plane that connect the two chassis via Layer 3 connections using the 10 Gbps ports of the line cards.

Create the IRL connections between the two chassis via Layer 1 connections using the 10 Gbps ports of the line cards.

Create the single virtual control plane that connect the two RPS between the two chassis via Layer 2 connections.

Create the IRL connections between the two chassis via Layer 3 connections using the ports ofthe line cards.

Create the IRL connections between the two chassis via Layer 3 connections using the EOBC 10 Gbps ports of the RSPs.

Create the single virtual control plane that connect the two chassis via 100 Gbps bundle interfaces.

Correct Answer: C, D

Question 9 of 241

A service provider is using Cisco ME 3400 Series Ethernet Access Switches on the access edge of Metro Ethernet POP. A customer has a requirement to connect a switch to the network and requires the ability to trunk VLANs on the uplink port into the provider network. Which port type should the engineer configure on the switch to meet the requirement while maintaining a secure success edge implementation?

UNI

ENI

NNI

access

Correct Answer: B

Question 10 of 241

DRAG DROP -
Drag and drop the SONET alert types on the left onto the correct severities on the right. Not all options are used.
Select and Place:

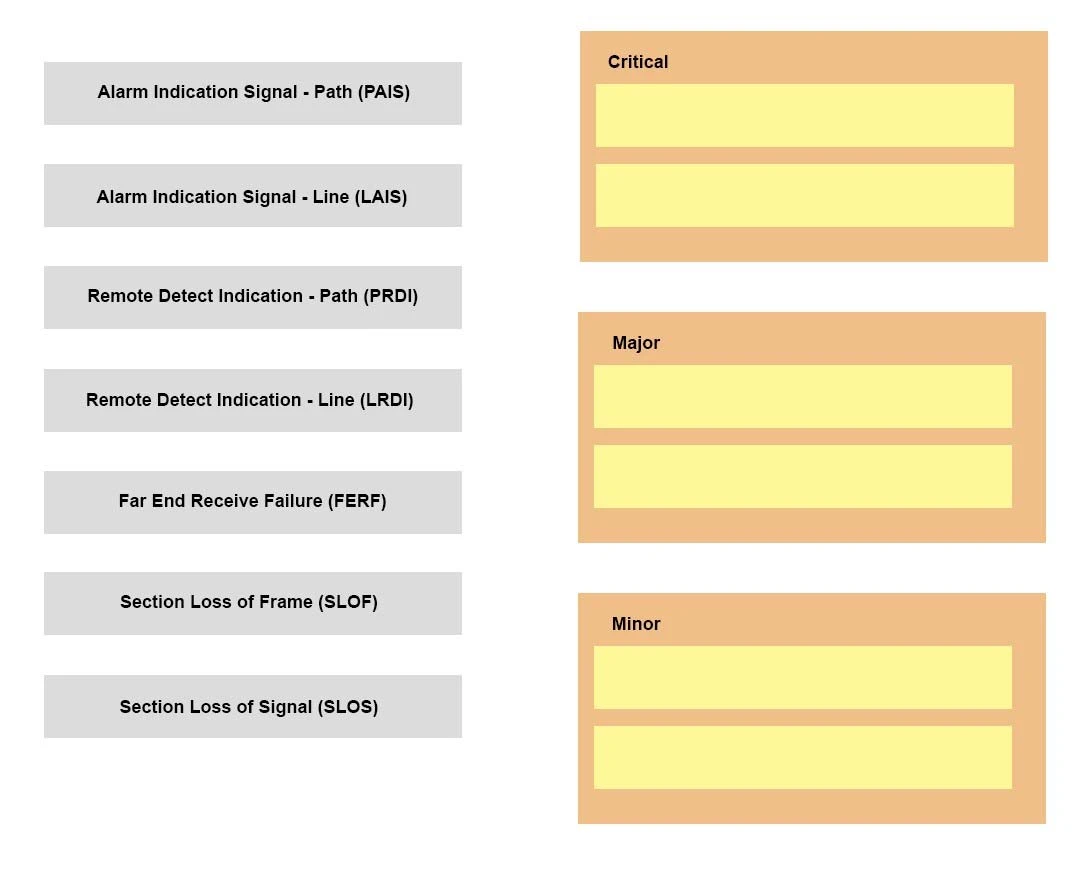

Exam 400-201: Question 10 - Image 1

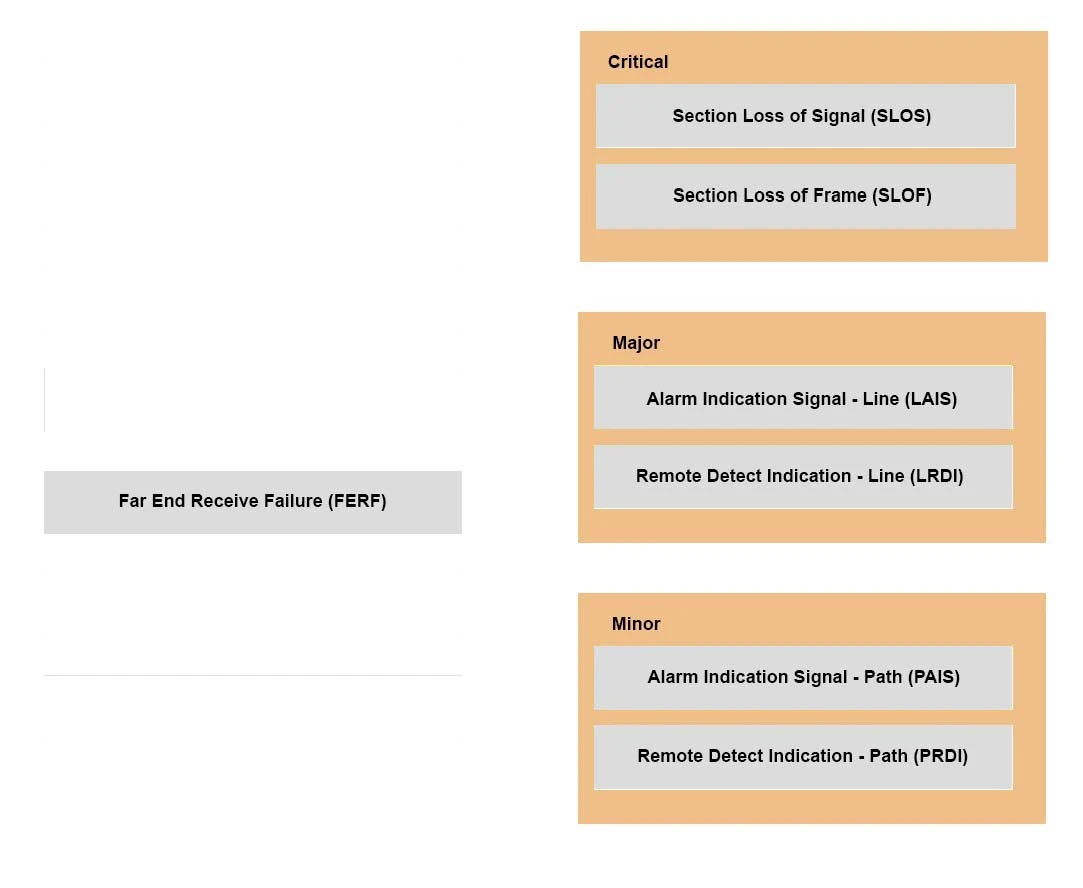

Correct Answer:
