Cisco 400-101 Exam Questions

Question 6 of 1975

Which two mechanisms can be used to eliminate Cisco Express Forwarding polarization? (Choose two.)

alternating cost links

the unique-ID/universal-ID algorithm

Cisco Express Forwarding antipolarization

different hashing inputs at each layer of the network

Correct Answer: B, D

Question 7 of 1975

Which two mechanisms provide Cisco IOS XE Software with control plane and data plane separation? (Choose two.)

Forwarding and Feature Manager

Forwarding Engine Driver

Forwarding Performance Management

Forwarding Information Base

Correct Answer: A, B

Question 8 of 1975

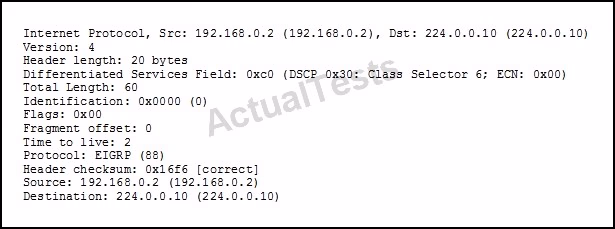

Refer to the exhibit.
Exam 400-101: Question 8 - Image 1

What is the PHB class on this flow?

none

AF21

CS4

Correct Answer: D

Question 9 of 1975

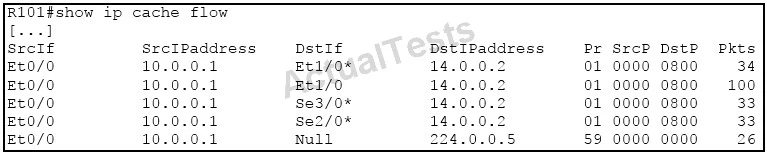

Refer to the exhibit.
Exam 400-101: Question 9 - Image 1

What kind of load balancing is done on this router?

per-packet load balancing

per-flow load balancing

per-label load balancing

star round-robin load balancing

Correct Answer: A

Question 10 of 1975

What is the most efficient way to confirm whether microbursts of traffic are occurring?

Monitor the output traffic rate using the show interface command.

Monitor the output traffic rate using the show controllers command.

Check the CPU utilization of the router.

Sniff the traffic and plot the packet rate over time.

Correct Answer: D
