Question 6 of 620

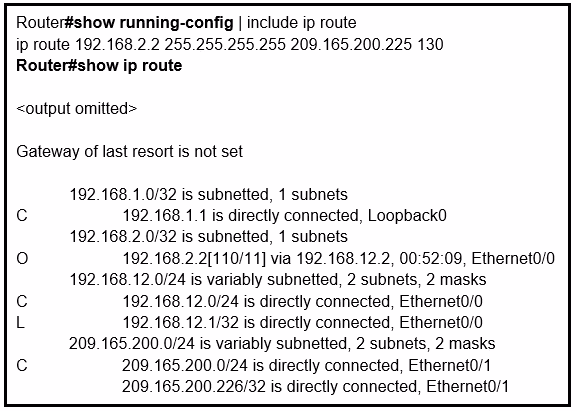

Refer to the exhibit. An engineer configures a static route on a router, but when the engineer checks the route to the destination, a different next hop is chosen.
What is the reason for this?
Exam 300-410: Question 6 - Image 1
Answer

Suggested Answer

The suggested answer is C.

The Administrative Distance (AD) is a measure of the trustworthiness of the source of the routing information. The lower the AD, the more preferred the route. In this scenario, the static route has been configured with an AD of 130, while the OSPF protocol, which is dynamically configured, has an AD of 110. Since 110 is lower than 130, the OSPF route is preferred over the static route. This is why the different next hop is chosen.

Community Votes7 votes
CSuggested
100%
Question 7 of 620

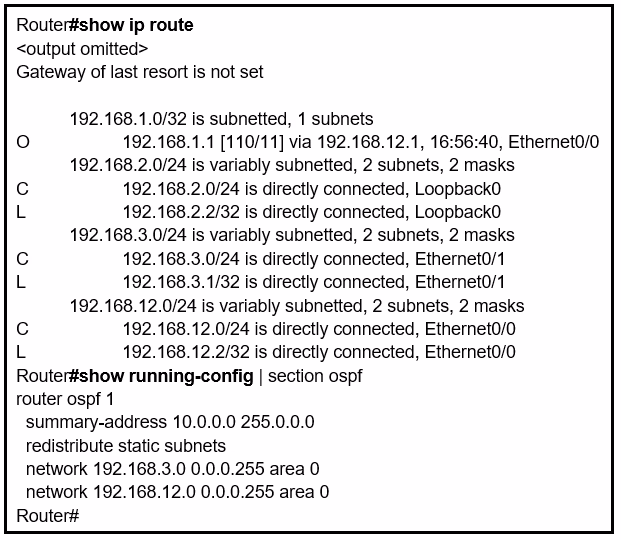

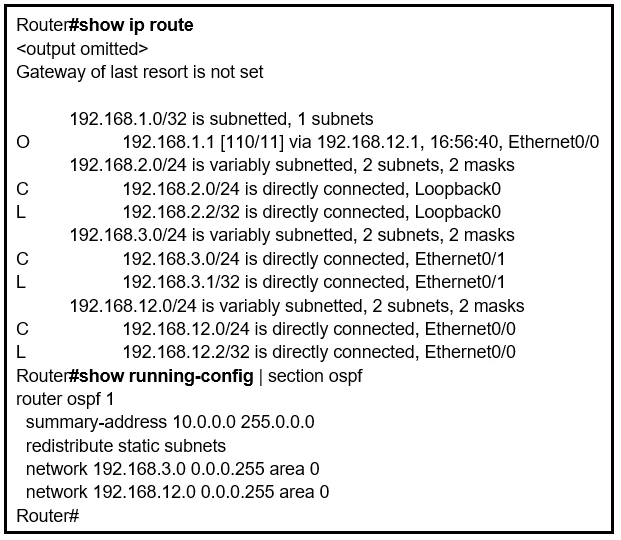

Refer to the exhibit. An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table.
Why is the summary route missing?
Exam 300-410: Question 7 - Image 1
Answer

Suggested Answer

The suggested answer is C.

The summary route is not appearing in the routing table because there are no specific routes within the 10.0.0.0/8 network present in the routing table. OSPF generates a summary route only when there are more specific routes within the summarized range. Since there are no routes for any subnets inside 10.0.0.0/8 in the routing table, the summary route is not generated.

Community Votes12 votes
CSuggested
100%
Question 8 of 620

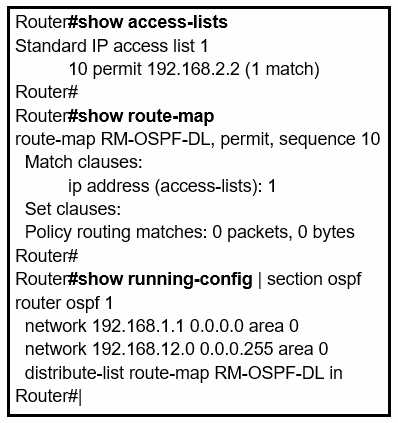

Refer to the exhibit. An engineer is trying to block the route to 192.168.2.2 from the routing table by using the configuration that is shown. The route is still present in the routing table as an OSPF route.
Which action blocks the route?
Exam 300-410: Question 8 - Image 1
Answer

Suggested Answer

The suggested answer is B.

To block the route to 192.168.2.2, it is necessary to change the sequence 10 in the route-map command from permit to deny. The current configuration permits the route as it matches the specified access list and permits the route map sequence. By changing the sequence to deny, any route matching the access list (in this case, 192.168.2.2) will be denied, effectively blocking it from the routing table.

Community Votes66 votes
BSuggested
86%
C
14%
Question 9 of 620
What is a prerequisite for configuring BFD?
Answer

Suggested Answer

The suggested answer is C.

Cisco Express Forwarding (CEF) must be enabled on all participating BFD endpoints. CEF is a high-speed packet forwarding mechanism that BFD relies on to quickly detect link failures. Without CEF, BFD packets would have to be handled by the CPU, which could slow down the detection of failures. Hence, enabling CEF ensures efficient operation of BFD.

Community Votes3 votes
CSuggested
100%
Question 10 of 620
DRAG DROP -

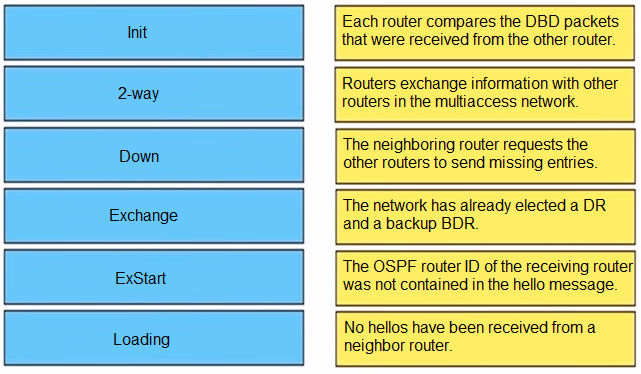

Drag and drop the OSPF adjacency states from the left onto the correct descriptions on the right.
Select and Place:
Exam 300-410: Question 10 - Image 1
Answer

Suggested Answer

Reference:
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13685-13.html Exam 300-410: Question 10 - Image 2
