Avaya 71301X Exam Questions

Question 6 of 50

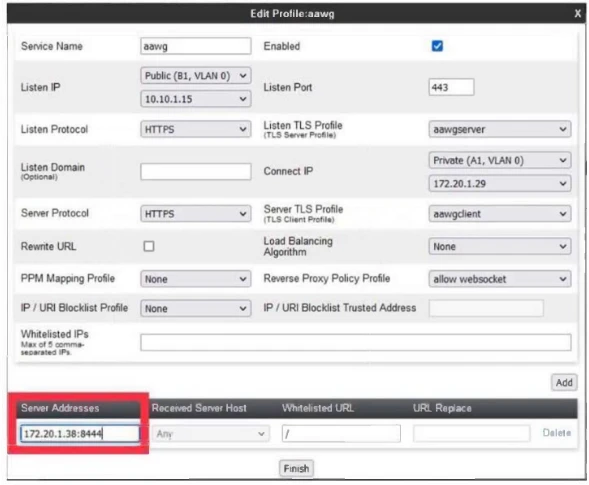

Refer to the exhibit.
When configuring a Reverse Proxy for the Avaya Aura® Web Gateway (AAWG) in the Avaya Session Border Controller for Enterprise (ASBCE), what is the significance of using port 8444 in the Server Address field?

It's the default port used for ICE/STUN/TURN messages on the AAWG.

It is the default listen port on the AAWG used for all WebRTC call signalling.

This port should match the Front-end port for external access on the AAWG so that AAWG sends the media path for external calls through the ASBCE STUN/TURN server.

It's used for remote access to the AAWG web interface.

Correct Answer: C

Question 7 of 50

A user is calling the helpdesk task how the Avaya Spaces Calling extension can be added, tallow calling from their Avaya Spaces session.
How should the helpdesk engineer respond?

Make sure your PC has internet access, use the Google Chrome browser to open the Chrome Web Store, search for the Avaya Spaces Calling extension, and add this extension to the Chrome browser.

Make sure your PC has internet access, use your preferred browser to navigate to www.support.avaya.com, and then find the Avaya Spaces Calling app, download and install it.

Use your preferred browser to navigate to the AAWG web interface, log in with your company credentials, and use the hyperlink at the bottom-right corner of the home page to download and install Avaya Spaces Calling.

Make sure your PC has internet access, and use the Microsoft Store to find, download and install the Avaya Spaces Calling app.

Correct Answer: A

Question 8 of 50

Which two configuration steps must be performed on the Avaya Aura® Communication Manager (CM) for integrating it with the Application Enablement Services (AES), and enabling the TSAPI link? (Choose two.)

Create a CTI link.

Configure Switch Connection.

Create a Signaling Group.

Configure IP Services.

Create a CTI user.

Correct Answer: A, D

Question 9 of 50

On the Avaya Session Border Controller for Enterprise (ASBCE), to connect one Internet Friendly (EdgE) Gateway to Avaya Communication Manager (CM), how many IP Addresses are required?

one Public and two Private IP addresses

one Private and one Public IP addresses

two Public and one Private IP addresses

two Public and two Private IP addresses

Correct Answer: B

Question 10 of 50

Which two statements about the Avaya Session Border Controller for Enterprise (ASBCE) certificate management are true? (Choose two.)

It supports both the Root and Intermediate Certificate Authority (CA) certificates.

It requires a single server identity certificate for each deployed server.

It only supports .crt certificate file types.

It provides an in-built Certificate Signing Request (CSR) generation utility.

It allows using a default server certificate for up tone year after the installation.

Correct Answer: A, D
