Avaya 7004 Exam Questions

Question 6 of 66

The Satellite Link Control feature ensures that the configuration of a call does not include more than one communications satellite trunk. Tandem trunk calls, when connected through more than one communication satellite trunk, are subject to transmission distortion due to propagation.
Which parameters are required to be equipped or configured for Satellite Link Control in the Communication Server 1000?

Network Signaling (NSIG) package must be equipped.Route must be configured with ESN3 signaling.Route must be designated as a satellite route.

Route must be configured with STD or ETN signaling.Route must be designated as a satellite route.

Network Transfer (NXFR) package must be equipped.Route must be configured with ESN2 or ESN3 signalingRoute must be designated as a satellite route.

Network Signaling (NSIG) package must be equipped.Route must be configured with ESN3 or ESN5 signaling.Route must be programmed with a Traveling

Correct Answer: A

Question 7 of 66

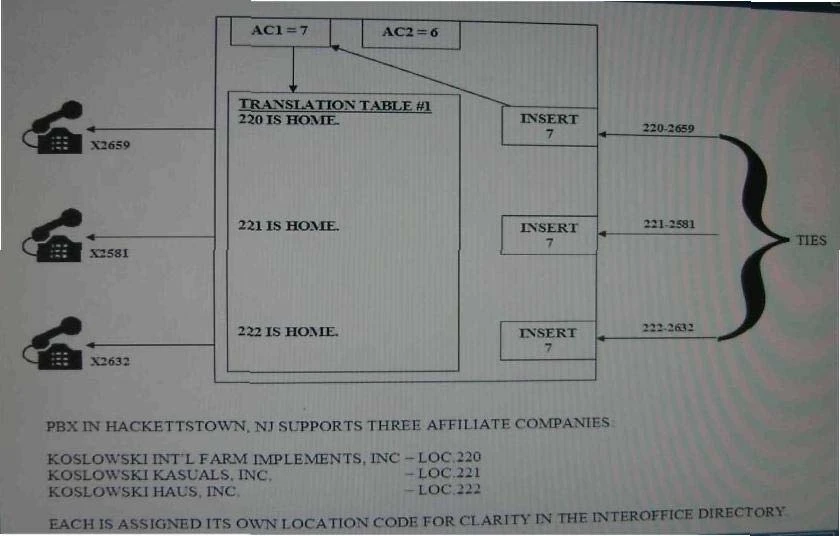

Click the Exhibit button.
Exam 7004: Question 7 - Image 1

Consider a companys dialing plan shown in the exhibit and an example for its requirements:
A station user at the company, with Location Code 221, placed an ESN call, dialing 7-221-2581. This would be an On-Net call and the NARS programming must remove the LOC code and dial the DN internally.
What programming would remove the location code for a call dialed within the originating Communication Server 1000 to a DN on that same Communication
Server 1000?

Each site would have its own Location Code programmed as a Home Location Code (HLOC) under Translation Table #1 in their CS 1000.

The location codes for each site would be programmed under the LOC programming in Translation Table #2 at all locations.

Home NPA Codes (HNPA) for each site would be programmed under Translation Table #1 at each location in their CS 1000.

Each site would have the Location Codes for all sites programmed as Home Location Codes (HLOC) in Translation Table #1 of their CS 1000.

Correct Answer: A

Question 8 of 66

The Directory Number range for a customer dialing plan is 2500-2599.
Which entry indicates the number of digitals of the CDP Dialed Number (NCDP) for this dialing plan?

Correct Answer: A

Question 9 of 66

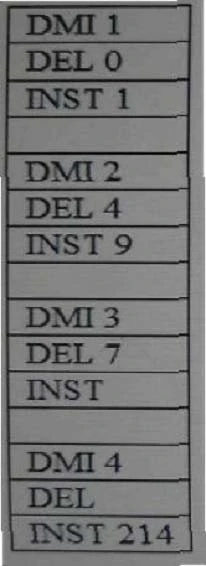

Click the Exhibit button.
Exam 7004: Question 9 - Image 1

The local Central Office required that all calls dialed utilize dialing, however users forget to dial the NPA for local calls. Which DMI entry would be utilized to insert the NPA of 214 when a user dials 9-774-3299?

DMI Table 1

DMI Table 2

DMI Table 3

DMI Table 4

Correct Answer: D

Question 10 of 66

Your customer has a Communication Server 1000 RIs. 7 x system equipped with System Errors and Events Lookup pack 245 that provides the ability to display system messages on screen.
When a system message in received, which procedure should you use to look it up and display it on the screen?

Enter the system error number followed by <cr>For example, bug4080<cr>

Enter bug followed by the system error code and <cr>.For example, bugerr4080<cr>

Enter errcde followed by the system error code and <cr>.For example, errcde bug4080<cr>

Enter err followed by the system error code followed by <cr>.For example, err bug4080<cr>

Correct Answer: B
