Alcatel-Lucent 4A0-101 Exam Questions

Question 6 of 315

Click the exhibit button.

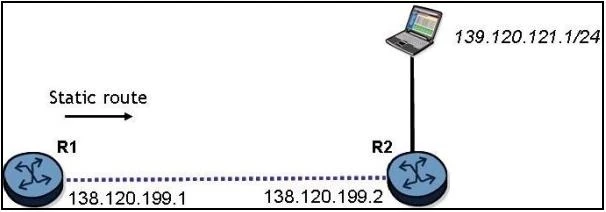

Exam 4A0-101: Question 6 - Image 1

What is the command to configure a static route on the Alcatel-Lucent 7750 SR router R1 to reach the network behind router R2?

A.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.2

B.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.1

C.

configure router static-route 138.120.199.2/24 next-hop 138.120.199.1

D.

configure router static-route 139.120.121.0/24 next-hop 139.120.121.2

Question 7 of 315

There is an IP host with IP address 10.2.3.1. A static route is created, using the "configure router static-route 10.2.3.0/24 next-hop 10.1.2.1" command. What is the correct traceroute command to test this static route on an Alcatel-Lucent 7750 SR?

A.

traceroute 10.2.3.1

B.

traceroute 10.2.3.1 next-hop 10.1.2.1

C.

traceroute next-hop 10.1.2.1

D.

traceroute does not work on the Alcatel-Lucent 7750 SR.

E.

traceroute 10.1.2.1

Question 8 of 315

Click the exhibit button.

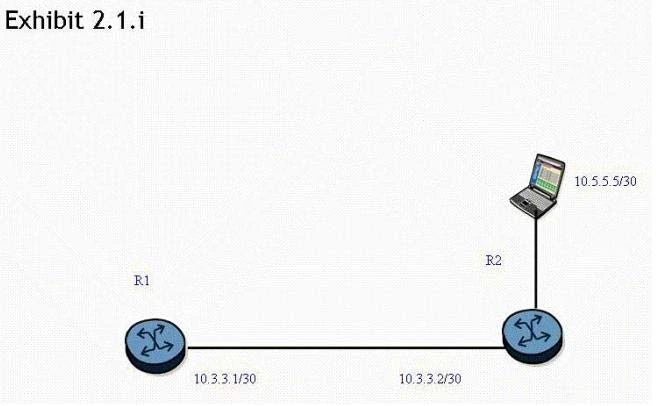

Exam 4A0-101: Question 8 - Image 1

A static route is created on router R1 "using the "static-route 0.0.0.0/0 next-hop 10.3.3.2" command. What command can be used to test the static route on an
Alcatel-Lucent 7750 SR?

A.

ping static 10.5.5.5

B.

ping static 0.0.0.0/0

C.

ping 10.5.5.5

D.

ping 0.0.0.0

Question 9 of 315

What is the default preference value for a static route in the Alcatel-Lucent 7750 SR?

A.

0

B.

5

C.

10

D.

15

Question 10 of 315

Which of the following statements apply to link state protocol behavior? Choose three answers.

A.

Routers broadcast the entire route table to all neighbors.

B.

Information about directly connected links is sent to all neighbors.

C.

An adjacency database is maintained by each router.

D.

The sequence number for an update is incremented as it is flooded from router to router.

E.

The topological database is the same for all routers in a single area.
